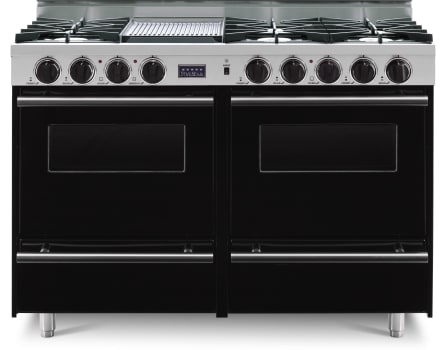

FiveStar TTN5117W - 48 Inch Freestanding Gas Range with 6 Open Burners
FiveStar TTN5117W - 48 Inch Freestanding Gas Range with 6 Open Burners
FiveStar TTN5117W - 48 Inch Freestanding Gas Range with 6 Open Burners
FiveStar TTN5117W - Griddle
+4

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
FiveStar TTN5117W
Authorized
Dealer

FiveStar
TTN5117W
48 Inch Freestanding Gas Range with 6 Open Burners, Dual Oven, 5.84 cu ft Total Oven Capacity, Broiler Drawers, Individual Continuous Grates, Lodge® Reversible Griddle/Grill, Vari-Flame Burners, and CSA Certified: Black

Top Quality Store on Google
quick specs
Sabbath Mode: No
Cooktop: Open Burner
Drawer: Broiler
Width: 48 Inch
Depth: 24 Inch
Height: 36 Inch
Number of Burners: 6
Primary Oven Capacity: 2.92 Cu. Ft.
Continuous Grates: Yes
Convection: No
Self-Cleaning: No
Temperature Probe: No
View more
Color: Black
Black
Black
TTN5117W
$5,255.00
White
White
WTN5117W
$5,255.00
Stainless Steel
Stainless Steel
TTN5117BW
$5,665.00
$5,255.00
MSRP: $6,180.00
You save $925.00
OR
Special Order
Special Order
Special Order items cannot be cancelled - all sales are final and non-refundable. Please note that you will be charged at the time the order is placed. For more information please contact a sales specialist at 800-570-3355.
FREE Delivery Available
You Will Also Need:
4' Gas Appliance Installation Kit
+ $39.99
Have questions? Chat with us!
Product Information
Brand: FiveStar
Model: TTN5117W
MPN: TTN511-7W
Appearance
Fuel Type: Gas
Fuel Subtype: Natural Gas
Style: Freestanding
Color: Black
Stainless Steel Handle: Yes
Cooktop: Open Burner
Cooktop Control Type: Knobs
Oven Control Type: Knobs
Viewing Window: Yes
Double Oven: Yes
Drawer: Broiler
Clock: Yes
Dimensions
Width: 48 Inch
Depth: 24 Inch
Height: 36 Inch
Shabbos Compliance
Sabbath Mode: No
Smart
WiFi: No
Remote Control: No
Remote Monitoring: No
Smart Accessory Required: No
Capacity
Number of Burners: 6
Primary Oven Capacity: 2.92 Cu. Ft.
Secondary Oven Capacity: 2.92 Cu. Ft.
Burner
Burner 1 Output: 14,000
Burner 2 Output: 14,000
Burner 3 Output: 14,000
Burner 4 Output: 14,000 with Vari-Flame
Burner 5 Output: 14,000 with Vari-Flame
Burner 6 Output: 14,000 with Vari-Flame
Gas Cooktop Features
Continuous Grates: Yes
Dishwasher Safe Grates: Yes
Cooktop Accessory: Reversible Grill/Griddle
Oven Features
Digital Temperature Display: No
Timer: No
Delay Bake: No
Convection: No
Proof Mode: No
Self-Cleaning: No
Racks: 2
Temperature Probe: No
Broiler Element Location: Bottom
Broiler Pan Included: Yes
Interior Oven Light: Yes
Removable Door: Yes
Technical Details
Oven BTUs: 18,000
LP Conversion: No
Amps: 5
Voltage: 120 Volts
Are you a Trade Pro? Join Now

Description

48 Inch Freestanding Gas Range with 6 Open Burners
The FiveStar 48" range features an interchangeable Lodge Cast Iron Griddle/Grill and six open burners with individual continuous grates, giving you the tools to simultaneously sauté, simmer and sear. Three burners come with Vari-Flame which allow heat to go from a high of 14,000 BTU all the way down to a slow simmer at 400 BTU on open burner models.

Specifications

Sealed Burner Ratings
Open Burner:
14,000 BTUs
Vari-Flame Center Simmer:
from 400 to 1,050 BTUs
Specifications
Counter Depth Design:
Yes
Griddle Grill Rating:
10,500 BTUs (Nat. Gas and LP)
Total Surface Rating:
94,500 BTUs Nat. Gas, 82,500 BTUs LP
Ventilation Recommendation:
1,200 CFM
Oven Capacity:
19" wide 2.92 cu. ft. Gas Ovens
Drawer Type:
Broiler
Gas Oven/Broiler Burner Rating:
18,000 BTUs (Nat. Gas and LP)
Shipping Weight:
approx. 400 lbs
Electrical Requirements
Voltage:
120V
Amperage:
5 amps

Features

6 Open Burners
  • Can deliver up to 14,000 BTUs (NG) or 12,000 BTUs (LP)
Dual Gas Ovens
  • Each oven has a capacity of 2.92 cu. ft.
5.84 cu ft Total Oven Capacity
  • The moist heat of a gas oven is perfect for roasting or braising chicken.
Broiler Drawers
  • Two broiler drawer located below the oven provides an extra cooking area for toasting and browning food.
Individual Continuous Grates
  • FiveStar continuous grates are designed to allow pots and skillets to slide easily from one burner to another.
Lodge® Reversible Griddle/Grill
  • With FiveStar's reversible griddle/grill from Lodge, you have the ability to create flavorful grilled meats, fish, breakfast basics and more.
Vari-Flame Burners
  • VariFlame burners allow heat to go from a high of 14,000 BTU all the way down to a slow simmer at 400 BTU.
Viewing Window
  • Easily keep track of your cooking through the viewing window.
Product Options
  • Brass Trim available by adding an "S" suffix to model number (TTN532-7BSW).
  • Factory-set LP Gas available by changing 2nd letter of model number to "P".
  • Factory-set High Elevation available. Specify if over 4,000 feet.
