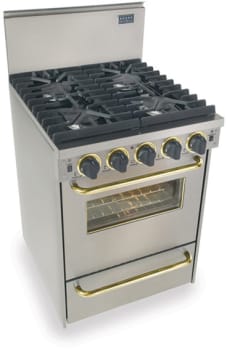

FiveStar TTN4917BSW - Stainless Steel with Brass Trim
FiveStar TTN4917BSW - Stainless Steel with Brass Trim

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
FiveStar TTN4917BSW
Authorized
Dealer

FiveStar TTN4917BSW 24 Inch Pro-Style Natural Gas Range with 4 Sealed Ultra High-Low Burners, 2.92 cu. ft. Convection Oven, Manual Clean and Broiler Oven: Stainless Steel with Brass Package

quick specs
Sabbath Mode: No
Cooktop: Sealed Burner
Drawer: Broiler
Width: 24 Inch
Depth: 24 Inch
Height: 47 Inch
Number of Burners: 4
Primary Oven Capacity: 2.92 Cu. Ft.
Continuous Grates: Yes
Hot Surface Indicator Light: No
Convection: Yes
Self-Cleaning: No
Temperature Probe: No
View more
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!
Product Information
Brand: FiveStar
Model: TTN4917BSW
MPN: TTN-491-7BSW
Appearance
Fuel Type: Gas
Style: Freestanding
Color: Stainless Steel
Stainless Steel Handle: Yes
Cooktop: Sealed Burner
Cooktop Control Type: Knobs
Oven Control Type: Knobs
Viewing Window: Yes
Drawer: Broiler
Clock: No
Dimensions
Width: 24 Inch
Depth: 24 Inch
Height: 47 Inch
Interior Width: 19 Inch
Interior Depth: 19 Inch
Interior Height: 14 Inch
Shabbos Compliance
Sabbath Mode: No
Capacity
Number of Burners: 4
Primary Oven Capacity: 2.92 Cu. Ft.
Burner
Burner 1 Output: 21000
Gas Cooktop Features
Continuous Grates: Yes
Electric Cooktop Features
Hot Surface Indicator Light: No
Oven Features
Digital Temperature Display: No
Timer: No
Delay Bake: No
Convection: Yes
Proof Mode: No
Self-Cleaning: No
Racks: 3
Temperature Probe: No
Broiler Element Location: Bottom
Broiler Pan Included: Yes
Interior Oven Light: Yes
Removable Door: Yes
Technical Details
Oven BTUs: 18,000
LP Conversion: No
Amps: 15
Voltage: 120 Volts
Are you a Trade Pro? Join Now

Description

At FiveStar, their mission is to serve serious home chefs like you. That commitment to the culinary community began in 1935, when Grover Cleveland Brown offered his first cooking products. The tradition carried on through his son, grandson and now his great-grandson, Matthew Brown. Like you, Matthew is passionate about food. And perfection. That's why every FiveStar range is hand-crafted to meet his exacting quality standards right here in America. And every FiveStar feature is designed to ensure you have all of the tools you need to unleash your genius.

Created especially for serious cooks with limited loft or apartment space, the 24" range retains the sleek style and commercial capacity of its much bigger counterparts, including a gas oven with TurboFlow convection and four full-size open Vari-Flame burners and individual continuous grates or four full-sized sealed Ultra High-Low burners with one-piece continuous grates, offering pinpoint adjustability and BTU variability spanning 21,000 BTU (the industry's highest) to 350 BTU (the industry's lowest).

MFG SKU TTN-491-7BSW

Specifications

Capacity
Oven:
2.92 Cu. Ft.
Total:
2.92 Cu. Ft.
Specifications
Sealed Surface Burner Rating:
21,000 BTU
Ultra High-Low Simmer:
350 BTU
Oven/Broiler Burner:
18,000 BTU
Gas Service Line:
1/2"
Electrical Requirements:
120v, 10 Amps
Dimensions and Weights
Overall Width:
24"
Overall Depth:
24"
Overall Height:
47"
Oven Width:
19"
Oven Depth:
19"
Oven Height:
14"
Broiling Area:
12 3/8"w x 16"d
Leg Adjustment:
2" Maximum From 35 7/8" to 37 7/8"
Shipping Weight:
210 Lbs.
Net Weight:
190 Lbs.

Features

  • 24" single-oven and broiler, four burners.
  • All surface sealed burners designed for maximum heat up to 21,000 BTU on natural gas.
  • Extra-heavy, porcelain-covered cast iron burner grates.
  • Large, easy-to-read knobs with push-to-turn safety feature.
  • Oven lights with control panel switch.
  • Commercial strength, four-position adjustable oven racks-three in each convection oven, two in all others.
  • Lift-off oven doors.
  • All-porcelain broiler pan and grill.
  • Gas broiler below each gas oven.
  • Exclusive, pull-out gas broiler tray for easier access.
  • Energy-saving, pilotless electronic ignition with re-ignition on all gas oven and griddle burners.
  • 11" stainless steel backguard for extra wall protection.
  • Designed for zero clearance to cabinets below countertop.
  • Fits standard 24" deep kitchen base cabinets.
  • 4" toe space matches standard kitchen cabinets for unbroken line from cabinet to range.
  • Four heavy-duty adjustable stainless steel leveling legs.
  • Design certified by the American Gas Association for residential use.
  • MFG SKU TTN-491-7BSW
California residents see Prop 65 WARNINGS
