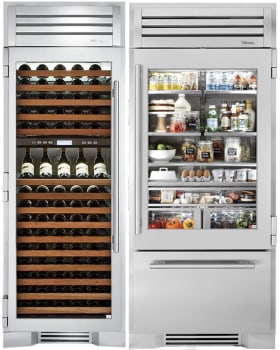

True Residential TRBMREFWCGS361 - True Residential Side-by-Side Bottom Mount Refrigerator Column Set
True Residential TRBMREFWCGS361 - True Residential Side-by-Side Bottom Mount Refrigerator Column Set
True Residential TRBMREFWCGS361 - 36 Inch Bottom Mount Refrigerator Glass Door
True Residential TRBMREFWCGS361 - 30" Dual Zone Wine Column with Stainless Glass Door
+6

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
True Residential TRBMREFWCGS361
Authorized
Dealer

True Residential
TRBMREFWCGS361
Side-by-Side Column Set with 36 Inch Refrigerator and 30 Inch Wine Cooler

Top Quality Store on Google
included items
36 Inch Built-In Bottom Mount Refrigerator (TR36RBFRSGA)
• 17.5 cu.ft. Refrigeration Capacity, 5.1 cu. ft. Freezer Capacity, Intuitive True Precision® Control
30 Inch Built-In Dual Zone Wine Cooler (TR30DZWLSGC)
• 150 Bottle Capacity, 20.6 cu. ft. Capacity, 15 Full-Extension Racks
66 Inch Joining Kit - Stainless Grill, Toe Kick, Anti Condensation Pads (For a 30" & 36" combo) (811073)
Refrigerator Width:
36 Inch
30 Inch
36 Inch
Glass Door:
Yes
Yes
To order or learn more please call us at:
800-570-3355
FREE Delivery Available
You Will Also Need:
6 Foot Stainless Steel Refrigerator Waterline Kit
+ $24.99
Protect Your Purchase
+$1048
- 30% Cash Back! +$1598
Have questions? Chat with us!
Product Information
Brand: True Residential
Model: TR36RBFRSGA
Appearance
Type: Built In
Style: Bottom Freezer
Size: Full Size
Counter Depth: Yes
Glass Door: Yes
Freezer: Yes
Hinge Side: Right
Field Reversible Doors: No
Accepts Custom Panels: No
Color: Stainless Steel
Door Color: Stainless Steel
Column: Yes
Capacity
Refrigerator Capacity: 17.5 Cu. Ft.
Freezer Capacity: 5.1 Cu. Ft.
Total Capacity: 22.6 Cu. Ft.
Dimensions
Width: 36 Inch
Depth: 24 Inch
Height: 84 Inch
Cutout Width: 35 3/4 Inch
Cutout Depth: 24 Inch
Cutout Height: 84 Inch
Shabbos Compliance
Sabbath Mode: No
Smart
WiFi: No
Installation
Flush Installation: Yes
Features
LED Lighting: Yes
Refrigerator Features
Type of Shelves: Glass
No. of Shelves: 6
No. of Fixed Shelves: 1
No. of Adjustable Shelves: 5
Temperature Zones: Dual
Technical Details
Amps: 15
Voltage: 115 Volts
Water
Water Dispenser: No
Settings
Digital Temperature Control: Yes
Ice
Ice Dispenser: No
Ice Maker: Yes
Daily Ice Production: 3 Lbs.
Ice Capacity (lbs.): 5 Lbs.
Are you a Trade Pro? Join Now

Description

36 Inch Built-In Bottom Mount Refrigerator with 22.6 Cu. Ft. Total Capacity
The 36 Inch Refrigerator offers homeowners the freedom to design kitchens that look the way they want and, as importantly, reflect the way they live. With True's ramp-up, showcase interior LED lighting illuminating the interior, the Bottom Mount Refrigerator offers a literal look inside true high-end appliance design. Paired with a 30 Inch Wine Column, or event Double up to make a Side by Side, the 36 Inch Bottom mount Refrigerator means complete control and complete freedom, and for homeowners and designers alike, that means complete luxury.

This built in counter depth refrigerator comes with 17.5 cu. ft. refrigeration capacity, and 5.1 cu. ft. freezer capacity, built-in ice maker, 4 adjustable stainless steel encapsulated glass shelves, and 2 fixed shelves. This refrigerator also features interior LED lighting, Intuitive True Precision Control, and 300 series stainless steel interior and exterior construction.

Specifications

Additional Specifications
Interior:
Stainless Steel
Refrigerator Capacity:
17.5 cu. ft.
Shelves:
6
Bins:
3
Warranty
Cosmetic:
30 Day Limited Warranty
Parts & Labor:
3 Years Limited Warranty
Sealed System - Parts & Labor:
6 Years Limited Warranty
Sealed System - Parts Only:
12 Years
Electrical Specifications
Voltage:
115 V
Frequency:
60 HZ
Circuit Breaker:
15 Amp
Plug:
3-Prong Grounding Type
Dimensions & Weights
Standard Cutout Width:
35 3/4"
Standard Cutout Depth:
24"
Standard Cutout Height:
84"
Flush Cutout Width:
36 1/4"
Flush Cutout Depth:
26"
Flush Cutout Height:
84 1/4"
Width:
36"
Depth:
24"
Height:
84"
Weight:
720 Lbs.

Features

300 Series Stainless Steel Construction
  • Stainless steel interior is antibacterial, hygienic, easy to clean, and does not retain food odors.
  • Beautifully crafted solid stainless steel door with 120° stay-open feature and ergonomically designed, robust, tubular handle.
  • All stainless steel, beautifully crafted proud hinges pass True's rigorous one million door opening test.
  • Professional meets luxury at the perfect intersection in your home kitchen.
Intuitive True Precision® Digital Controls
  • Intuitive True Precision® Control and readout provides digital accuracy and easy operation.
Ramp-up LED lighting
  • Ramp-up, showcase interior LED lighting provides amazing illumination throughout.
Built-in Ice Maker
  • Built-in Ice Maker produces up to 3lbs./day of prism shaped
  • ice with 5 lbs. storage capacity.
Refrigerator Storage Details
  • 4 Adjustable/removable stainless steel encapsulated glass shelves.
  • 1 Adjustable/ removable stainless steel encapsulated
  • glass full-width shelf.
  • 1 Fixed stainless steel encapsulated full-width glass shelf.
  • 1 Full-extension/full-width drawer with 2 removable dividers.
  • 2 Half-width, deep drawers with 2 removable dividers, ideal
  • for produce storage.
Freezer Storage Details
  • 2 Tiered drawers with nested pull-out drawer and top shelf.
California residents see Prop 65 WARNINGS

Reviews

Manuals & Guides

Spec Sheet
Install Guide
Product Information
Brand: True Residential
Model: TR30DZWLSGC
Appearance
Type: Built In
Size: Full Size
Undercounter: No
Door Color: Glass over Stainless Steel
Cabinet Color: Stainless Steel
Hinge Side: Left
Field Reversible Doors: No
Glass Door: Yes
Accepts Custom Panels: No
Compact (Category): No
Dimensions
Width: 30 Inch
Depth: 24 Inch
Height: 84 Inch
Bottle Capacity: 150 Bottles
Total Capacity: 20.6 Cu. Ft.
Shabbos Compliance
Sabbath Mode: No
Certification: None
Requires Shabbos Keeper: No
Smart
WiFi: No
Smart Accessory Required: No
Features
Temperature Zones: Dual
Temperature Control Type: Digital
Wine Racks: 15
Defrost: Automatic
Lock: Optional
Fingerprint Resistant: No
Purpose: Store
LED Lighting: Yes
Temperature Range: 40˚F (4.4˚C) to 65˚F (18.3˚C)
Soft Close: Yes
Technical Details
Energy Star Rated: No
ADA Compliant: No
Approved For Commercial Use: No
Approved for Outdoor Use: No
Drain Required: No
Voltage: 115 Volts
Are you a Trade Pro? Join Now

Description

30 Inch Built-In Dual Zone Wine Cooler with 150 Bottle Capacity
For serious collectors, for the hospitality-minded, and for those who simply love knowing that their favorite varietal is always at hand, the 30" Wine Column is without peer. Boasting intuitive dual-zone True Precision® Control, full-extension smooth-glide racks, and gentle TruLumina® LED lighting, the 30" Wine Column beautifully preserves, protects, and shows off up to 150 of your favorite bottles.

Specifications

Additional Specs
Color:
Stainless Steel
Capacity:
20.6 cu. ft. (150 Bottles)
Racks:
15 full-extension, soft-close wine racks
Temperature Range:
2 independent zones that can be adjusted from 40˚F (4.4˚C) to 65˚F (18.3˚C)
Annual Energy Consumption (Kwh):
400
Energy Star Rated:
No
Electrical Specifications
Voltage:
115/60/1
Amps:
1.2
Power Cord Length (ft.):
9
Dimensions & Weight
Width:
30"
Depth:
24"
Height:
84"
Flush Opening Cutout Width:
30 1/4"
Flush Opening Cutout Depth:
26"
Flush Opening Cutout Height:
84 1/4"
Standard Opening Cutout Width:
29 3/4"
Standard Opening Cutout Depth:
24"
Standard Opening Cutout Height:
84"
Weight:
TBD
Warranty
3 Year Full:
Parts & Labor
6-Year Sealed System:
Parts & Labor
7-12 Year:
Parts Only - sealed system on registered products

Features

Stainless Steel Proud Hinges
  • All stainless steel, beautifully crafted proud hinges pass True's rigorous one million door opening test.
Solid Stainless Steel Door
  • Beautifully crafted solid stainless steel door with 120˚ stay-open feature and ergonomically designed, robust, tubular handle.
Lift-Up Grill
  • Commercially inspired lift-up grill on top of the unit with toe kick that complements the look of True's undercounter units.
TruLumina® LED Lighting
  • Patented TruLumina® LED lighting gently illuminates your product and allows you to choose from 14 different color options with the push of a button.
True Precision® Control
  • Intuitive True Precision® Control and readout provides digital accuracy and easy operation.
Dual Zone
  • 2 independent zones with dual evaporators that can be adjusted from 40˚F (4.4˚C) to 65˚F (18.3˚C).
Full-Extension Racks
  • Full-Extension wine racks with unfinished cherry fronts that cradle your wine and prevent vibration.
Display Shelf
  • Display shelf that proudly displays your collection along with additional storage behind the display.
Door Lock
  • Optional Lock available - must be ordered from the factory.

Additional Features

  • 150 Bottle Capacity
  • 20.6 cu. ft. Capacity
  • Industry-exclusive, 300-series stainless steel interior, and exterior
  • Low-E, double pane, UV tinted glass
  • 15 full-extension, soft-close wine racks
California residents see Prop 65 WARNINGS

Reviews

Manuals & Guides

Energy Guide
Specification Sheet
Install and User Guide
