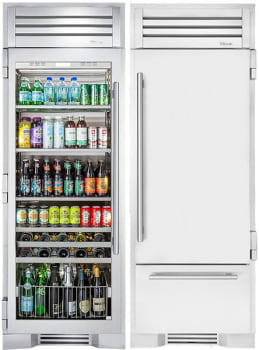

True Residential TRBMREFBEVSS301 - True Residential Side-by-Side Bottom Mount Refrigerator Column Set
True Residential TRBMREFBEVSS301 - True Residential Side-by-Side Bottom Mount Refrigerator Column Set
True Residential TRBMREFBEVSS301 - 30 Inch Bottom Freezer Refrigerator Column in Front View
True Residential TRBMREFBEVSS301 - 30" Beverage Column with Stainless Glass Door
+3

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
True Residential TRBMREFBEVSS301
Authorized
Dealer

True Residential
TRBMREFBEVSS301
Side-by-Side Column Set with 30 Inch Refrigerator and 30 Inch Beverage Center

Top Quality Store on Google
included items
30 Inch Built-In Bottom Mount Refrigerator Column (TR30RBFRSSA)
• 17.7 cu. ft. Total Capacity, Ice Maker, 2 Tiered Freezer Drawers
30 Inch Built-In Beverage Center (TR30BEVLSGC)
• 20.5 cu. ft. Capacity, Forced-Air Refrigeration System, 4 Wire Shelves
60 Inch Installation Kit - Includes Stainless Grill, Toe Kick, and Anti-Condensation Pads (217002)
Refrigerator Width:
30 Inch
30 Inch
36 Inch
Glass Door:
Yes
Yes
To order or learn more please call us at:
800-570-3355
FREE Delivery Available
You Will Also Need:
6 Foot Stainless Steel Refrigerator Waterline Kit
+ $24.99
Protect Your Purchase
+$1048
- 30% Cash Back! +$1598
Have questions? Chat with us!
Product Information
Brand: True Residential
Model: TR30RBFRSSA
Appearance
Type: Built In
Style: Bottom Freezer
Size: Full Size
Counter Depth: Yes
Undercounter: No
Glass Door: No
Hinge Side: Right
Field Reversible Doors: No
Door Finish: Smooth
Accepts Custom Panels: No
Wine Racks (Category): No
Color: Stainless Steel
Door Color: Stainless Steel
Interior Color: Stainless Steel
Freezer Drawers: Double
Door Hinge Covers/Hidden Hinges: No
Leveling Legs: Yes
Column: Yes
Capacity
Refrigerator Capacity: 13.6 Cu. Ft.
Freezer Capacity: 4.1 Cu. Ft.
Total Capacity: 17.7 Cu. Ft.
Dimensions
Width: 30 Inch
Depth: 24 Inch
Height: 84 Inch
Cutout Width: 29 1/2 Inch
Cutout Depth: 24 Inch
Cutout Height: 83 3/4 Inch
Shabbos Compliance
Sabbath Mode: No
Smart
WiFi: No
Smart Accessory Required: No
Installation
Flush Installation: Yes
Features
Stainless Steel Interior: Yes
Usage: Residential
LED Lighting: Yes
Refrigerator Features
Type of Shelves: Glass
No. of Shelves: 3
No. of Fixed Shelves: 1
No. of Adjustable Shelves: 2
No. of Door Bins: 2
Adjustable Door Bins: Yes
Cooling System: Balanced Refrigeration System
Freezer Features
No. of Shelves: 1
No. of Drawers: 2
Technical Details
Energy Star Rated: Yes
Approved for Commercial Use: No
Approved for Medical Use: No
Approved for Outdoor Use: No
Amps: 5
Voltage: 115 Volts
Water
Water Dispenser: No
Hot Water Dispenser: No
Sparkling Water Dispenser: No
Water Filtration: Yes
Settings
Digital Temperature Control: Yes
Convertible Freezer/Refrigerator: No
Ice
Ice Dispenser: No
Ice Maker: Yes
Secondary Ice Maker: No
Daily Ice Production: 3 Lbs.
Ice Capacity (lbs.): 5 Lbs.
Are you a Trade Pro? Join Now

Description

30 Inch Bottom Freezer Refrigerator Column with 17.7 cu. ft. Total Capacity
The 30-inch refrigerator offers a customizable kitchen design and showcases high-end appliance craftsmanship with True's interior LED lighting. Paired with a 30 30-inch wine Column or doubled for a Side-by-side setup, it provides complete control and luxury for homeowners and designers. This built-in counter-depth refrigerator features 13.6 cu. ft. refrigeration capacity, a built-in ice maker, adjustable stainless steel shelves, and True Precision Control, all in sleek 300 series stainless steel construction.

Specifications

Capacity
Total Capacity (cu. ft.):
17.7
Capacity (cu. ft.) - Refrigerator:
13.6
Capacity (cu. ft.) - Freezer:
4.1
Details
Number of Shelves and Type:
2 adjustable/removable half-width glass shelves, 1 adjustable/removable full-width glass shelf, 1 fixed full-width glass shelf
Number of Drawers:
2 full extension full-width drawers with 2 removable dividers
Number of Freezer Drawers:
2 tiered drawers with nested pull-out drawers and top shelf
Temperature. Range - Refrigerator:
33˚F - 42 ˚F
Temperature. Range - Freezer:
-4˚F - 4˚F
Flow Rate (gpm/lpm):
0.5 / 1.89
Operating Pressure psi (kPa):
30 (207) - 100 (689)
Incoming Water Temperature:
33 - 100˚F (0.6 - 38˚C)
Annual Energy Consumption (kwh):
535
Refrigerant Type:
r600a
Power Cord Length (ft.):
9
Energy Star Rated:
Yes
Water Supply:
¼" O.D. braided stainless steel or PEX tubing (¼" O.D. lines and fittings not included). Note: Copper line is not recommended.
Electrical Specifications
Voltage:
115/60/1
Amps:
1.8
Dimensions & Weight
Width:
30"
Depth:
24"
Height:
84"
Cutout Width Flush Opening:
30 1/4"
Cutout Depth Flush Opening:
26"
Cutout Height Flush Opening:
84 1/4"
Cutout Width Standard Opening:
29 1/2"
Cutout Depth Standard Opening:
24"
Cutout Height Standard Opening:
83 3/4"
Weight:
570 lbs
Warranty
Parts & Labor:
3 year full
Parts & Labor:
6 year sealed system
Parts Only - sealed system on registered products:
7-12 year

Features

17.7 cu. ft. Total Capacity
  • Spacious interior providing ample room for storing groceries and essentials.
Built-in Ice Maker
  • Produces up to 3 lbs./day of prism-shaped ice with 5 lbs. storage capacity.
  • Enjoy the convenience of fresh ice cubes readily available without the need for separate ice trays.
2 Tiered Drawers
  • Organize your food items efficiently with multiple drawer levels for easy access and segregation.
Balanced Forced-Air Refrigeration System
  • Enables proper airflow and even temperature throughout to keep food fresh.
2 Adjustable/Removable Door Bins
  • Customize your storage space to accommodate bottles, jars, and condiments of various sizes.
2 Adjustable/Removable Glass Shelves
  • Flexible shelving options allow for hassle-free arrangement of items, adapting to your changing needs.
1 Fixed Glass Shelf
  • Provides stable support for heavier items while maximizing storage capacity.
R600a
  • Environmentally friendly, R600a hydrocarbon refrigerant that improves performance and efficiency while ensuring quiet operation.
Interior LED Lighting
  • Ramp-up, showcase interior LED lighting provides amazing illumination throughout.
Dual Evaporator and Dual Compressor
  • Enable dedicated cooling systems for each zone.

Additional Features

  • Industry-exclusive, 300-series stainless steel interior and exterior.
  • All stainless steel, beautifully crafted proud hinges pass True's rigorous one million door opening test.
  • 120˚ stay-open feature and ergonomically designed, robust, tubular handles.
  • Commercially inspired lift-up grill on top of the unit with toe kick that complements the look of True's undercounter units.
  • Intuitive True Precision® Control and readout provides digital accuracy and easy operation.
  • Energy efficient, Low-E", double pane thermal glass door.
California residents see Prop 65 WARNINGS

Reviews

Manuals & Guides

Specification Sheet
Install / User Guide
Energy Guide
Product Information
Brand: True Residential
Model: TR30BEVLSGC
Appearance
Type: Built In
Size: Full Size
Door Color: Glass over Stainless Steel
Cabinet Color: Stainless Steel
Undercounter: No
Hinge Side: Left
Field Reversible Doors: No
Glass Door: Yes
Accepts Custom Panels: No
Dimensions
Width: 30 Inch
Depth: 24 Inch
Height: 84 Inch
Total Capacity: 20.5 Cu. Ft.
Shabbos Compliance
Sabbath Mode: No
Certification: None
Requires Shabbos Keeper: No
Features
Temperature Control Type: Touchpad
Wine Storage: Yes
Wine Racks: 2
Shelves: 4
Defrost: Automatic
Lock: Optional
Fingerprint Resistant: No
Soft Close: Yes
WiFi Connected: No
LED Lighting: Yes
Technical Details
Energy Star Rated: No
ADA Compliant: No
Approved For Commercial Use: No
Approved for Outdoor Use: No
Drain Required: No
Voltage: 115 Volts
Are you a Trade Pro? Join Now

Description

30 Inch Built-In Beverage Center with 20.5 cu. ft. Capacity
The 30" Beverage Refrigerator Column offers homeowners the freedom to design kitchens that look the way they want and, as importantly, reflect the way they live. Paired with a 30" Freezer, a 30" Wine Column, or even with one of our side-by-sides, the 30" Beverage Refrigerator Column means complete control and complete freedom, and for homeowners and designers alike, that means complete luxury.

Specifications

Additional Specs
Color:
Stainless Steel
Capacity:
20.5 cu. ft.
Shelves:
3 adjustable/removable electropolished stainless steel wire shelves; 1 fixed electropolished stainless steel wire shelf
Racks:
2 full-extension, soft-close wine racks
Bin:
1 pull-out stainless steel wire wine bin
Temperature Range:
33˚F - 42˚F
Annual Energy Consumption (Kwh):
307
Energy Star Rated:
No
Electrical Specifications
Voltage:
115/60/1
Amps:
2
Power Cord Length (ft.):
9
Dimensions & Weight
Width:
30"
Depth:
24"
Height:
84"
Cutout Flush Opening Width:
30 1/4"
Cutout Flush Opening Depth:
26"
Cutout Flush Opening Height:
84 1/4"
Cutout Standard Opening Width:
29 3/4"
Cutout Standard Opening Depth:
24"
Cutout Standard Opening Height:
84"
Weight:
545 lbs
Warranty
3 Year Full:
Parts & Labor
6-Year Sealed System:
Parts & Labor
7-12 Year:
Parts Only - sealed system on registered products

Features

Forced-Air Refrigeration System
  • Balanced, forced-air refrigeration system enables proper airflow and even temperature throughout to keep food fresh.
Proud Hinges
  • All stainless steel, beautifully crafted proud hinges pass True's rigorous one million door opening test.
Solid Stainless Steel Door
  • Beautifully crafted solid stainless steel door with 120˚ stay-open feature and ergonomically designed, robust, tubular handle.
Lift-Up Grill
  • Commercially inspired lift-up grill on top of the unit with toe kick that complements the look of True's undercounter units.
LED Lighting
  • Ramp-up, showcase interior LED lighting provides amazing illumination throughout.
Digital Control
  • Intuitive True Precision® Control and readout provides digital accuracy and easy operation.
Shelving
  • To accommodate a variety of bottle shapes and sizes.
Door Lock
  • Optional Lock available - must be ordered from the factory.

Additional Features

  • 20.5 cu. ft. Capacity
  • Industry-exclusive, 300-series stainless steel interior, and exterior
  • Low-E, double pane, UV tinted glass
  • 3 adjustable/removable electropolished stainless steel wire shelves
  • 1 fixed electropolished stainless steel wire shelf
  • 2 full-extension, soft-close wine racks
  • 1 pull-out stainless steel wire wine bin
  • Temperature Range 33˚F - 42˚F
