FiveStar TPN6377BSW - Stainless Steel with Brass Trim

Authorized

Dealer

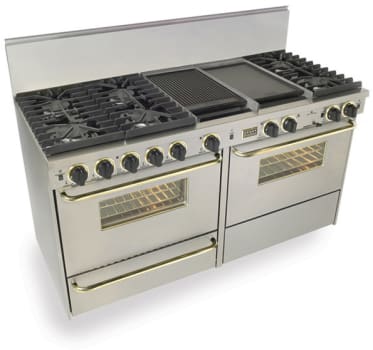

FiveStar TPN6377BSW 60 Inch Freestanding Professional Dual Fuel Range with 6 Sealed Burners, Double Oven, 7.38 Cu. Ft. Total Capacity, Broiler Drawer, Continuous Grates, Self Clean, and Two Lodge® Cast Iron Griddle/Grills: Stainless Steel with Brass Package

Be the first to write a review

Top Quality Store on Google

quick specs

Sabbath Mode: No

Fingerprint Resistant: No

Cooktop: Sealed Burner

Drawer: Broiler

Width: 60 Inch

Depth: 24 Inch

Height: 36 Inch

Number of Burners: 6

Primary Oven Capacity: 3.69 Cu. Ft.

Continuous Grates: Yes

Convection: Yes

Self-Cleaning: Yes

Steam Clean: No

Glide Rack(s): Yes

Temperature Probe: No

NO LONGER AVAILABLE
Try This Instead

Have questions? Chat with us!

Product Information

Brand: FiveStar

Model: TPN6377BSW

MPN: TPN-637-7BSW

Appearance

Fuel Type: Dual Fuel

Fuel Subtype: Liquid Propane

Style: Freestanding

Color: Stainless Steel

Fingerprint Resistant: No

Stainless Steel Handle: Yes

Cooktop: Sealed Burner

Cooktop Control Type: Knobs

Oven Control Type: Knobs

Viewing Window: Yes

Double Oven: Yes

Drawer: Broiler

Clock: No

Dimensions

Width: 60 Inch

Depth: 24 Inch

Height: 36 Inch

Interior Width: 24 Inch

Interior Depth: 19 Inch

Interior Height: 14 Inch

Shabbos Compliance

Sabbath Mode: No

Smart

WiFi: No

Bluetooth: No

Smart Accessory Required: No

Capacity

Number of Burners: 6

Primary Oven Capacity: 3.69 Cu. Ft.

Secondary Oven Capacity: 3.69 Cu. Ft.

Burner

Simmer Burner: Yes

Power Burner: Yes

Burner 1 Output: 18,900 BTU (Front Left)

Burner 2 Output: 18,900 BTU (Back Left)

Burner 3 Output: 18,900 BTU (Back Right)

Burner 4 Output: 18,900 BTU (Front Right)

Burner 5 Output: 18,900 BTU (Middle Front Left)

Burner 6 Output: 18,900 BTU (Middle Back Left)

Burner 7 Output: 10,500 BTU (Griddle/Grill)

Gas Cooktop Features

Continuous Grates: Yes

Dishwasher Safe Grates: No

Cooktop Accessory: Grill & Griddle

Grill: Yes

Griddle: Yes

French Top: No

Oven Features

Digital Temperature Display: No

Timer: No

Delay Bake: No

Fast Preheat: No

Convection: Yes

Proof Mode: No

Self-Cleaning: Yes

Self-Cleaning Type: High Heat

Steam Clean: No

Racks: 5

Glide Rack(s): Yes

Temperature Probe: No

Broiler Element Location: Top

Broiler Pan Included: Yes

Interior Oven Light: Yes

Removable Door: Yes

Technical Details

ADA Compliant: No

Oven BTUs: 18,000

LP Conversion: No

Voltage: 240 Volts

Description
Specifications
Features
Reviews

Description

60 Inch Freestanding Professional Dual Fuel Range with 6 Sealed Burners
With two interchangeable Lodge Cast Iron Griddle/Grills, six burners, and full-size, dual fuel ovens, The FiveStar 60 is the ultimate in professional performance, versatility, and style. When you're hosting a crowd, smart options like TurboFlow convection and easy-to-clean features help ensure all your dishes from flaky hor d'oeuvres to delicious desserts get to the table at just the right time - and the right temperature.

Specifications

Capacity

Each Oven:

3.69 Cu. Ft.

Total:

7.38 Cu. Ft.

Specifications

Sealed Surface Burner Rating:

18,900 BTU

Ultra High-Low Simmer:

350 BTU

Oven/Broiler Burner:

18,000 BTU

Griddle Burner:

10,500 BTU

Gas Service Line:

1/2"

Electrical Requirements:

120/240v, 35 Amps.

Electric Oven:

2,600 Watt Bake Element

Electric Broiler:

3,000 Watt Waist-High Broil Element

Dimensions

Overall Width:

60"

Overall Depth:

24"

Overall Height:

47"

Each Oven Width:

24"

Each Oven Depth:

19"

Each OVen Height:

14"

Broiling Area:

12 3/8"w x 16"d

Leg Adjustment:

2" Maximum From 35 7/8" to 37 7/8"

Shipping Weight:

510 Lbs.

Net Weight:

450 Lbs.

Features

60" side-by-side double-oven has two broilers, six burners, griddle, and barbecue grill.

All surface sealed burners designed for maximum heat up to 18,900 BTU on liquid propane gas.

Extra-heavy, porcelain-covered cast iron burner grates.

Large, easy-to-read knobs with push-to-turn safety feature.

Large, commercial-type griddle thermostatically controlled for a variety of heat settings.

Porcelain grease well for griddle lifts out for easy cleanup (griddle models only).

Stainless steel griddle cover/work surface (griddle models only). Cover also fits Barbecue grill.

Oven lights with control panel switch.

Commercial strength, four-position adjustable oven racks-three in each convection oven, two in all others.

Lift-off oven doors.

Electric waist-high broiler in dual-fuel models.

All-porcelain broiler pan and grill.

Gas broiler below each gas oven.

Exclusive, pull-out gas broiler tray for easier access.

Energy-saving, pilotless electronic ignition with re-ignition on all gas oven and griddle burners.

11" stainless steel backguard for extra wall protection.

Designed for zero clearance to cabinets below countertop.

Fits standard 24" deep kitchen base cabinets.

4" toe space matches standard kitchen cabinets for unbroken line from cabinet to range.

Four heavy-duty adjustable stainless steel leveling legs.

Design certified by the American Gas Association for residential use.

Deluxe Chrome Knob Bezels.

MFG SKU TPN-637-7BSW
