Quick Specs

Product Information
Brand: FiveStar
Model: TPN3257SW
MPN: TPN-325-7SW
Appearance
Fuel Type: Dual Fuel
Style: Freestanding
Color: Black
Cooktop: Open Burner
Continuous Grates: Yes
Stainless Steel Handle: Yes
Viewing Window: Yes
Clock: No
Dimensions
Width: 36 Inch
Depth: 24 Inch
Height: 47 Inch
Interior Width: 24 Inch
Interior Depth: 19 Inch
Interior Height: 14 Inch
Burner Output
Set 1 QTY: 4
Set 1 Output: 12000
Cooktop Features
Burners / Elements: 4
Cooktop Control Type: Knobs
Downdraft Ventilation: No
Modules Required: No
Oven Features
Primary Oven Capacity: 3.69 Cu. Ft.
Oven Control Type: Knobs
Digital Temperature Display: No
Timer: No
Convection: Yes
Self-Cleaning: Yes
Delay Bake: No
Proofing: No
Sabbath Mode: No
Broiler Element Location: Top
Temperature Probe: No
Interior Oven Light: Yes
Racks: 3
Removable Door: Yes
Technical Details
Ignition Type: Electronic
Oven Wattage: 3000
LP Conversion: No
Amps: 40
Voltage: 240/208 Volts

Are You a
Builder?

Contact us for
special pricing & volume discounts
Get Quote
Price:
$5,876.00
& FREE Nationwide Delivery

Special Order

Image Disclaimer

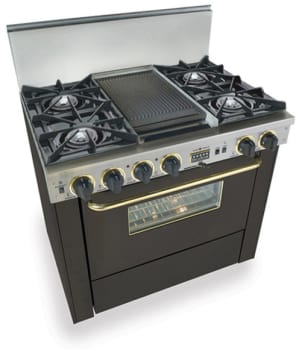

FiveStar TPN3257SW

36 Inch Pro-Style Dual-Fuel LP Gas Range
36 Inch Pro-Style Dual-Fuel LP Gas Range with 4 Open Burners, Vari-Flame Simmer on Front Burners, 3.69 cu. ft. Convection Oven, Self-Cleaning and Double Sided Grill/Griddle: Black with Brass Package
Additional Options
Add
36 Inch Backguard with 4 Inch Height BKG036 preview + $217.00
Add
Continuous Grate Kit (4/Kit) GRT036 + $108.00
Add
36 Inch Range Rear Island Trim Kit RBT036 + $260.00
Our Recommendations
Add
$442.00

Quick Specs

Product Information
Brand: FiveStar
Model: TPN3257SW
MPN: TPN-325-7SW
Appearance
Fuel Type: Dual Fuel
Style: Freestanding
Color: Black
Cooktop: Open Burner
Continuous Grates: Yes
Stainless Steel Handle: Yes
Viewing Window: Yes
Clock: No
Dimensions
Width: 36 Inch
Depth: 24 Inch
Height: 47 Inch
Interior Width: 24 Inch
Interior Depth: 19 Inch
Interior Height: 14 Inch
Burner Output
Set 1 QTY: 4
Set 1 Output: 12000
Cooktop Features
Burners / Elements: 4
Cooktop Control Type: Knobs
Downdraft Ventilation: No
Modules Required: No
Oven Features
Primary Oven Capacity: 3.69 Cu. Ft.
Oven Control Type: Knobs
Digital Temperature Display: No
Timer: No
Convection: Yes
Self-Cleaning: Yes
Delay Bake: No
Proofing: No
Sabbath Mode: No
Broiler Element Location: Top
Temperature Probe: No
Interior Oven Light: Yes
Racks: 3
Removable Door: Yes
Technical Details
Ignition Type: Electronic
Oven Wattage: 3000
LP Conversion: No
Amps: 40
Voltage: 240/208 Volts

Are You a
Builder?

Contact us for
special pricing & volume discounts
Get Quote
  • Description
  • Specifications
  • Features
  • Info & Guides
  • Reviews

Description

At FiveStar, their mission is to serve serious home chefs like you. That commitment to the culinary community began in 1935, when Grover Cleveland Brown offered his first cooking products. The tradition carried on through his son, grandson and now his great-grandson, Matthew Brown. Like you, Matthew is passionate about food. And perfection. That's why every FiveStar range is hand-crafted to meet his exacting quality standards right here in America. And every FiveStar feature is designed to ensure you have all of the tools you need to unleash your genius.

A full-size gas or electric oven with optional TurboFlow convection and four sealed Ultra High-Low burners with one-piece continuous grates or two open Vari-Flame burners with individual continuous grates give the FiveStar 36" range the same power, capacity and the versatility as its larger counterparts. While six burners are available, the standard four-burner option takes cooktop utility to the max with a unique interchangeable Lodge Cast Iron Griddle/Grill, giving you the ability to create flavorful grilled meats, fish, breakfast basics and more.

MFG SKU TPN-325-7SW

Specifications

Capacity
Oven:
3.69 Cu. Ft.
Total:
3.69 Cu. Ft.
Specifications
Open Surface Burner Rating:
Natural 14,000 BTU/Propane 12,000 BTU
Vari-Flame Center Simmer:
400 - 1,050 BTU
Griddle Burner:
10,500 BTU
Gas Service Line:
1/2"
Electrical Requirements:
120/240v, 35 Amps.
Electric Oven:
2,600 Watt Bake Element
Electric Broiler:
3,000 Watt Waist-High Broil Element
Dimensions and Weights
Overall Width:
36"
Overall Depth:
24"
Overall Height:
47"
Oven Width:
24"
Oven Depth:
19"
Oven Height:
14"
Broiling Area:
12 3/8"w x 16"d
Leg Adjustment:
2" Maximum From 35 7/8" to 37 7/8"
Shipping Weight:
290 Lbs.
Net Weight:
205 Lbs.

Features

  • 36" single-oven and broiler, four burners and griddle.
  • All surface burners designed for maximum heat up to 12,000 BTU on propane gas.
  • Exclusive Vari-Flame feature on some front burners for extra-low simmer-from 400 to 1,050 BTU (open burner models).
  • Lift-out stainless steel surface burners (open burner models).
  • Individual porcelain drip pans under each burner are dishwasher safe for easy cleaning (open burner models).
  • Extra-heavy, porcelain-covered cast iron burner grates.
  • Large, easy-to-read knobs with push-to-turn safety feature.
  • Large, commercial-type griddle thermostatically controlled for a variety of heat settings.
  • Porcelain grease well for griddle lifts out for easy cleanup (griddle models only).
  • Stainless steel griddle cover/work surface (griddle models only). Cover also fits Barbecue grill.
  • Oven lights with control panel switch.
  • Commercial strength, four-position adjustable oven racks-three in each convection oven, two in all others.
  • Lift-off oven doors.
  • Electric waist-high broiler in dual-fuel models.
  • All-porcelain broiler pan and grill.
  • Energy-saving, pilotless electronic ignition with re-ignition on all gas oven and griddle burners.
  • 11" stainless steel backguard for extra wall protection.
  • Designed for zero clearance to cabinets below countertop.
  • Fits standard 24" deep kitchen base cabinets.
  • 4" toe space matches standard kitchen cabinets for unbroken line from cabinet to range.
  • Four heavy-duty adjustable stainless steel leveling legs.
  • Design certified by the American Gas Association for residential use.
  • Deluxe Chrome Knob Bezels.
  • MFG SKU TPN-325-7SW
