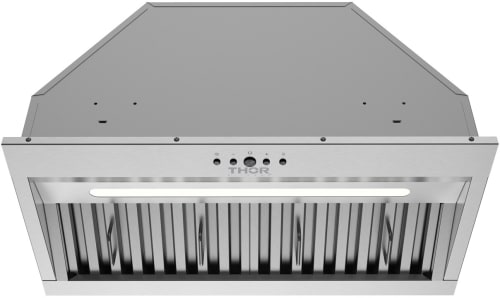

Thor Kitchen TLH3415 - 34 Inch Liner Hood
Thor Kitchen TLH3415 - 34 Inch Liner Hood
Thor Kitchen TLH3415 - 34 Inch Liner Hood
Thor Kitchen TLH3415 - 34 Inch Liner Hood
+7

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Thor Kitchen TLH3415
Authorized
Dealer

Thor Kitchen
TLH3415
34 Inch Insert Liner Range Hood with 350 CFM, 3-Speed Fan, LED Lighting, Dishwasher-Safe Baffle Filters, and Convertible Venting

Top Quality Store on Google
quick specs
Style: Standard Hood
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Width: 33 15/16 Inch
Depth: 14 15/16 Inch
Height: 15 1/4 Inch
WiFi: No
CFM: 350 CFM
Permanent Air Flow Reduction: Yes
Noise Level: 57 Sones
Duct Size: 5 7/8 Inch
Number of Fan Speeds: 3
Dishwasher Safe Filters: Yes
View more
Hurry! This deal ends in:
$479.00
MSRP: $799.00
You save $320.00
OR
Have questions? Chat with us!
Product Information
Brand: Thor Kitchen
Model: TLH3415
Appearance
Style: Standard Hood
Type: Insert Liner
Color: Stainless Steel
Fingerprint Resistant: No
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Dimensions
Width: 33 15/16 Inch
Depth: 14 15/16 Inch
Height: 15 1/4 Inch
Smart
WiFi: No
Capacity
CFM: 350 CFM
Permanent Air Flow Reduction: Yes
Noise Level: 57 Sones
Duct Size: 5 7/8 Inch
Features
Number of Fan Speeds: 3
Filter Type: Baffle
Dishwasher Safe Filters: Yes
Technical Details
ADA Compliant: No
Energy Star Rated: No
Amps: 15
Voltage: 120 Volts
Approved for Outdoor Use: No
Are you a Trade Pro? Join Now

Description

34 Inch Insert Liner Range Hood with 350 CFM & 3-Speed Fan
Built for larger custom installations, the Thor 34-inch liner hood combines powerful ventilation with a clean, integrated look. Its 350 CFM motor and three-speed fan efficiently remove smoke and odors, while LED lighting brightens your cooking area. With durable stainless steel construction and dishwasher-safe filters, it delivers performance and convenience in one streamlined design.

Specifications

Product Overview
Product Type:
34 Inch Liner Hood
Model Number:
TLH3415
Mounting Type:
Insert
Finish:
Stainless Steel
Performance
CFM Range:
187 / 280 / 350
Number Of Speeds:
3
Noise Level (dB):
47 / 51 / 57
Vent Type:
Convertible
Filters & Lighting
Filter Type:
Baffle
Number Of Filters:
3
Lighting:
1 x 6W LED
Controls
Control Type:
Button
Delay Shutoff:
Yes (5 Minutes)
Technical Details
Voltage:
120V
Frequency:
60Hz
Amperage:
15A
Power Consumption:
196W
Plug Type:
US 3-Prong
Cord Length:
35-3/8”
Duct Size:
5-7/8” Round
Damper:
Included
Dimensions & Weights
Product Dimensions:
33-15/16” x 14-15/16” x 15-1/4”
Cutout Dimensions:
33-1/4” x 14-3/8” x 15-1/2”
Net Weight:
27.8 lbs
Gross Weight:
37.2 lbs

Features

350 CFM Ventilation
  • Provides effective airflow to remove smoke, steam, and cooking odors from everyday cooking.
Three-Speed Fan Control
  • Adjust between low, medium, and high fan speeds for flexible ventilation performance.
Convertible Venting Options
  • Supports both ducted and recirculating installation for flexible setup options.
Push Button Controls
  • Simple mechanical controls provide easy and reliable operation.
LED Lighting
  • Energy-efficient LED lights illuminate the cooking surface for improved visibility.
Dishwasher-Safe Baffle Filters
  • Removable stainless steel filters trap grease and clean easily in the dishwasher.
Stainless Steel Construction
  • Durable stainless steel finish delivers long-lasting performance and modern style.
5-Minute Delay Shutoff
  • Allows the fan to continue ventilating after cooking to clear lingering smoke and odors.
Integrated Damper Included
  • Includes a built-in damper for easier installation and improved airflow control.
