Thermador T24UW800LP
Authorized
Dealer

Thermador
T24UW800LP

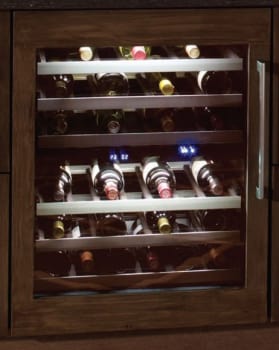

24 Inch Undercounter Wine Reserve with 41-Bottle Capacity, Dual Temperature Zones, 6 Shelves, UV Resistant SoftClose Glass Door, LED Theater Lighting, Electronic Touch Controls and Quick Chill: Left Hand Door Swing, Custom Panel Ready

No reviews yet Write a review!
quick specs
Width: 23 7/8 Inch
Depth: 23 7/8 Inch
Height: 34 1/2 Inch
Bottle Capacity: 41 Bottles
Temperature Zones: Dual
View more
Product Information
Brand: Thermador
Model: T24UW800LP
Appearance
Type: Built In
Size: Compact
Undercounter: Yes
Door Color: Panel Ready
Hinge Side: Left
Field Reversible Doors: No
Glass Door: Yes
Accepts Custom Panels: Yes
Compact (Category): Yes
Dimensions
Width: 23 7/8 Inch
Depth: 23 7/8 Inch
Height: 34 1/2 Inch
Bottle Capacity: 41 Bottles
Features
Temperature Zones: Dual
Temperature Control Type: Digital
Shelves: 6
Technical Details
Amps: 15
Voltage: 115 Volts
GTIN
UPC: 825225921264
EAN: 0825225921264
Are You a
Builder?
Contact us for
special pricing & volume discounts
Get Quote
  • Description
  • Specifications
  • Features
  • Reviews

Description

24" Undercounter Wine Reserve with 41-Bottle Capacity
New from Thermador comes an undercounter wine reserve offering enough capacity to store 41 bottles. The wine reserve's 6 full-width wine shelves slide out easily and are UV protected behind the SoftClose glass door. Choose from two temperature zones for the ideal storage of both reds and whites. The upper zone offers a temperature range of 40°F (3°C) to 52°F (10°C), while the lower offers a range of 52°F (11°C) to 64°F (18°C). Touch electronic controls are intuitive and easy to use, and the interior is elegantly illuminated by gentle LED theater lighting. This unit is perfect for the wine enthusiast to both store and display their most cherished items.

Specifications

Overview
Type:
Built-In, Undercounter
Panel Ready:
Yes
Capacity:
41 Bottles
Lighting:
LED Theater
Glass Door:
Yes
Features & Performance
Shelves:
6
Shelf Material:
Wenge Hardwood w/ Aluminum Front Caps
Temperature Zones:
2
Upper Zone Temperature Range:
40°F (3°C) to 52°F (10°C)
Lower Zone Temperature:
52°F (11°C) to 64°F (18°C)
Door Open Alarm:
Yes
Control Type:
Electronic Touch
Quick Chill:
Yes
UV Resistant:
Yes
Electrical Requirements
Electrical Requirements:
115V/60 Hz
Amps:
15 or 20
Warranty
Parts & Labor:
2 Years
Cutout Dimensions
Cutout Width:
24"
Cutout Depth:
24"
Cutout Height:
34" - 35"
Dimensions & Weights
Width:
23 7/8"
Depth:
23 7/8"
Height:
34 1/2"
Unit Weight:
192 Lbs.
Shipping Weight:
205 Lbs.

Features

Full Integration
  • Wine reserve is fully flush at 24" depth, and features a concealed venting grille for full integration
Dual Zone Wine Storage
  • Upper zone range: 38°F (3°C) to 50°F (10°C)
  • Lower zone range: 52°F (11°C) to 65°F (18°C)
LED Theater Lighting
  • Illuminates the interior for an elegant display
SoftClose Door
  • SoftClose hinges ensure ultra smooth closing of the door
Full-Extension Wine Racks
  • Full-extension racks slide out easily and offer a 41-bottle capacity total
UV Resistant Tempered Glass Door
  • UV resistant glass reduces the harmful effects of UV lighting on wine
Door Open Alarm
