Summit SWCDAR24 - 24 Inch Built-In Combination Dual-Zone Wine Cellar
Summit SWCDAR24 - 24 Inch Built-In Combination Dual-Zone Wine Cellar
Summit SWCDAR24 - 24 Inch Built-In Combination Dual-Zone Wine Cellar Fully Finished Stainless Steel Cabinet
Summit SWCDAR24 - 24 Inch Built-In Combination Dual-Zone Wine Cellar 46-Bottle Capacity
+11

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Summit SWCDAR24
Authorized
Dealer

Summit
SWCDAR24
24 Inch Built-In Combination Dual-Zone Wine Cellar with 46-Bottle Capacity, 6 Full-Extension Shelves, 2 Slide-out Refrigerator Drawers, and Digital Controls: Stainless Steel

Top Quality Store on Google
Buy More Save More
quick specs
Sabbath Mode: Yes
Width: 23 5/8 Inch
Depth: 23 1/2 Inch
Height: 65 5/8 Inch
Bottle Capacity: 46 Bottles
Total Capacity: 3.4 Cu. Ft.
WiFi: No
Temperature Zones: Dual
Lock: Yes
LED Lighting: Yes
View more
Color: Stainless Steel
Stainless Steel
Stainless Steel
SWCDAR24
$4,299.00
In stock
Panel Ready
Panel Ready
SWCDAR24PNR
$4,599.00
In stock
$4,299.00
MSRP: $5,450.00
You save $1,151.00
OR
Buy more & save up to $900
See all eligible items
2
$100
3
$200
4
$300
5
$400
6
$500
7
$600
8
$700
9
$800
10
$900
FREE Delivery Available
In stock
In Stock Items labeled IN STOCK will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items are IN STOCK, the order will ship when all items are available unless you select the SPLIT SHIP option in checkout. IN STOCK may not apply to multiple quantities of the same product.
Current Offers
Summit Buy More Save More! Up to $900 Instantly! Expires 12/31/2026
Have questions? Chat with us!

Recommended Accessories & Add-ons

You Might Also Like

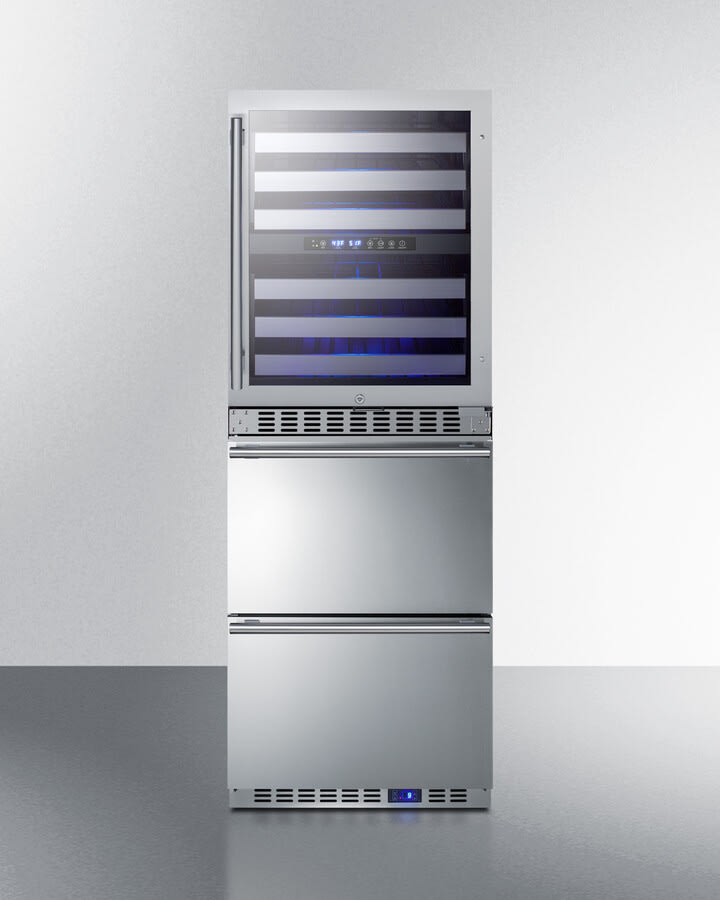

24 Inch Combination Dual-Zone Wine Cellar and 2-Drawer All Freezer
Summit
24 Inch Combination Dual-Zone Wine Cellar and 2-Drawer All Freezer
$4,299.00
Product Information
Brand: Summit
Model: SWCDAR24
Appearance
Type: Freestanding/Built In
Size: Full Size
Undercounter: No
Door Color: Stainless Steel
Cabinet Color: Stainless Steel
Hinge Side: Right
Field Reversible Doors: Yes
Glass Door: Yes
Accepts Custom Panels: No
Dimensions
Width: 23 5/8 Inch
Depth: 23 1/2 Inch
Height: 65 5/8 Inch
Bottle Capacity: 46 Bottles
Total Capacity: 3.4 Cu. Ft.
Shabbos Compliance
Sabbath Mode: Yes
Certification: None
Smart
WiFi: No
Remote Control: No
Features
Temperature Zones: Dual
Temperature Control Type: Digital
Shelves: 6
Defrost: Automatic
Lock: Yes
Fingerprint Resistant: No
Purpose: Store
LED Lighting: Yes
Technical Details
Energy Star Rated: No
ADA Compliant: No
Approved for Outdoor Use: No
Amps: 15
Voltage: 115 Volts
GTIN
UPC: 761101082806
EAN: 0761101082806
Are you a Trade Pro? Join Now

Description

24 Inch Built-In Combination Dual-Zone Wine Cellar with 46-Bottle Capacity
Summit brings an innovative, elegant solution to store wine, food, and beverages with its combination 46 bottle capacity two-zone wine cellar and 3.4 cu. ft. two-drawer refrigerator - the perfect entertainment station for the home.
The wine cellar can store up to 46 standard Bordeaux-style bottles or a combination of 30 Bordeaux and 16 wider Burgundy bottles. It has 6-full-extension black wire shelves, recessed LED lights, and a digital control panel for easy temperature control.
The bottom two-drawer refrigerator features stainless steel construction, an internal fan, a digital thermostat, a sliding chrome basket, and 2-adjustable dividers to separate the drawer compartments. Additional features include Sabbath Mode, temperature memory function, a high-temperature alarm, and an open drawer alarm for added peace of mind.

Note: This unit comes with an anti-tip bracket which should be installed to prevent tipping forward.

Specifications

Overview
Capacity:
3.4 cu. ft.
Bottles:
46 bottles
Defrost Type:
Automatic
Cabinet:
Stainless Steel
Temperature Range:
ALWC532: 41°F to 64°F; FF642D: 36°F to 43°F
Fan Type:
Interior and Exterior
Refrigerant Type:
R600a
Wine Cellar Features
Number of Zones:
2
Door Swing:
RHD
Shelf Type:
Wire
Shelf Qty:
6
Thermostat Type:
Digital
Interior Light:
Yes
Interior Height 1:
11 7/8"
Interior Width 1:
20 1/2"
Interior Depth 1:
18
Interior Height 2:
11 5/8"
Interior Width 2:
20 1/2"
Interior Depth 2:
18"
2-Drawer Refrigerator Features
Drawers:
2 Stainless Steel
Drawer Dividers:
2
Sliding Basket:
Removable Chrome Basket
Frost-Free Operation:
Yes
Open Drawer Alarm:
Yes
Temperature Alarm:
Yes
Sabbath Mode:
Yes
Kickplate:
Stainless Steel
Interior Height - Drawer 1:
9 1/4"
Interior Width - Drawer 1:
17 1/4"
Interior Depth - Drawer 1:
15 1/2"
Interior Height - Drawer 2:
10"
Interior Width - Drawer 2:
17 1/4"
Interior Depth - Drawer 2:
15 1/2"
Weight and Dimensions
Height of Cabinet:
65 5/8"
Width:
23 5/8"
Depth:
23 1/2"
Depth with Handle:
25 1/2"
Depth with door at 90°:
45 3/4"
Weight:
229 lb.
Shipping Weight:
239 lb.
Electrical Specifications
Amps:
2.05
Voltage/Frequency:
115 V AC/60 Hz
Claims and Certifications
US Electrical Safety:
ETL
Canadian Electrical Safety:
ETL-C
Energy Usage/Year:
275.0kWh/year
Other Energy Info:
ALWC532: 1.25Ams; FF642D: 0.8 Amps
Warranty
Parts & Labor Warranty:
1 Year
Compressor Warranty:
5 Years

Features

Combination Wine Cellar and Refrigerator
  • Complete refrigeration storage solution with the dual-zone, 46 bottle capacity wine cellar and two-drawer all-refrigerator, perfect for home bars, kitchens
46 Bottle Capacity (Wine Cellar)
  • Can store up to 46 standard Bordeaux style bottles, or a combination of 30 Bordeaux and 16 wider Burgundy bottles
Full Extension Shelving (Wine Cellar)
  • Shelves move smoothly on ball-bearing glides for easier loading and unloading
Commercial Shelving Design (Wine Cellar)
  • Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving
Double-Pane Tempered Glass Door (Wine Cellar)
  • Provides a full display of the interior, with two levels of glass for added protection
LED Lighting (Wine Cellar - Both Units)
  • It illuminates your wine collection in a gentle blue hue while ensuring an easy view of the refrigerator interior for easy access
Digital Controls (Wine Cellar - Both Units)
  • Easy temperature management with electronic controls with a temperature readout in Fahrenheit or Celsius
Two Temperature Zones (Wine Cellar)
  • The lower zone for reds has a temperature range of 50° F to 64° F; the Upper zone stores whites and sparkling wine between 41° F and 50° F
3.4 Cu. Ft. Capacity (Refrigerator)
  • 2-Stainless Steel slide-out drawers offer 3.4 cu. ft. of interior storage
Stainless Steel Construction (Refrigerator)
  • Complete stainless steel construction inside and out offers added durability in an easy-cleaning design
Drawer Dividers (Refrigerator)
  • Two adjustable dividers make it simple to organize the drawer interiors
Sliding Basket (Refrigerator)
  • Removable chrome basket included for easier storage convenience
Internal Fan (Refrigerator)
  • Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Stainless Steel Kickplate (Refrigerator)
  • Protects from everyday wear and tear in a durable, elegant design
Open Drawer Alarm (Refrigerator)
  • Audible alarm will sound if the drawers are left ajar for over a minute
Temperature Alarm (Refrigerator)
  • High-temperature alarm sounds if the unit's interior goes out of the recommended range
Temperature Memory Function (Refrigerator)
  • The unit will retain its last settings when power is restored in the event of power loss
Y-cord with Single 3-prong Right Angle Plug Included
  • Included 6 ft. cord allows users to operate both the wine cellar and refrigerator using a single plug for added convenience
Anti-tip Bracket
  • Included and recommended for user installation to reduce the risk of tipping
100% CFC Free
  • Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
  • Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Additional Features
  • Fully Finished Stainless Steel Cabinet
  • Seamless Stainless Steel Door Frame (Wine Cellar)
  • Professional Handles (Wine Cellar - Both Units)
  • Automatic Defrost (Wine Cellar)
  • Factory Installed Lock (Wine Cellar)
  • Frost-free Operation (Refrigerator)
  • Sabbath Mode (Refrigerator)
