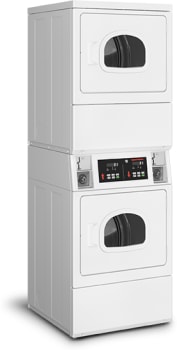

Speed Queen SSGNCAGW116TW01 - Stack Dryer - Window Door
Speed Queen SSGNCAGW116TW01 - Stack Dryer - Window Door
Speed Queen SSGNCAGW116TW01 - Control Panel
Speed Queen SSGNCAGW116TW01 - Payment System
+2

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Speed Queen SSGNCAGW116TW01
Authorized
Dealer

Speed Queen SSGNCAGW116TW01 27 Inch Commercial Stacked Dryer with 14 Cu. Ft. Total Capacity, Quantum® Gold Pro Control, Integrated Meter Case, Quiet Blower System, 5 Dry Cycles, 3 Temperature Selections, and ADA Compliant: Gas - Window Door: Coin Drop

quick specs
Fuel Type: Gas
Stackable: Yes
Width: 26 7/8 Inch
Depth: 28 Inch
Height: 78 17/100 Inch
Capacity: 7 Cu. Ft.
WiFi: No
Cycles: 5
Reversible Door: No
Venting Type: Vented
Wrinkle Control Cycle: No
Steam Cycle: No
Sensor Dry: No
View more
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!

Recommended Accessories & Add-ons

You Might Also Like

Product Information
Brand: Speed Queen
Model: SSGNCAGW116TW01
Appearance
Type: Front Load
Fuel Type: Gas
Color: White
Stackable: Yes
Location of Controls: Front
Dimensions
Width: 26 7/8 Inch
Depth: 28 Inch
Height: 78 17/100 Inch
Capacity: 7 Cu. Ft.
Smart
WiFi: No
Features
Control Type: Digital
Cycles: 5
Temperature Settings: 3
Reversible Door: No
Venting Type: Vented
Interior Light: No
Leveling Legs: Yes
Payment System: Coin Operated
Usage: Commercial
Cycles
Wrinkle Control Cycle: No
Steam Cycle: No
Sanitize Cycle: No
Sensor Dry: No
Technical Details
Energy Star Rated: No
CEE Rating: Not Available
ADA Compliant: Yes
LP Conversion: Yes - Purchase Kit
NSF Certified: No
Amps: 15
Voltage: 120 Volts
GTIN
UPC: SSGNCAGW116TW01
Are you a Trade Pro? Join Now

Description

27 Inch Commercial Stacked Dryer with Coin Drop Installed
Speed Queen's stack dryer offers the same great features as the single-load dryer. Two commercial dryers in the space of one, both operating independently, including independent controls for optimum usage. Defined by its simplicity and its performance, Speed Queen provides everything you need to get the job done - and nothing you don't. Speed Queen's stack dryer combines heavy-duty construction with reliable operation proven to stand the test of time. They're designed with fewer moving parts for one reason: so you'll face fewer maintenance problems and less wear and tear down the road. Speed Queen's dryers provide the perfect balance of heat, airflow, and tumble action for optimal performance and efficiency. The bottom dryer is ADA Compliant.

Specifications

Overview
Control Option:
Quantum Gold Pro
Color:
White
Capacity - lb:
18
Cylinder Volume - Cu. Ft.:
7.0
Motor (Thermal Protected):
0.33 HP
Type of Gas:
Factory equipped natural
Air Outlet Diameter:
4"
Exhaust Airflow - CFM:
220
Cycles:
High, Medium, Low, Delicates, No Heat
Payment System:
Coin Operated
Heating Element:
25,000 BTU
Agency Approvals:
cCSAus
ADA Compliant:
Yes (Bottom)
Electrical Specifications
Volts:
120V
Amps:
15A
Frequency:
60Hz
Dimensions & Weights
Overall Width:
26 7/8"
Overall Depth:
28"
Overall Height:
78 17/100"
Floor to Door Opening:
15 11/25"
Door Swing:
23 1/2"
Approx. Shipping Width:
33"
Approx. Shipping Depth:
30"
Approx. Shipping Height:
80"
Net Weight:
270 lbs
Shipping Weight:
280 lbs

Features

14 Cu. Ft. Total Capacity
  • Delivers superior tumble action to handle large, bulky loads with ease.
Quantum® Gold Pro Control
  • Delivers a truly premium experience to residents.
  • From intuitive soft-touch buttons that walk them through cycle options to multiple actuations (coin, card, mobile) for payment flexibility, this control gives residents the wash and dry options they want, and the revenue potential managers desire.
Integrated Meter Case
  • Features superior meter case-to-top attachment for theft and vandalism protection.
Quiet, Efficient Blower System
  • Helps create a more welcoming environment for customers.
Upfront Lint Filter
  • Easy to clean and secure.
5 Dry Cycles
  • Pick the drying temperature you prefer for enhanced drying performance and fabric care with High, Medium, Low, Delicates, and No Heat options.
3 Temperature Selections
  • Select the best temperature to dry your clothes.
Durable Galvanized Steel Cylinder
  • Will not fade, corrode, chip, crack, or discolor with normal use.
220 CFM Airflow
  • High-efficiency exhaust blower with superior airflow 220 CFM (105 liters/sec).

Additional Features

  • Industry's Largest Door Opening 2.06 sq. ft.
  • 100% Serviceable from the front
  • Space-Saving Narrow Cabinet 26 7/8"
  • ADA Compliant (Bottom)
