Description

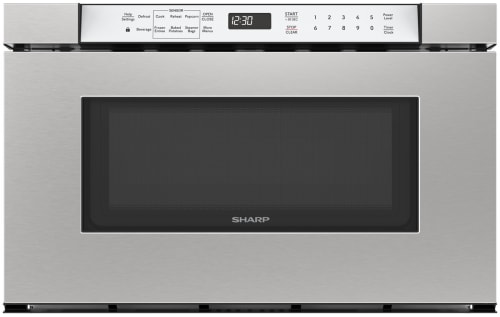

1.2 cu. ft. Built-In Microwave Drawer™ Oven with 950-Watt Cooking Power
The Sharp SMD2430MS 24 in. Microwave Drawer™ Oven is the perfect blend of convenience, intuitive design, and accessibility, boasting a spacious 1.2 cu. ft. capacity and 950 Watts of cooking power. Utilize built-in Sensor Cook® Technology and cook with confidence, helping take the guesswork out of cooking and defrosting by sensing the food’s moisture and automatically setting the ideal cooking time. With easy-to-use defrost menu options, meal prep becomes simpler and more efficient.
The Automatic Drawer System ensures a smooth, mess-free close with the touch of a button or a gentle nudge. Inside, the spacious 16” by 16” interior easily accommodates large platters, casseroles, and serving bowls, making it a practical solution for busy households. The control panel is purposefully angled for easy-to-use operation. Audible signals can be turned on or off, and the control panel can be locked down to prevent accidental operation by small children and while cleaning. With a bright interior light and viewing window you can easily monitor your cooking creations. Best of all the flat interior design makes cleanup a breeze.
Finished in stainless steel with a sleek silver control panel, this appliance adds a modern and clean look to any kitchen. The Built-In Airflow venting allows for either traditional “proud mount” installation or flush mounting for a streamlined finish without the need of additional trim kits or vent deflectors. Install into an island, peninsula, standard cabinetry, beneath other 24-in. built-in appliances, or utilize the optional pedestal accessory to slide into a standard dishwasher cutout for a built-in look, without the need for custom cabinetry. Engineered with ADA compliance in mind, the under-counter design provides flexibility to fit almost any lifestyle. With a modern style and impressive features, the Sharp SMD2430MS 24 in. Microwave Drawer™ Oven is the perfect solution for your kitchen.
Specifications
Features
Drawer Opening:
Automatic Door, Open/Close Button
Output Power (watts):
950
Interior Light:
Incandescent
End of Cooking Reminder:
Yes
Control Panel
Control Panel Location:
Center/Top
Control Panel Type:
Membrane
Display Type:
LCD 7-Segment
Display Color:
White on Black Background
Cooking/ Menu Presets
Sensor Cook:
Quick Fresh Vegetables, Longer Fresh Vegetables, Frozen Vegetables, Sweet Potatoes, Ground Meat, Fish/Seafood, White Rice, Brown Rice
Frozen Entrée:
Yes, Sensor
Baked Potatoes:
Yes, Sensor
Steamer Bags:
Yes, Sensor
Defrost:
Ground Meat, Steaks/Chops, Boneless Poultry, Bone-in Poultry, Roast, Casserole or Soup
More Menus:
Melt Butter, Melt Chocolate, Soften Ice Cream, Soften Cream Cheese, Warm Syrup, Warm Dessert Toppings, Fresh Rolls/Muffins, Frozen Rolls/Muffins,
Additional Features
Optional Accessory
Product Name:
Drawer Under-the-Counter Pedestal
Color:
Stainless Steel or Custom Panel Ready
Additional Specification
Power Source:
120V, 60HZ / 15A / 1.67 KW
Dimensions & Weight (W x H x D)
Interior Cavity Dimensions:
17 5/16" x 7 1/8" x 16 9/16"
Product Dimensions:
23 5/8" x 15 1/16" x 23 7/16"
Standard Mount Cutout Dimensions:
22 1/8" x 14 13/16" x 23 1/2"
Flush Mount Cutout Dimensions:
23 7/8" x 15 5/16" x 23 1/2"
Shipping Dimensions:
27 3/4" x 21 3/4" x 29 1/4"
Product Weight/Shipping Weight:
72.0 lbs. / 83.6 lbs.
Warranty
Parts:
1 Year (In-Home Limited)
Labor:
1 Year (In-Home Limited)
Magnetron Tube:
4 Years Additional (Parts Only)
Features
1.2 cu. ft. Capacity
- Offering a generous 16" by 16" interior design, the SMD2430MS is perfect for large platters, casseroles and serving bowls making it a practical solution for busy households.
950-Watt Cooking Power
- Delivers reliable microwave cooking and reheating performance.
Sensor Cook® Technology
- Sensor Cook Technology helps take the guesswork out of cooking and defrosting by sensing the food's moisture and automatically setting the ideal microwave cook time.
Automatic Drawer System
- Automatic Drawer System, opens with a press of a button and gently closes with a soft nudge.
Sensor Cook® Menu
- Automatically adjusts time and power for precise cooking and reheating results.
Convenient Cooking Options
- The SMD2430MS is packed with thoughtful features like the Steamer Bag preset that easily steams a bag of frozen veggies up to 17oz.
- The Keep Warm feature can hold warm dishes for up to 30 minutes and the Rolls/Muffins feature warms rolls, muffins, or bagels from room temperature, refrigerated or frozen.
Smart & Easy™ Settings
- The Sensor Cook center includes many Smart & Easy™ settings to cook the most popular microwaved foods without the need to calculate cooking time or power level.
Control Lock
- Control lock to prevent accidental operation.
Easy-to-clean Interior
- The flat interior design provides a smooth, easy to clean surface making cleanup a breeze.
Easy Touch Open
- The Easy Touch Automatic Drawer system eases open with the touch of a button. Simply give the Microwave Drawer™ Oven a small nudge and it smoothly shuts for you.
45° Angle Touch Glass Controls Panel
- Angled control panel for easy viewing and operation.
Installation Options
- Install into an island, peninsula, standard cabinetry, beneath other 24-in. built-in appliances, or utilize the optional pedestal accessory to slide into a standard dishwasher cutout for a built-in look, without the need for custom cabinetry.
ADA Compliant
- Designed with ADA Compliance in mind, the under-counter design provides flexibility to fit practically any lifestyle.
Additional Features
- Convenient Viewing Window
- Flush-Mount Ready with Built-In Airflow Control
Key Features
Sensor Cook® Technology
Sensor Cook Technology helps take the guesswork out of cooking and defrosting by sensing the food’s moisture and automatically setting the ideal microwave cook time.
