Innovation
Wi-Fi Enabled for ThinQ® Control with iPhone / Android App:
Yes
Performance
PowerSteam® Technology:
Yes
QuadWash® Pro System:
Yes
Inverter Direct Drive™ Technology:
Yes
LoDecibel™ Quiet Operation:
40 dBA

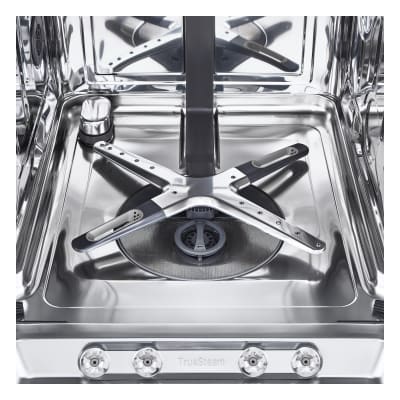

Number of Spray Arms:
3 (Top, Upper, Lower)
SenseClean™ Wash System:
Yes
3-Stage Filtration System:
Yes
Features
Number of Wash Cycles:
10 (Auto, Heavy, Delicate, Refresh, Normal, 1-Hour, Download Cycle, Machine Clean, Rinse, Express)
Number of Options:
8 (Flex Zone, Steam, High Temp, Dry Boost, Delay Start, Control Lock, Night Dry, Remote Start)
End of Cycle Indicator:
Beeper + END Indication on Display
Detergent and Rinse-Aid Dispenser:
Yes
Style and Design
Electronic Controls:
Top Control
SignaLight™ Cycle Indicator Lights:
3
Time Remaining Indicator:
LED
Tub Material:
NeveRust™ Stainless Steel
Capacity
EasyRack™ Plus System:
Yes
Height-Adjustable 3rd Rack:
Yes
Height Adjustable Upper Rack:
Yes
Fold Down Tines:
Full Fold Upper / Lower
BPA-Free Nylon Coated Racks / Tines:
Yes
Rack Handle:
Upper / Lower
Wheel Bearing:
Yes (Lower)
Technical Specs
ENERGY STAR® Certified:
Yes
Energy Use (kWh/Year):
238 kWh/Year
Water Use (Gallons/Cycle):
2.9
Required Power Supply:
120 V, 60 Hz, 15 Amp
Inlet Water Temperature:
120 °F min. - 149 °F max.
Water Pressure:
20 – 80 psi
Dimensions and Weight
Overall Width (Inches):
23 3/4"
Overall Height (Inches):
33 5/8" - 36"
Overall Depth (Inches):
24 5/8"
Depth with Door Closed with Handle:
26 13/16"
Depth with Door Open:
49 1/4"
Net Weight (approx.):
97 lbs.
Shipping Weight (approx.):
110 lbs.
Warranty Summary*
Limited Warranty, Parts & Labor:
3 Years
Limited Warranty on Control Board, Rack Parts, and Stainless Steel Door Liner or Tub, Parts Only:
5 Years
Limited Warranty on Direct Drive Motor, Parts Only:
10 Years
