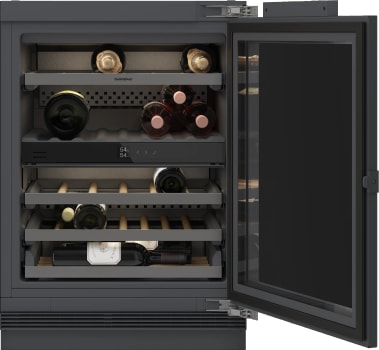

Gaggenau 200 Series RW204770 - 24 Inch Panel Ready Built-In Under-Counter Dual Zone Wine Cooler

Image Disclaimer

Authorized

Dealer

Gaggenau 200 Series

RW204770

24 Inch Panel Ready Built-In Under-Counter Dual Zone Wine Cooler with 38 Bottle Capacity, 5 Oak Wood and Aluminum Bottle Trays, UV-Protective Glass Door, 3000 K LED Lighting, Touch Controls, 41°F to 68°F Temperature Range, Sabbath Mode and Star-K Certified

Be the first to write a review

Top Quality Store on Google

quick specs

Sabbath Mode: Yes

Width: 23 5/8 Inch

Depth: 23 7/16 Inch

Height: 33 7/8 Inch

Bottle Capacity: 38 Bottles

Total Capacity: 4.6 Cu. Ft.

WiFi: No

Temperature Zones: Dual

Wine Racks: 5

Lock: Optional

LED Lighting: Yes

Temperature Range: 41� F to 68� F (5 �C to 20 �C)

To order or learn more please call us at:

800-570-3355

Have questions? Chat with us!

Learn More with a Tailored, Immersive Experience

Experience Gaggenau Appliances Live

Visit a B/S/H Experience & Design Center near you to explore the latest innovations from Gaggenau. These centers are primary hubs to see, touch, experience the full assortment of Gaggenau appliances in a cutting edge, hands-on space.
Select your preferred location below to book a personal visit with a product expert.

NEW YORK, NY

Explore Gaggenau with Your AJM Expert

Throughout your projects, you'll be paired with an AjMadison appliance expert who will assist in selecting the perfect appliances, answer any questions and provide expert advice. See and compare our extensive selection of Gaggenau appliances in person!

Brooklyn, NY Atlanta, GA

Recommended Accessories & Add-ons

Product Information

Brand: Gaggenau

Series: 200 Series

Model: RW204770

Appearance

Type: Built In

Undercounter: Yes

Door Color: Panel Ready

Hinge Side: Right

Field Reversible Doors: Yes

Glass Door: Yes

Accepts Custom Panels: Yes

Dimensions

Width: 23 5/8 Inch

Depth: 23 7/16 Inch

Height: 33 7/8 Inch

Bottle Capacity: 38 Bottles

Total Capacity: 4.6 Cu. Ft.

Shabbos Compliance

Sabbath Mode: Yes

Certification: STAR-K

Requires Shabbos Keeper: No

Smart

WiFi: No

Features

Temperature Zones: Dual

Temperature Control Type: Digital

Wine Racks: 5

Shelves: 5

Defrost: Automatic

Lock: Optional

Purpose: Store

LED Lighting: Yes

Temperature Range: 41� F to 68� F (5 �C to 20 �C)

Soft Close: Yes

Technical Details

Energy Star Rated: No

ADA Compliant: No

Approved For Commercial Use: No

Approved for Outdoor Use: No

Amps: 10

Voltage: 120 Volts

GTIN

UPC: 825225982333

Description
Specifications
Features
Reviews

Description

24 Inch Panel Ready Built-In Under-Counter Dual Zone Wine Cooler with 38 Bottle Capacity
Bring the precision of purpose-built wine storage into a discreet under-counter design. The RW204770 maintains each of its two climate zones from 41°F to 68°F, supported by adjustable humidity, the Multi-Flow Air System, and continuous activated-charcoal filtration. UV-protective glass, extendable oak-and-aluminum trays, and dimmable 3000 K presentation lighting protect and showcase up to 38 bottles, while soft-close operation completes the refined experience.

Specifications

Product Overview

Brand:

Gaggenau

Model:

RW204770

Series:

200 Series

Product Type:

Wine Climate Cabinet

Installation Type:

Fully Integrated, Under-Counter

Door Type:

Glass Door

Handle:

Required

Nominal Width:

23.5 in.

Bottle Capacity:

38 Standard 0.75 L Bottles

Total Volume:

4.6 cu. ft. (123 L)

Climate and Preservation

Climate Zones:

2 Independently Controllable Zones

Temperature Range:

41°F to 68°F (5°C to 20°C)

Temperature Control:

Electronic Precision Control

Air Distribution:

Multi-Flow Air System

Humidity Settings:

Standard and High

Air Filtration:

Activated-Charcoal Air Filter in Each Climate Zone

UV Protection:

19% UV Transmission

Defrost System:

Automatic with Defrost-Water Evaporation

Storage

Bottle Trays:

Extendable Bottle Trays:

Tray Material:

Oak Wood and Aluminum

Standard Bottle Capacity:

38 Bottles

Magnum Bottle Capacity:

Up to 4 Bottles

Lighting

Interior Lighting:

3000 K LED

Automatic Lighting Dimming:

Yes, with Door Opening and Closing

Presentation Lighting:

Dimmable

Presentation Brightness Settings:

20%, 40%, 60%, 80%, and 100%

Controls and Modes

Control Type:

Touch Keys

Temperature Display:

Digital

Display Brightness:

Adjustable from 20% to 100%

Temperature Units:

Fahrenheit or Celsius

Keylock:

Yes, PIN-Protected

Sabbath Mode:

Star-K Certified

Filter Reminder:

Optional Filter Alarm

Alerts:

Open-Door, Temperature, and Malfunction Warnings

Door Lock:

Optional RA 220 010 Accessory

Dimensions

Appliance Width:

23 7/16 in. (595 mm)

Appliance Depth:

23 1/2 in. (597 mm)

Cabinet Body Depth:

22 3/16 in. (564 mm)

Adjustable Appliance Height:

33 13/16 in. to 36 3/16 in. (859 mm to 919 mm)

Minimum Cutout Width:

23 5/8 in. (600 mm)

Minimum Cutout Height:

33 7/8 in. (860 mm)

Minimum Cutout Depth:

22 1/4 in. (565 mm)

Minimum Ventilation Cross Section:

5 7/8 sq. in. (150 cm²)

Installation

Hinge Type:

Flat Hinge

Door Hinge:

Right, Reversible

Door Opening Angle:

115°, Fixable at 90°

Feet:

Height-Adjustable

Maximum Door Panel Frame Weight:

22 lb. (10 kg)

Side-Wall Clearance at 90° Opening:

1/4 in. (7 mm)

Side-Wall Clearance at 115° Opening:

9 3/8 in. (238 mm)

Applicable Panel Thickness for Listed Clearances:

3/4 in. (19 mm), Without Handle

Side-by-Side Installation:

Possible with Optional RA 297 600 Accessory

Maximum Transport and Operating Altitude:

5,000 ft. (1,500 m)

Performance and Electrical

Energy Consumption:

100 kWh/Year

Noise Level:

38 dB(A) re 1 pW

Voltage:

120 V

Frequency:

60 Hz

Total Amps:

10 A

Total Rating:

0.09 kW

Power Cord:

59 in. with Grounded Plug

Optional Accessories

GH 050 010:

Stainless-Steel Handle Bar

GH 050 010 Handle Length:

19 11/16 in. (500 mm)

GH 050 010 Handle Height:

1 15/16 in. (49 mm)

GH 050 010 Mounting Distance:

18 3/4 in. (477 mm)

RA 250 220:

Replacement Activated-Charcoal Air Filter

RA 297 600:

Side-by-Side Installation Accessory

RA 220 010:

Door Lock

Part No. 00624562:

Pin for Fixing the Door Opening Angle at 90°

Features

38 Bottle Capacity

With 4.6 cu. ft. of total capacity, this wine cooler accommodates up to 38 standard 0.75-liter bottles.

5 Oak Wood and Aluminum Bottle Trays

Five premium bottle trays combine oak wood with aluminum accents, including 4 extendable trays for easier viewing and access.

The flexible configuration can also accommodate up to 4 Magnum bottles.

UV-Protective Glass Door

The fully integrated glass door provides UV protection with a specified UV transmission of 19%, helping shield the collection from light exposure while keeping bottles visible.

3000 K LED Lighting with Presentation Mode

Warm 3000 K interior LED lighting automatically dims as the door opens and closes.

Presentation mode keeps the collection illuminated at a brightness level from 20% to 100%.

Electronic Touch Controls

Touch controls and a digital temperature display provide precise management of both climate zones.

A PIN-protected keylock helps prevent accidental changes to the settings.

2 Independently Controlled Temperature Zones

Set each of the 2 climate zones from 41°F to 68°F to maintain red and white wines at their preferred storage or serving temperatures.

Star-K Certified Sabbath Mode

Star-K certified Sabbath mode accommodates religious observance requirements while maintaining essential climate-control performance.

Adjustable Humidity Control

Standard and High humidity settings help maintain suitable storage conditions and prevent natural corks from drying out or shrinking.

Multi-Flow Air System

Gaggenau’s Multi-Flow Air System dynamically distributes cool air throughout the cabinet to help maintain stable, consistent conditions around the stored bottles.

Continuous Activated-Charcoal Air Filtration

An activated-charcoal filter in each climate zone continuously purifies the circulating air to help protect the storage environment from unwanted odors.
