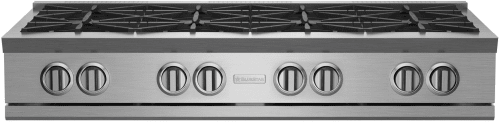

BlueStar RGTNB Series RGTNB488BV2 - Main Image

BlueStar RGTNB Series RGTNB488BV2 - Burner Configuration

BlueStar RGTNB Series RGTNB488BV2 - Heavy Duty Knobs

Image Disclaimer

Authorized

Dealer

BlueStar RGTNB Series

RGTNB488BV2

48 Inch Gas Rangetop with 8 Open Burners, Full Motion Grates, UltraNova™ Burners, Simmer Burner, Integrated Cooktop Options, Single Point Spark Ignition, and Knob/Trim Color Options: Stainless Steel, Stainless Steel Trim, Natural Gas

3.7

Average rating of
3 reviews

Top Quality Store on Google

quick specs

Sabbath Mode: No

Number of Burners: 8

Style: Open Burner

Type: Rangetop

Control Type: Knobs

Downdraft Venting: No

Actual Width: 47 7/8 Inch

WiFi: No

Simmer Burner: Yes

Power Burner: Yes

Continuous Grates: Yes

Grill: No

Griddle: No

Induction: No

Warranty Terms: 2 years

Width:

48 Inch

Color:

Stainless Steel

Trim Color:

Stainless Steel

Number of Burners:

Style:

Open Burner

Fuel Type:

Gas

Fuel Subtype:

Natural Gas

^$6,395^.00

MSRP: ~~$7,355.00~~

You save $960.00

Special Order 14 - 28 days

You Will Also Need:

4' Gas Appliance Installation Kit

+ $39.99

Have questions? Chat with us!

Product Information

Brand: BlueStar

Series: RGTNB Series

Model: RGTNB488BV2

MPN: RGTNB488BV2

Warranty Terms: 2 years

Appearance

Fuel Type: Gas

Fuel Subtype: Natural Gas

Number of Burners: 8

Style: Open Burner

Type: Rangetop

Control Type: Knobs

Color: Stainless Steel

Surface Color: Stainless Steel

Trim Color: Stainless Steel

Glass Surface: No

Fingerprint Resistant: No

Downdraft Venting: No

Dimensions

Actual Width: 47 7/8 Inch

Actual Depth: 27 1/4 Inch

Actual Height: 8 3/8 Inch

Shabbos Compliance

Sabbath Mode: No

Smart

WiFi: No

Burner

Simmer Burner: Yes

Power Burner: Yes

Burner 1 Output: 22000

Burner 2 Output: 22000

Burner 3 Output: 15000

Burner 4 Output: 15000

Burner 5 Output: 15000

Burner 6 Output: 15000

Burner 7 Output: 15000

Burner 8 Output: 9000

Gas Cooktop Features

Continuous Grates: Yes

Dishwasher Safe Grates: No

Grill: No

Griddle: No

French Top: No

Electric Cooktop Features

Induction: No

Technical Details

ADA Compliant: No

LP Conversion: No

Amps: 15

Voltage: 120 Volts

Description
Specifications
Features
Reviews

Description

48 Inch Gas Rangetop with 8 Open Burners
The all new RNB RGTNB Series, featuring restaurant-quality performance and near unlimited customization options, has been updated with cleaner lines and improved features. BlueStar's most customizable line, the RNB rangetop is available with integrated griddles, charbroilers, French tops.

Specifications

Burner Specifications

Top Burner:

5 x 15,000 BTU

Top Burner Power:

2 x 22,000 BTU

Simmer Burner Rating:

130°F

Electrical Requirements (Unit Must Be On A Non-GFI Dedicated Outlet)

VAC:

120V

Amps:

9 Amps

Wiring:

Single Phase

Operating Gas Pressure

NAT:

5.0" WC

LP:

10.0" WC

Installation Clearance

Side Cabinet:

Back Wall:

Top Cabinet Per Side:

Dimensions

Overall Width:

47 7/8"

Overall Depth:

27 1/4"

Overall Height:

8 3/8"

Depth of Cooktop Cabinet:

24"

Features

Heavy-duty, commercial stainless steel construction.

Automatic electronic ignition and re-ignition system.

Single point spark ignition modules.

Push-to-turn, infinite setting NOVA and SUPERNOVA top burner controls with new 130°F simmer burner.

Heavy-duty control knobs.

Drip trays with stainless steel inserts and glides.

1 year parts and labor warranty.

NOTES:

Black knobs are standard.

Key Features

UltraNova™ Burners

The UltraNova™ burner delivers 22,000 BTUs of cooking power, ideal for a quick boil, intense sear, or flawless sauté.

Reviews

Manuals & Guides

Cooktop Series Brochure
