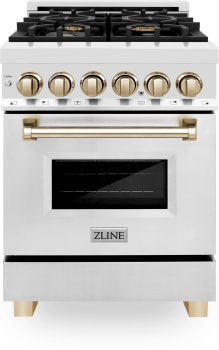

ZLINE Autograph Edition RAZ24G - 24 Inch Pro-Style Dual Fuel Range
ZLINE Autograph Edition RAZ24G - 24 Inch Pro-Style Dual Fuel Range
ZLINE Autograph Edition RAZ24G - 24 Inch Pro-Style Dual Fuel Range in Stainless Steel with Polished Gold Accents
ZLINE Autograph Edition RAZ24G - 24 Inch Pro-Style Dual Fuel Range 4 Italian Sealed Burners
+11

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
ZLINE Autograph Edition RAZ24G
Authorized
Dealer

ZLINE Autograph Edition
RAZ24G
24 Inch Pro-Style Dual Fuel Range with 4 Sealed Burners, 2.8 cu. ft. Convection Oven, 18,000 BTU Burner, Stay-Put Hinges, and Smooth Glide Racks: Polished Gold Accents

Top Quality Store on Google
Sale
quick specs
Sabbath Mode: No
Fingerprint Resistant: No
Cooktop: Sealed Burner
Drawer: None
Width: 23 7/8 Inch
Depth: 27 1/2 Inch
Height: 36 1/8 Inch
Number of Burners: 4
Primary Oven Capacity: 2.8 Cu. Ft.
Continuous Grates: Yes
Convection: Yes
Self-Cleaning: No
Steam Clean: No
Glide Rack(s): Yes
Temperature Probe: No
View more
Color: Polished Gold Accents
Polished Gold Accents
Polished Gold Accents
RAZ24G
$2,959.99
In stock
Champagne Bronze Accents
Champagne Bronze Accents
RAZ24CB
$2,959.99
In stock
Matte Black Accents
Matte Black Accents
RAZ24MB
$2,799.99
In stock
Hurry! This deal ends in:
$2,959.99
MSRP: $3,700.00
You save $740.01
OR
FREE Delivery Available
In stock
In Stock Items labeled IN STOCK will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items are IN STOCK, the order will ship when all items are available unless you select the SPLIT SHIP option in checkout. IN STOCK may not apply to multiple quantities of the same product.
You Will Also Need:
4' Gas Appliance Installation Kit
+ $39.99
Electric Cord Kit - 40 Amp, 4 ft.
+ $49.99
Have questions? Chat with us!

You Might Also Like

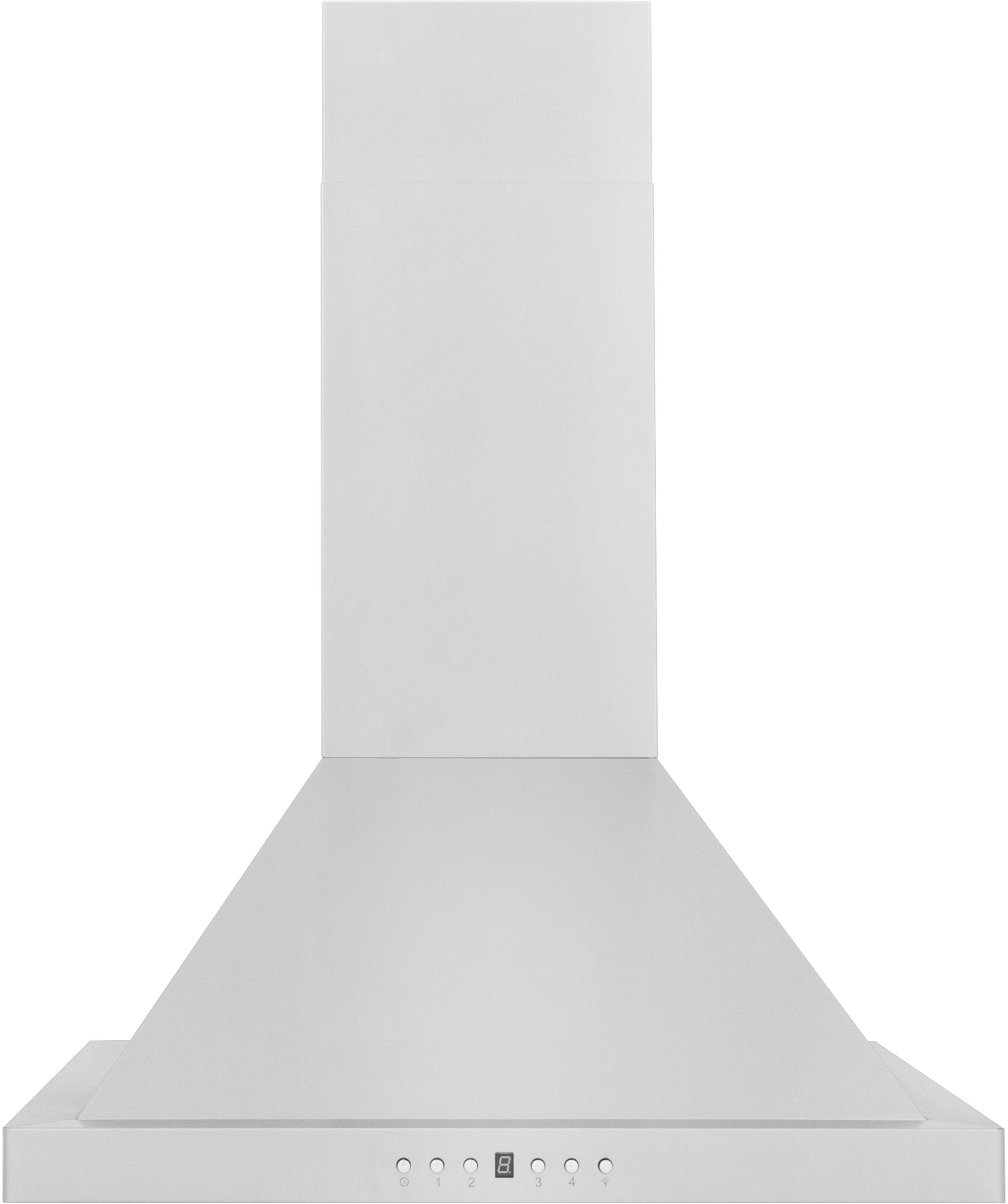

24 Inch Wall Mount Range Hood
ZLINE
24 Inch Wall Mount Range Hood
$323.99
24 Inch Compact Built-In 3rd Rack Dishwasher
ZLINE
24 Inch Compact Built-In 3rd Rack Dishwasher
$1,317.49

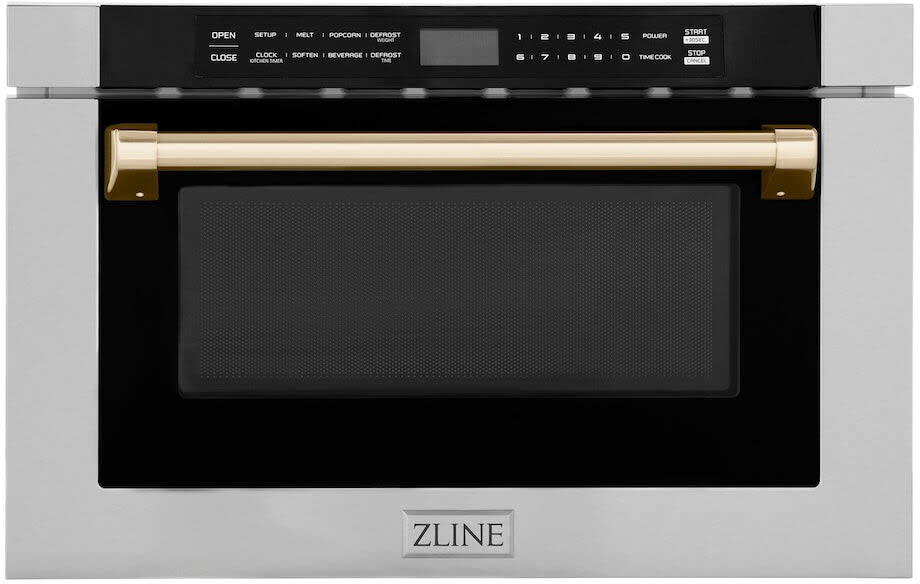

1.2 Cu. Ft. Built-In Microwave Drawer
ZLINE
1.2 Cu. Ft. Built-In Microwave Drawer
$1,199.99
Product Information
Brand: ZLINE
Series: Autograph Edition
Model: RAZ24G
MPN: RAZ-24-G
Appearance
Fuel Type: Dual Fuel
Fuel Subtype: Natural Gas
Style: Freestanding
Color: Stainless Steel
Trim Color: Stainless Steel
Fingerprint Resistant: No
Stainless Steel Handle: No
Cooktop: Sealed Burner
Cooktop Control Type: Knobs
Oven Control Type: Knobs
Viewing Window: Yes
Double Oven: No
Drawer: None
Clock: No
Downdraft Venting: No
Dimensions
Width: 23 7/8 Inch
Depth: 27 1/2 Inch
Height: 36 1/8 Inch
Interior Width: 18 1/2 Inch
Interior Depth: 18 1/2 Inch
Interior Height: 14 Inch
Shabbos Compliance
Sabbath Mode: No
Certification: None
Smart
WiFi: No
Bluetooth: No
Capacity
Number of Burners: 4
Primary Oven Capacity: 2.8 Cu. Ft.
Burner
Simmer Burner: Yes
Power Burner: Yes
Burner 1 Output: 10000
Burner 2 Output: 18000
Burner 3 Output: 12500
Burner 4 Output: 4500
Gas Cooktop Features
Continuous Grates: Yes
Cooktop Accessory: No Accessory
Grill: No
Griddle: No
Oven Features
Digital Temperature Display: No
Timer: No
Delay Bake: No
Convection: Yes
Proof Mode: No
Self-Cleaning: No
Steam Clean: No
Racks: 2
Glide Rack(s): Yes
Temperature Probe: No
Broiler Element Location: Top
Broiler Pan Included: No
Interior Oven Light: Yes
Air Fry: No
Technical Details
ADA Compliant: No
LP Conversion: Yes - Kit Included
Amps: 20
Voltage: 240/220 Volts
Are you a Trade Pro? Join Now

Description

24 Inch Pro-Style Dual Fuel Range with 4 Sealed Burners
Luxury isn't meant to be desired - it's meant to be attainable. Designed in Lake Tahoe, USA, ZLINE Autograph Edition 24" 2.8 cu. ft. Dual Fuel Range with Gas Stove and Electric Oven in Stainless Steel with Polished Gold Accents (RAZ-24-G) provides a professional culinary experience by pairing unmatched performance with personalized touches. Encompassing limitless beauty, precision, and quality, the Autograph Edition Series creates a luxury look that will transform your space. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen's capability.
This product ships in multiple boxes and will require minimal assembly upon arrival.

Specifications

Product Specifications
Fuel Type:
Dual Fuel Range
Color:
Stainless Steel with Polished Gold Accents
Burner Fuel:
Natural Gas and Liquid Propane Convertible
Oven Fuel:
Electric Convection Oven
BTU Ratings:
45,000 BTU
Control Type:
Manual Front Control
LP Conversion Kit:
Included
Adjustable Leg Heights:
Yes, 36" to 38 1/2"
Burner Specifications
Number of Burners:
4
Burner Type:
Sealed
Burner Material:
Brass Burners
Cooktop:
Porcelain
Continuous Cast Iron Grates:
Yes
Back Left:
10,000 BTU
Front Left:
18,000 BTU
Back Right:
12,500 BTU
Front Right:
4,500 BTU
Oven Specifications
Oven Capacity:
2.8 cu. ft.
Convection Fan:
Yes
Oven Features:
Bake, Broil, Convection Bake
Oven Window:
Triple Layer Glass
Number of Racks:
2
Oven Racks:
Smooth Glide Ball-Bearing Racks
Oven Lights:
Yes
Stay-Put Oven Door Hinges:
Yes
Cleaning Type:
Manual Clean
Dimensions and Weight
Width:
23 7/8"
Depth:
27 1/2"
Height:
36 1/8"
Interior Width:
18 1/2"
Interior Depth:
18 1/2"
Interior Height:
14"
Exterior Width:
24"
Weight:
205 lbs.
Electrical Requirements
Voltage:
240/60Hz
Amperage:
20A
Warranty
Warranty:
1 Year Parts and Service; Limited Lifetime Burners

Features

4 Italian Sealed Brass Burners
  • Industry-leading gas cooktop includes 4 Hand-cast burners with cooking power ranging from 1,000 - 18,000 BTUs optimize every meal with a powerful and even heat distribution.
2.8 cu. ft. Convection Oven
  • 2.8 cu. ft oven capacity that fits pans up to 15" wide for maximum space and convenience with everyday cooking.
18,000 BTU Dual Burner
  • Optimize your meal with superior heat retention and even flame distribution for the best cooking results.
Continuous Cast Iron Grates
  • Single piece cast iron grill that is both durable and heavy duty.
Porcelain Cooktop
  • One-piece porcelain cooktop makes cleaning simple and fast.
Dual Oven Lights
  • Illuminate your oven space with dual lighting, controlled by a switch located on the front control panel.
Stay-Put Oven Door Hinges
  • Designed to support the full weight of the oven door, offering additional convenience and safety.
Premium Oven Insulation
  • 3 layered glass and aluminum mesh seal offers superior heat retention and a consistent temperature, creating perfect dishes every time.
Adjustable Legs
  • Twist legs to adjust the total range height anywhere from 36" to 38 1/2".
Smooth Glide Ball-Bearing Oven Racks
  • Durable ball-bearing oven racks provide extra convenience and ease when working with larger dishes.
Manual Front Control
  • Heavy-duty knob controls with smooth action turn.
LP Conversion Kit
  • Comes equipped with an LP conversion kit to convert from natural gas to liquid propane (must be done by a professional), offering versatility with your cooking preference.
Professional Dual Fuel Cooking
  • Blends high-performance technology of a gas cooktop and an electric convection oven.
Limited Lifetime Burner Warranty
  • Limited lifetime warranty on ZLINE Italian burners includes parts replacements for burners and burner caps and parts and labor for the spark tip if parts prove to be defective in materials or workmanship.
Autograph Edition Series
  • Enjoy a timeless look in your kitchen with a Stainless Steel finish paired with Polished Gold accent knobs and handles, giving your kitchen an elegant, unmatched style.
Additional Features
  • 1 Year Parts and Service Warranty
  • CSA Listed
