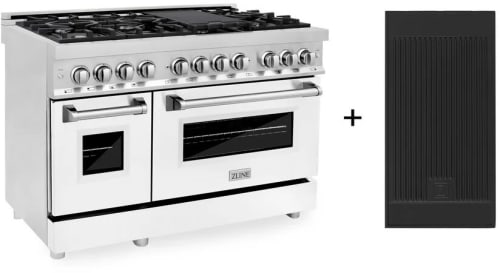

ZLINE RAWMGR48 - 48 Inch Pro-Style Double Oven Dual Fuel Range with Reversible Griddle
ZLINE RAWMGR48 - 48 Inch Pro-Style Double Oven Dual Fuel Range with Reversible Griddle
ZLINE RAWMGR48 - 48 Inch Pro-Style Double Oven Dual Fuel Range in Stainless Steel with White Matte Doors
ZLINE RAWMGR48 - 48 Inch Pro-Style Double Oven Dual Fuel Range 6.0 cu. ft. Convection Oven
+10

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
ZLINE RAWMGR48
Authorized
Dealer

ZLINE
RAWMGR48
48 Inch Pro-Style Double Oven Dual Fuel Range with 7 Sealed Burners, 6.0 cu. ft. Convection Oven, 18,000 BTU Burner, Reversible Griddle, and Smooth Glide Racks: White Matte Door

Top Quality Store on Google
Sale
quick specs
Sabbath Mode: No
Fingerprint Resistant: No
Cooktop: Sealed Burner
Drawer: None
Width: 47 3/4 Inch
Depth: 27 1/2 Inch
Height: 36 1/8 Inch
Number of Burners: 7
Primary Oven Capacity: 6 Cu. Ft.
Continuous Grates: Yes
Convection: Yes
Self-Cleaning: No
Steam Clean: No
Glide Rack(s): Yes
View more
Color: White Matte Door
Stainless Steel
Stainless Steel
RAGR48
$4,649.99
In stock
White Matte Door
White Matte Door
RAWMGR48
$4,874.99
In stock
$4,874.99
MSRP: $6,499.99
You save $1,625.00
OR
FREE Delivery Available
In stock
In Stock Items labeled IN STOCK will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items are IN STOCK, the order will ship when all items are available unless you select the SPLIT SHIP option in checkout. IN STOCK may not apply to multiple quantities of the same product.
You Will Also Need:
4' Gas Appliance Installation Kit
+ $39.99
Electric Cord Kit - 40 Amp, 4 ft.
+ $49.99
Have questions? Chat with us!

You Might Also Like

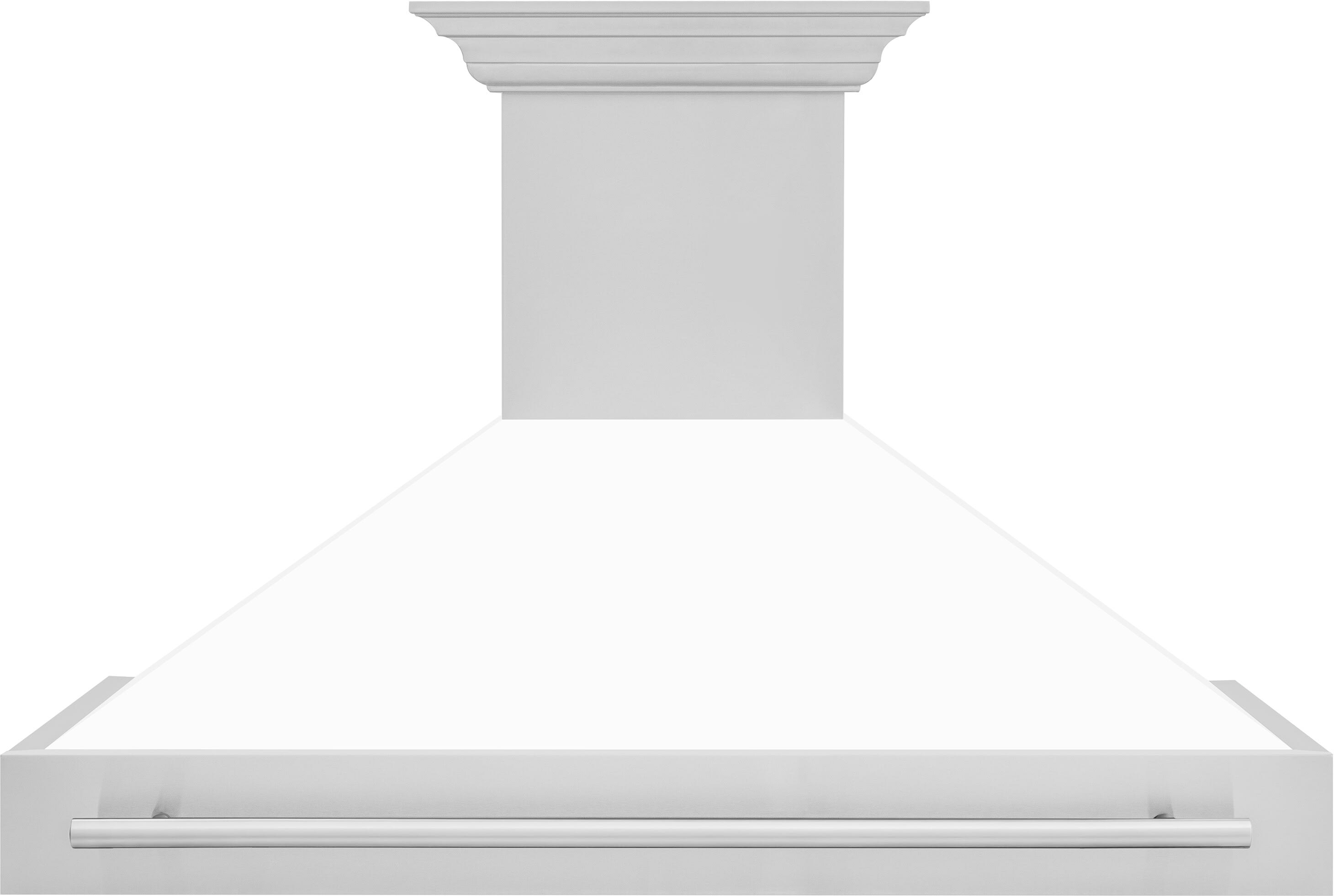

48 Inch Wall Mount Chimney Hood
ZLINE
48 Inch Wall Mount Chimney Hood
$1,934.99
30 Inch Built-in Convection Microwave Oven
ZLINE
30 Inch Built-in Convection Microwave Oven
$1,599.99

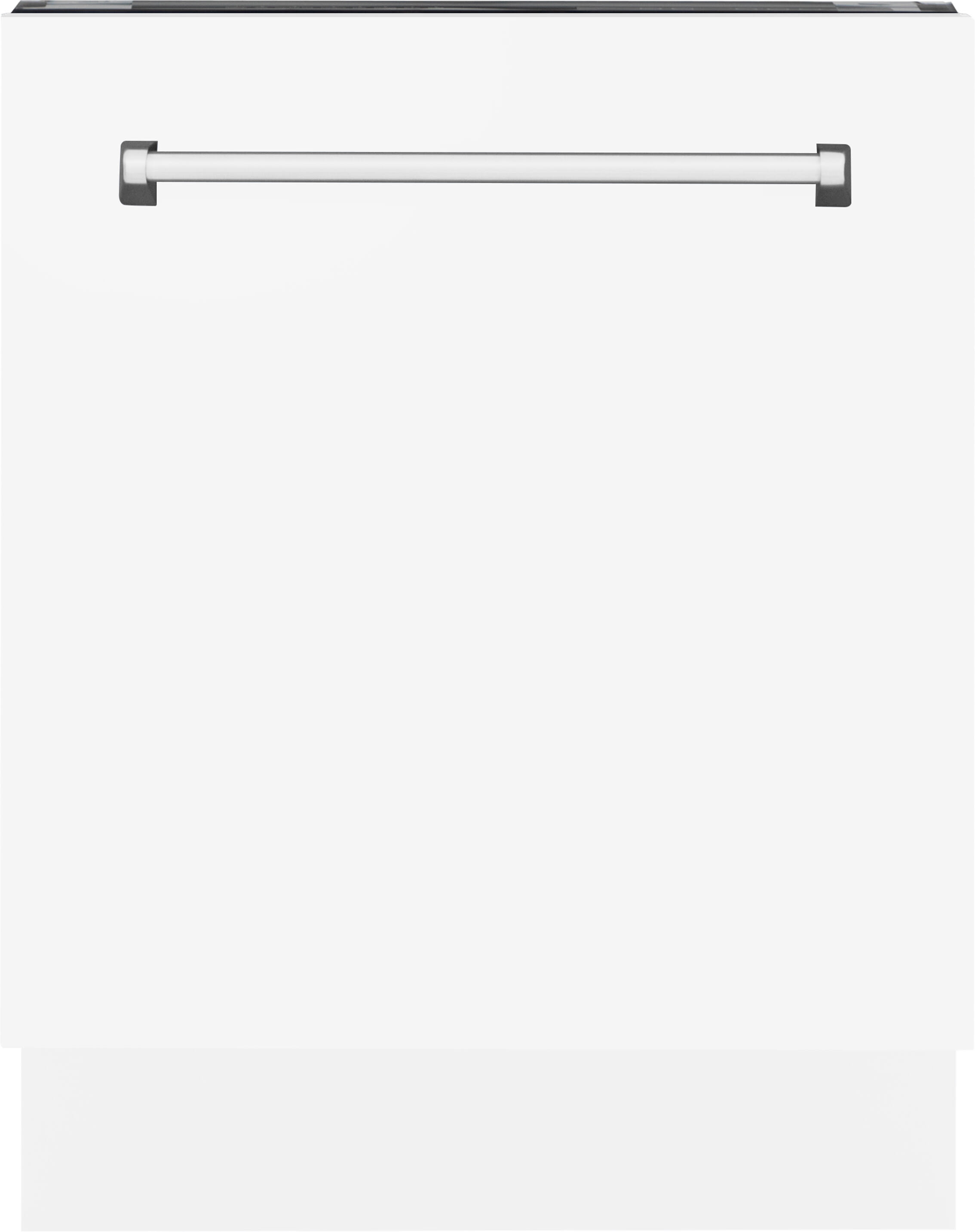

24 Inch Fully Integrated Dishwasher
ZLINE
24 Inch Fully Integrated Dishwasher
$1,317.49
Product Information
Brand: ZLINE
Model: RAWMGR48
MPN: RA-WM-GR-48
Appearance
Fuel Type: Dual Fuel
Fuel Subtype: Natural Gas
Style: Freestanding
Color: Matte White
Trim Color: Stainless Steel
Fingerprint Resistant: No
Stainless Steel Handle: Yes
Cooktop: Sealed Burner
Cooktop Control Type: Knobs
Oven Control Type: Knobs
Viewing Window: Yes
Double Oven: Yes
Drawer: None
Clock: No
Downdraft Venting: No
Dimensions
Width: 47 3/4 Inch
Depth: 27 1/2 Inch
Height: 36 1/8 Inch
Interior Width: 26 1/2 Inch
Interior Depth: 18 1/2 Inch
Interior Height: 14 Inch
Shabbos Compliance
Sabbath Mode: No
Certification: None
Smart
WiFi: No
Bluetooth: No
Capacity
Number of Burners: 7
Primary Oven Capacity: 6 Cu. Ft.
Burner
Simmer Burner: Yes
Power Burner: Yes
Burner 1 Output: 18000
Burner 2 Output: 18000
Burner 3 Output: 10000
Burner 4 Output: 4500
Burner 5 Output: 12500
Burner 6 Output: 12500
Burner 7 Output: 10000
Gas Cooktop Features
Continuous Grates: Yes
Cooktop Accessory: Reversible Grill/Griddle
Oven Features
Digital Temperature Display: No
Timer: No
Delay Bake: No
Convection: Yes
Proof Mode: No
Self-Cleaning: No
Steam Clean: No
Racks: 4
Glide Rack(s): Yes
Broiler Element Location: Top
Interior Oven Light: Yes
Air Fry: No
Technical Details
ADA Compliant: No
LP Conversion: Yes - Kit Included
Amps: 40
Voltage: 240 Volts
Are you a Trade Pro? Join Now

Description

48 Inch Pro-Style Double Oven Dual Fuel Range with 7 Sealed Burners
Luxury isn't meant to be desired - it's meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 48" 6.0 cu. ft. Electric Oven and Gas Cooktop Dual Fuel Range with Griddle and White Matte Door in Stainless Steel (RA-WM-GR-48) provides a professional culinary experience by pairing unmatched performance with timeless style. Handcrafted Italian burners offer the best in the industry when it comes to heat retention and distribution. Rely on precise and even heating for every homemade dish with an electric convection oven. Enjoy an ultra-deep oven capacity with a three-layered insulated glass oven for efficient cooking every use. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen's capability.

Specifications

Product Specifications
Appliance Category:
Dual Fuel Range
Mount Type:
Freestanding
Burner Fuel:
Natural Gas and Liquid Propane Convertible
Oven Fuel:
Electric Convection Oven
Total Oven Capacity:
6.0 cu. ft.
Control Type:
Manual Front Control
Continuous Cast Iron Grates:
Yes
Cooktop:
Porcelain
Convection Fan:
Yes
Lighting:
Dual Lighting
Oven Window:
Triple Glass Window
Burner Specifications
Number of Burners:
7
Burner Type:
Sealed
Burner 1:
4,500 BTU
Burner 2:
10,000 BTU
Burner 3:
10,000 BTU
Burner 4:
12,500 BTU
Burner 5:
18,000 BTU
Burner 6:
18,000 BTU
Burner 7:
12,500 BTU
Primary Oven (Right)
Oven Capacity:
4.0 cu. ft.
Oven Rack:
2 Glide Racks
Oven Interior Width:
26 1/2"
Oven Interior Depth:
18 1/2"
Oven Interior Height:
14"
Secondary Oven (Left)
Oven Capacity:
2.0 cu. ft.
Oven Rack:
2 Glide Racks
Oven Interior Width:
12 1/2"
Oven Interior Depth:
18 1/2"
Oven Interior Height:
14"
Dimensions and Weight
Width:
47 3/4"
Depth:
27 1/2"
Height:
36 1/8"
Interior Width:
26 1/2"
Interior Depth:
18 1/2"
Interior Height:
14"
Exterior Width:
48"
Weight:
270 lbs.
Electrical Requirements
Voltage:
240/60Hz
Amperage:
40A
Warranty
Warranty:
1 Year Parts and Service; Limited Lifetime Burners

Features

7 Italian Sealed Burners
  • Industry-leading gas cooktop includes 6 Hand-cast burners with cooking power ranging from 1,000 - 18,000 BTUs optimize every meal with a powerful and even heat distribution
6.0 cu. ft. Convection Oven
  • 6.0 cu. ft oven capacity that fits pans up to 23 in. or 9 in. wide for maximum space and convenience with everyday cooking
18,000 BTU Burner
  • Optimize every meal with professional gas cooktop power with simmer and searing capabilities
Reversible Cast Iron Griddle
  • Experience versatility in the kitchen with a pre-seasoned cast-iron griddle that fits on any grate and features a grill side for a perfect sear on steak or vegetables, and a flat side for sandwiches or hearty breakfasts
Continuous Cast Iron Grates
  • Single piece cast iron grill that is both durable and heavy duty
Porcelain Cooktop
  • Hand-finished porcelain one-piece cooktop allows for easy cleaning and maintenance of gas cooktop
Dual Oven Lights
  • Illuminate your oven space with dual lighting, controlled by a switch located on the front control panel
Premium Oven Insulation
  • 3 layered glass and aluminum mesh seal offers superior heat retention and a consistent temperature, creating perfect dishes every time
Stay-Put Oven Door Hinges
  • Designed to support the full weight of the oven door, offering additional convenience and safety
Adjustable Legs
  • Twist legs to adjust the total range height anywhere from 36" to 38 1/2"
Smooth Glide Ball-Bearing Oven Racks
  • Durable ball-bearing oven racks provide extra convenience and ease when working with larger dishes
Manual Front Control
  • Heavy-duty stainless steel knob controls with smooth action turn
LP Conversion Kit
  • Comes equipped with an LP conversion kit to convert from natural gas to liquid propane (must be done by a professional); offering versatility with your cooking preference
Professional Dual Fuel Cooking
  • Blends high-performance technology of a gas cooktop and an electric convection oven
Limited Lifetime Burner Warranty
  • Limited lifetime warranty on the Italian burners includes parts replacements for burners and burner caps, and parts and labor for the spark tip if parts prove to be defective in materials or workmanship
Additional Features
  • 1 Year Parts and Service Warranty
  • CSA Listed
