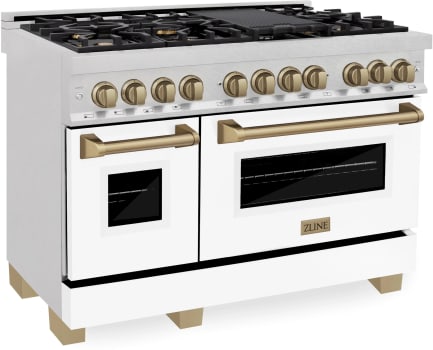

ZLINE Autograph Edition RASZWM48CB - Front View
ZLINE Autograph Edition RASZWM48CB - Front View
ZLINE Autograph Edition RASZWM48CB - Italian Brass Burner
ZLINE Autograph Edition RASZWM48CB - Porcelain Cooktop
+3

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
ZLINE Autograph Edition RASZWM48CB
Authorized
Dealer

ZLINE Autograph Edition
RASZWM48CB
48 Inch Freestanding Dual Fuel Range with 7 Sealed Italian Burners, Double Oven, 6.0 cu. ft. Total Oven Capacity, Continuous Grates, Convection Oven, Smooth Glide Racks, Stay-Put Hinges, Porcelain Cooktop, Adjustable Legs, 18,000 BTU Brass Burner, and ETL Certified: Champagne Bronze Accents

Sale
quick specs
Sabbath Mode: No
Fingerprint Resistant: Yes
Cooktop: Sealed Burner
Drawer: None
Width: 48 Inch
Depth: 27 1/2 Inch
Height: 36 Inch
Number of Burners: 7
Primary Oven Capacity: 4.2 Cu. Ft.
Continuous Grates: Yes
Convection: Yes
Self-Cleaning: No
Steam Clean: No
Glide Rack(s): Yes
View more
Color: Champagne Bronze Accents
Champagne Bronze Accents
Champagne Bronze Accents
RASZWM48CB
$5,109.99
In stock
Hurry! This deal ends in:
$5,109.99
MSRP: $7,300.00
You save $2,190.01
OR
FREE Delivery Available
In stock
You Will Also Need:
4' Gas Appliance Installation Kit
+ $39.99
50 Amp, 3 Prong Range Cord, 4 ft.
+ $24.99
Electric Cord Kit - 40 Amp, 4 ft.
+ $49.99
Have questions? Chat with us!
Product Information
Brand: ZLINE
Series: Autograph Edition
Model: RASZWM48CB
MPN: RASZ-WM-48-CB
Appearance
Fuel Type: Dual Fuel
Fuel Subtype: Natural Gas
Style: Freestanding
Color: Stainless Steel
Fingerprint Resistant: Yes
Cooktop: Sealed Burner
Cooktop Control Type: Knobs
Oven Control Type: Knobs
Viewing Window: Yes
Double Oven: Yes
Drawer: None
Clock: No
Dimensions
Width: 48 Inch
Depth: 27 1/2 Inch
Height: 36 Inch
Interior Width: 26 1/2 Inch
Interior Depth: 18 1/2 Inch
Interior Height: 14 Inch
Shabbos Compliance
Sabbath Mode: No
Smart
WiFi: No
Bluetooth: No
Capacity
Number of Burners: 7
Primary Oven Capacity: 4.2 Cu. Ft.
Secondary Oven Capacity: 1.8 Cu. Ft.
Burner
Burner 1 Output: 18000
Burner 2 Output: 10000
Burner 3 Output: 4500
Burner 4 Output: 12500
Burner 5 Output: 18000
Burner 6 Output: 10000
Burner 7 Output: 12500
Gas Cooktop Features
Continuous Grates: Yes
Cooktop Accessory: Grill
Grill: Yes
Oven Features
Digital Temperature Display: No
Convection: Yes
Self-Cleaning: No
Steam Clean: No
Racks: 4
Glide Rack(s): Yes
Broiler Pan Included: No
Interior Oven Light: Yes
Technical Details
ADA Compliant: No
LP Conversion: Yes - Kit Included
Amps: 50
Voltage: 240/220 Volts
GTIN
UPC: 810058128157
EAN: 0810058128157
Are you a Trade Pro? Join Now

Description

48 Inch Freestanding Dual Fuel Range with 7 Sealed Italian Burners
Experience Attainable Luxury® with the ZLINE Autograph Edition Dual Fuel Range in DuraSnow® stainless steel. Inspired by the elegance and snow-capped mountains of our home in Lake Tahoe, the Autograph Edition provides an elevated luxury experience. This revolutionary finish resembles the classic look of stainless steel but provides one-of-a-kind durable features such as its fingerprint-resistant finish and the ability to effortlessly diminish scratches created from everyday wear and tear. Combining the professional power and functionality of a ZLINE Range with stunning champagne bronze accents, this sophisticated line of professional ranges brings a new meaning of elegance. Create an unforgettable kitchen unique to your style with champagne bronze knobs, handles, legs, and brass burners. Choose from a variety of finishes from ZLINE's Autograph Edition, including Matte Black, Champagne Bronze, and Gold. The beauty of the Autograph Edition is infinite, just like the beauty found in Lake Tahoe and the Sierra Nevada Landscapes. From our home to yours, enjoy a luxurious experience with every Autograph Edition Dual Fuel Range assembled to order in the US.

Specifications

Overview
Mount Type:
Freestanding
Color:
DuraSnow® Stainless Steel with White Matte Door
Accent Color:
Champagne Bronze
Control Type:
Durable Front Control
Cooktop Specifications
Fuel Type:
Convection Oven- Gas Cooktop
Burner Grate Material:
Cast Iron
Number of Burners:
7
Burner Type:
Sealed
Cooktop Control Type:
Knobs
Dual Burner (x2):
18,000 BTU
Rapid Burner:
12,500 BTU
Semi-Rapid Burner (x2):
10,000 BTU
Auxiliary Burner:
4,500 BTU
Fish Burner:
12,500 BTU
Oven Specifications
Primary Oven Capacity:
4.2 Cu. Ft.
Secondary Oven Capacity:
1.8 Cu. Ft.
Total Oven Capacity:
6.0 Cu. Ft.
Oven:
Electric Convection Oven
Cleaning Type:
Manual Clean
Number of Oven Racks:
4
Oven Control Type:
Knobs
Fuel Type:
Dual Fuel
Ignition Type:
Electronic Spark
Lighting:
Dual Lighting
Electrical Specifications
Voltage:
220V-240V/60HZ/50A
Warranty
Warranty:
1 Year
Certification
ETL Certified:
Yes
Product Dimensions
Product Width:
48"
Product Depth:
27 1/2"
Product Depth with Handle:
29"
Product Height:
36"
Primary Oven Interior Width:
26 1/2"
Primary Oven Interior Depth:
18 1/2"
Primary Oven Interior Height:
14"
Secondary Oven Interior Width:
12 1/2"
Secondary Oven Interior Depth:
18 1/2"
Secondary Oven Interior Height:
14"
Product Weight:
270 lb.

Features

7 Sealed Italian Burners
  • It gives this range an elevated, timeless pop of color while providing enhanced cooking benefits such as superior heat retention and even flame distribution.
Continuous Cast-Iron Grates
  • This durable cast iron grill allows heavy pots and pans to be easily moved from one burner to another.
Convection Oven
  • Rely on precise and even cooking for every homemade dish with a gas stove and electric convection oven.
Smooth Glide Racks
  • Add convenience and ease to everyday cooking.
Stay-Put Hinges
  • Designed to support the weight of an oven door and to stay put. These are fluid and stable, ensuring a premium feel.
Porcelain Cooktop
  • Assembled with the highest quality materials, this range offers a durable, scratch-resistant one-piece porcelain cooktop and durable cast-iron grates.
Adjustable Legs
  • Twist legs to adjust total range height anywhere from 36" to 38 1/2".
Dual Oven Lighting
  • Dual oven lights, controlled by a switch on the front control panel, for illuminated oven space.
Triple Layer Glass Oven Window
  • An oven with three layers of glass and an aluminum mesh seal for premium oven insulation.
DuraSnow Stainless Steel Finish
  • Non-directional DuraSnow stainless steel is an everlasting finish that is corrosion, smudge, and fingerprint resistant.
An Industry First - Limited Lifetime Warranty
  • Limited lifetime warranty on the Italian burners includes parts replacements for burners, burner caps, and parts and labor for the spark tip if parts prove to be defective in materials or workmanship.
Oven Capacity
  • 6.0 Cu. Ft.
Other Features
  • Double Oven
  • 18,000 BTU Brass Burner
  • Electronic Spark Ignition
  • LP Conversion Kit - Included
