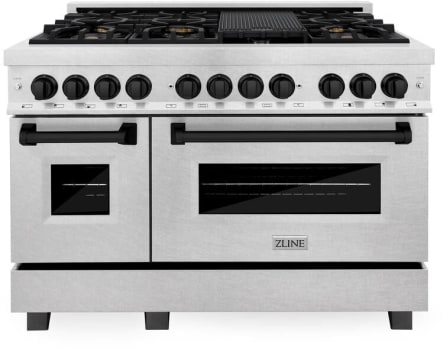

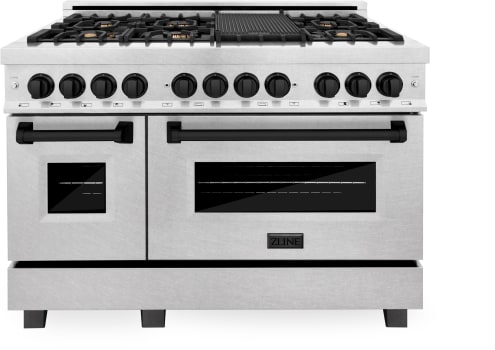

ZLINE Legacy Series RASZSN48MB - 48 Inch Freestanding Dual Fuel Range
ZLINE Legacy Series RASZSN48MB - 48 Inch Freestanding Dual Fuel Range
ZLINE Legacy Series RASZSN48MB - 48 Inch Freestanding Dual Fuel Range
ZLINE Legacy Series RASZSN48MB - 48 Inch Freestanding Dual Fuel Range
+18

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
ZLINE Legacy Series RASZSN48MB
Authorized
Dealer

ZLINE Legacy Series
RASZSN48MB
48 Inch Freestanding Dual Fuel Range with 7 Sealed Burners, 6.0 Cu. Ft. Convection Oven, Cast-Iron Griddle, Stay-Put Hinges, Oven Lights, and Smooth Glide Oven Racks: Matte Black Accents

Top Quality Store on Google
Sale
quick specs
Sabbath Mode: No
Fingerprint Resistant: Yes
Cooktop: Sealed Burner & Griddle
Drawer: None
Width: 47 3/4 Inch
Depth: 27 1/2 Inch
Height: 36 1/8 Inch
Alexa: No
Google Home: No
Number of Burners: 7
Primary Oven Capacity: 4 Cu. Ft.
Continuous Grates: Yes
Induction: No
Convection: Yes
Self-Cleaning: No
Steam Clean: No
Glide Rack(s): Yes
Temperature Probe: No
View more
Color: Matte Black Accents
Champagne Bronze Accents
Champagne Bronze Accents
RASZSN48CB
$5,839.99
In stock
Matte Black Accents
Matte Black Accents
RASZSN48MB
$5,839.99
In stock
Hurry! This deal ends in:
$5,839.99
MSRP: $7,300.00
You save $1,460.01
OR
FREE Delivery Available
In stock
In Stock Items labeled IN STOCK will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items are IN STOCK, the order will ship when all items are available unless you select the SPLIT SHIP option in checkout. IN STOCK may not apply to multiple quantities of the same product.
You Will Also Need:
4' Gas Appliance Installation Kit
+ $39.99
Electric Cord Kit - 40 Amp, 4 ft.
+ $49.99
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: ZLINE
Series: Legacy Series
Model: RASZSN48MB
MPN: RASZ-SN-48-MB
Appearance
Fuel Type: Dual Fuel
Style: Freestanding
Color: Satin Stainless Steel
Trim Color: Matte Black
Fingerprint Resistant: Yes
Stainless Steel Handle: No
Cooktop: Sealed Burner & Griddle
Cooktop Control Type: Knobs
Oven Control Type: Knobs
Viewing Window: Yes
Double Oven: Yes
Drawer: None
Clock: No
Downdraft Venting: No
Dimensions
Width: 47 3/4 Inch
Depth: 27 1/2 Inch
Height: 36 1/8 Inch
Interior Width: 24 7/8 Inch
Interior Depth: 17 3/4 Inch
Interior Height: 16 Inch
Shabbos Compliance
Sabbath Mode: No
Certification: None
Smart
WiFi: No
Bluetooth: No
Alexa: No
Google Home: No
Remote Control: No
Remote Monitoring: No
Remote Diagnostics: No
Dash Replenishment: No
AI Technology: No
Capacity
Number of Burners: 7
Primary Oven Capacity: 4 Cu. Ft.
Secondary Oven Capacity: 2 Cu. Ft.
Burner
Simmer Burner: Yes
Power Burner: Yes
Burner 1 Output: 10000
Burner 2 Output: 12500
Burner 3 Output: 10000
Burner 4 Output: 18000
Burner 5 Output: 4500
Burner 6 Output: 18000
Burner 7 Output: 12500
Gas Cooktop Features
Continuous Grates: Yes
Cooktop Accessory: Griddle
Grill: Yes
Electric Cooktop Features
Induction: No
Oven Features
Digital Temperature Display: No
Timer: No
Delay Bake: No
Fast Preheat: No
No Preheat: No
Convection: Yes
Proof Mode: No
Self-Cleaning: No
Steam Clean: No
Racks: 4
Glide Rack(s): Yes
Temperature Probe: No
Broiler Element Location: Top
Broiler Pan Included: No
Interior Oven Light: Yes
Oven Camera: No
Removable Door: Yes
Air Fry: No
Sous Vide: No
Steam Assist: No
Soft Close: No
Technical Details
ADA Compliant: No
Energy Star Rated: No
Oven BTUs: 12,500
LP Conversion: Yes - Kit Included
Amps: 30
Voltage: 240 Volts
GTIN
UPC: 810058127990
Are you a Trade Pro? Join Now

Description

48 Inch Freestanding Dual Fuel Range with 7 Sealed Burners
Luxury isn’t meant to be left desired—it’s meant to be attainable. The ZLINE Autograph Edition 48 in. 6.0 cu. ft. Legacy Dual Fuel Range with 7 Burner Gas Cooktop and 2 Electric Ovens in Satin Stainless Steel and Matte Black Accents (RASZ-SN-48-MB) pairs a powerful gas cooktop with 7 Italian-crafted burners, a large electric convection oven, a small bake and broil oven, Landscape oven door window designs, and elegant matte black knobs and handles. With innovative features designed to enhance your kitchen’s capability, ZLINE Legacy Dual Fuel Ranges provide a professional culinary experience by pairing unmatched performance with timeless style.

Specifications

Overview
Mount Type:
Freestanding
Color/ Finish Family:
Satin Stainless Steel
Hardware Color/Finish:
Matte Black
Control Type:
Durable Front Control
Cooktop Specifications
Fuel Type:
Convection Oven- Gas Cooktop
Burner Grate Material:
Cast Iron
Number of Burners:
7
Burner Type:
Sealed
Cooktop Control Type:
Knobs
Back Left Burner BTU:
10,000
Back Left Middle Burner BTU:
12,500
Back Right Burner BTU:
10,000
Front Left Burner BTU:
18,000
Front Left Middle Burner BTU:
4,500
Front Right Burner BTU:
18,000
Fish Burner BTU:
12,500
Total BTUs:
85,500
Oven Specifications
Oven Capacity:
(cu. ft.)
Oven:
Electric Convection Oven
Cleaning Type:
Manual Clean
Number of Oven Racks:
4
Oven Control Type:
Knobs
Fuel Type:
Dual Fuel
Ignition Type:
Electronic Spark
Lighting:
Dual Lighting
Electrical Specifications
Voltage:
240V
Frequency:
60Hz
Amps:
30A
Warranties & Certifications
Certifications and Listings:
CSA Listed
Manufacturer Warranty:
1 Year Parts and Service, Limited Lifetime Warranty On Burners
Product Dimensions & Weight
Dimensions:
47 3/4" W x 27 1/2" D x 36 1/8" H
Product Depth:
27 1/2"
Product Width:
47 3/4"
Product Height:
36 1/8"
Oven Interior Dimensions:
24 7/8" W x 17 3/4" D x 16" H
Depth With Door(s) Open 90 Degrees:
41 51/64"
Range Size (Width):
48 in.
Product Weight:
270 lbs.

Features

7 Italian-Made Sealed Burners
  • Industry-leading gas cooktop includes 7 hand-cast burners, including an expansive fish burner, with 1,000 - 18,000 BTUs of cooking power
6.0 Cu. Ft. Convection Oven
  • A dual oven capacity of 6.0 cu. ft fits pans up to 23 in. or 9 in. wide for maximum space and convenience with everyday cooking
Cast-Iron Griddle
  • Perfectly sear meats and veggies with a pre-seasoned cast iron griddle that features superior heat retention and even heat distribution
Professional Dual Fuel Cooking
  • Optimize every meal with even heat distribution thanks to high-performance technology of a gas cooktop and a large electric convection oven
Manual Clean
  • Hand-finished porcelain one-piece cooktop allows for easy cleaning and maintenance
Premium Oven Insulation
  • Triple layered glass and an aluminum mesh seal on both doors offers superior heat retention and consistent temperatures
StayPut Oven Door Hinges
  • Designed to support the full weight of both oven doors, offering additional convenience and safety
Halogen Oven Lights
  • Illuminate both oven spaces with 3 halogen lights, controlled by a switch located on the front control panel
Landscape Oven Window
  • ZLINE Legacy Series ranges feature a sleek Landscape oven door design that provides ample viewing space to ensure your dishes are perfectly cooked
Smooth Glide Ball-Bearing Oven Racks
  • 4 durable ball-bearing oven racks provide extra convenience and ease when working with larger dishes
LP Conversion Kit
  • Comes equipped with an LP conversion kit to convert the cooktop from natural gas to liquid propane (must be done by a professional), offering versatility with your cooking preference
Adjustable Range Height
  • Easy adjustable legs let you modify the total range height anywhere from 36 inches to 38.5 inches
Additional Assembly Required
  • This product ships in multiple boxes and will require minimal assembly upon arrival
Electrical Requirements
  • Requires a dedicated 240V, 60Hz, 30-amp circuit with a NEMA 14-50 4-wire plug system
Exclusive Knobs and Handle
  • Customize your ZLINE Autograph Edition Dual Fuel Range with elegant Matte Black knob and handle accents
Satin Stainless Steel
  • ZLINE's Satin Stainless Steel finish is a circular, non-directional, professionally styled stainless steel that is rust, scratch, and fingerprint-resistant
ZLINE Legacy Series
  • The Legacy Professional Range Series represents the foundation for ZLINE’s family-focused mission of attainable luxury
Industry First Lifetime Burner Warranty
  • Limited lifetime warranty on ZLINE Italian burners includes part replacements for burners and burner caps, and parts and labor for spark tips if parts prove to be defective in materials or workmanship
Manufacturer Warranty
  • 1-year parts and service warranty
Additional Features
  • Porcelain Cook Top
  • Manual Front Control
  • ETL Listed
