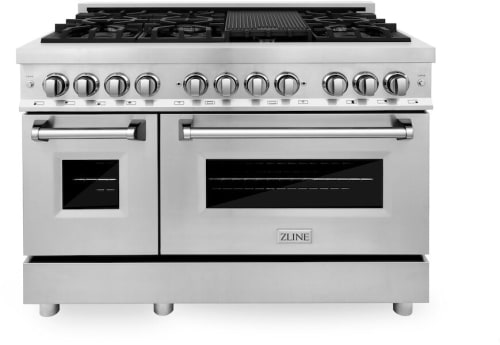

ZLINE Legacy Series RA48 - 48 Inch Freestanding Professional Dual Fuel Range

+23

Image Disclaimer

Authorized

Dealer

ZLINE Legacy Series

RA48

48 Inch Freestanding Dual Fuel Range with 7 Sealed Burners, 6 Cu. Ft. Oven Capacity, Cast-Iron Griddle, Convection Bake, and Smooth Glide Oven Racks: Stainless Steel

4.7

Average rating of
431 reviews

Top Quality Store on Google

Sale

quick specs

Sabbath Mode: No

Fingerprint Resistant: No

Cooktop: Sealed Burner & Griddle

Drawer: None

Width: 47 3/4 Inch

Depth: 27 1/2 Inch

Height: 36 1/8 Inch

Alexa: No

Google Home: No

Number of Burners: 7

Primary Oven Capacity: 4.2 Cu. Ft.

Continuous Grates: Yes

Induction: No

Convection: Yes

Self-Cleaning: No

Steam Clean: No

Glide Rack(s): Yes

Temperature Probe: No

Color: Stainless Steel

Stainless Steel

RA48

$4,499.99

Snow Finished Stainless Steel

Black Stainless Steel

RAB48

$7,099.99

Hurry! This deal ends in:

^$4,499^.99

MSRP: ~~$5,999.99~~

You save $1,500.00

You Will Also Need:

4' Gas Appliance Installation Kit

+ $39.99

Electric Cord Kit - 40 Amp, 4 ft.

+ $49.99

Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information

Brand: ZLINE

Series: Legacy Series

Model: RA48

Appearance

Fuel Type: Dual Fuel

Fuel Subtype: Natural Gas

Style: Freestanding

Color: Stainless Steel

Trim Color: Stainless Steel

Fingerprint Resistant: No

Stainless Steel Handle: Yes

Cooktop: Sealed Burner & Griddle

Cooktop Control Type: Knobs

Oven Control Type: Knobs

Viewing Window: Yes

Double Oven: Yes

Drawer: None

Clock: No

Dimensions

Width: 47 3/4 Inch

Depth: 27 1/2 Inch

Height: 36 1/8 Inch

Interior Width: 24 7/8 Inch

Interior Depth: 17 3/4 Inch

Interior Height: 16 Inch

Shabbos Compliance

Sabbath Mode: No

Smart

WiFi: No

Bluetooth: No

Alexa: No

Google Home: No

Remote Control: No

Remote Monitoring: No

Remote Diagnostics: No

Dash Replenishment: No

Smart Accessory Required: No

AI Technology: No

Capacity

Number of Burners: 7

Primary Oven Capacity: 4.2 Cu. Ft.

Secondary Oven Capacity: 1.8 Cu. Ft.

Burner

Power Burner: Yes

Burner 1 Output: 10000

Burner 2 Output: 10000

Burner 3 Output: 18000

Burner 4 Output: 18000

Burner 5 Output: 12500

Burner 6 Output: 4500

Burner 7 Output: 12500

Gas Cooktop Features

Continuous Grates: Yes

Cooktop Accessory: Reversible Grill/Griddle

Grill: Yes

Griddle: Yes

French Top: No

Electric Cooktop Features

Induction: No

Oven Features

Digital Temperature Display: No

Timer: No

Delay Bake: No

Fast Preheat: No

No Preheat: No

Convection: Yes

Proof Mode: No

Self-Cleaning: No

Steam Clean: No

Racks: 4

Glide Rack(s): Yes

Temperature Probe: No

Broiler Element Location: Top

Broiler Pan Included: No

Interior Oven Light: Yes

Oven Camera: No

Removable Door: No

Air Fry: No

Sous Vide: No

Steam Assist: No

Soft Close: No

Technical Details

ADA Compliant: No

Energy Star Rated: No

LP Conversion: Yes - Kit Included

Amps: 40

Voltage: 240 Volts

GTIN

UPC: 817299022879

Description
Specifications
Features
Reviews

Description

48 Inch Freestanding Dual Fuel Range with 7 Sealed Burners
The ZLINE 48 in. 6.0 cu. ft. Legacy Dual Fuel Range with 7 Burner Gas Cooktop and 2 Electric Ovens in Stainless Steel (RA48) pairs a powerful gas cooktop with 7 Italian-crafted burners, a large electric convection oven, and a small bake and broil oven with Landscape oven door window designs. With innovative features designed to enhance your kitchen’s capability, ZLINE Legacy Dual Fuel Ranges provide a professional culinary experience by pairing unmatched performance with timeless style.

Specifications

Primary Oven (Right)

Oven Interior Depth:

18.5"

Oven Interior Height:

14"

Oven Interior Width:

26.5"

Oven Capacity:

4.0 Cu. Ft.

Oven Features:

Broiler in Oven,Temperature Control

Oven Rack:

2 Glide Racks

Secondary Oven (Left)

Oven Interior Depth:

18.5"

Oven Interior Height:

14"

Oven Interior Width:

12.5"

Oven Capacity:

2.0 Cu. Ft.

Burner Specifications

Burner Grate Material:

Cast Iron

Burner Type:

Sealed

Back Left Burner BTU:

10,000

Back Left Middle Burner BTU:

12,500

Back Right Burner BTU:

10,000

Front Left Burner BTU:

18,000

Front Left Middle Burner BTU:

4,500

Front Right Burner BTU:

18,000

Fish Burner BTU:

12,500

Total BTUs:

85,500

Additional Specifications

Material:

304 Grade Stainless Steel

Capacity of Oven(s):

6.0 Cu. Ft.

Cleaning Type:

Self Clean

Color of Cooktop:

Black

Control Type:

Manual

Controls Location:

Front Control

Cooktop Features:

Continuous Grates, LP Convertible,

Fuel Type:

Gas

Ignition Type:

Continuous Spark

Included:

Gas Connector, Hardware, Installation Kit, Power Cord

Range Type:

Freestanding

Electrical Specifications

Voltage:

220V

Frequency:

60Hz

Amperage:

30A

Warranty / Certifications

Certifications and Listings:

ETL Listed

Manufacturer Warranty:

1 Year Parts Warranty

Dimensions & Weight

Dimensions:

47.75 in. W x 27.5 in. D x 36.125 in. H

Product Depth (in.):

27.50

Product Width (in.):

47.75

Product Height (in.):

36.13

Oven Interior Dimensions (in):

24.875 in. W x 17.75 in. D x 16 in. H

Depth With Door(s) Open 90 Degrees (in.):

41.8

Range Size (Width):

48 in.

Product Weight:

275 lbs.

Features

7 Italian-Made Sealed Burners

Industry-leading gas cooktop includes 7 hand-cast burners, including an expansive fish burner, with 1,000 - 18,000 BTUs of cooking power

6 Cu. Ft. Oven Capacity

A dual oven capacity of 6.0 cu. ft fits pans up to 23 in. or 9 in. wide for maximum space and convenience with everyday cooking

Cast-Iron Griddle

Perfectly sear meats and veggies with a pre-seasoned cast iron griddle that features superior heat retention and even heat distribution

Minimal Cleaning

Hand-finished porcelain one-piece cooktop allows for easy cleaning and maintenance

StayPut Oven Door Hinges

Designed to support the full weight of both oven doors, offering additional convenience and safety

Landscape Oven Window

ZLINE Legacy Series ranges feature a sleek Landscape oven door design that provides ample viewing space to ensure your dishes are perfectly cooked

Premium Oven Insulation

Triple layered glass and an aluminum mesh seal on both doors offers superior heat retention and consistent temperatures

Halogen Oven Lights

Illuminate both oven spaces with 3 halogen lights, controlled by a switch located on the front control panel

Smooth Glide Ball-Bearing Oven Racks

4 durable ball-bearing oven racks provide extra convenience and ease when working with larger dishes

Stunning Stainless Steel

Featuring high-grade 304 grade stainless steel with durable cast iron grates that exceed industry standards

Adjustable Range Height

Easy adjustable legs let you modify the total range height anywhere from 36 inches to 38.5 inches

LP Conversion Kit

Comes equipped with an LP conversion kit to convert the cooktop from natural gas to liquid propane (must be done by a professional), offering versatility with your cooking preference

Electrical Requirements

Requires a dedicated 240V, 60Hz, 30-amp circuit with a NEMA 14-50 4-wire plug system

Professional Dual Fuel Cooking

Optimize every meal with even heat distribution thanks to high-performance technology of a gas cooktop and a large electric convection oven

ZLINE Legacy Series

The Legacy Professional Range Series represents the foundation for ZLINE’s family-focused mission of attainable luxury

Industry First Lifetime Burner Warranty

Limited lifetime warranty on ZLINE Italian burners includes part replacements for burners and burner caps, and parts and labor for spark tips if parts prove to be defective in materials or workmanship

Manufacturer Warranty

1-year parts and service warranty

Reviews

Manuals & Guides

Specification Guide

User Manual

Installation Guide

ZLINE Legacy Series RA48 48 Inch Freestanding Dual Fuel Range with 7 Sealed Burners, 6 Cu. Ft. Oven Capacity, Cast-Iron Griddle, Convection Bake, and Smooth Glide Oven Racks: Stainless Steel
