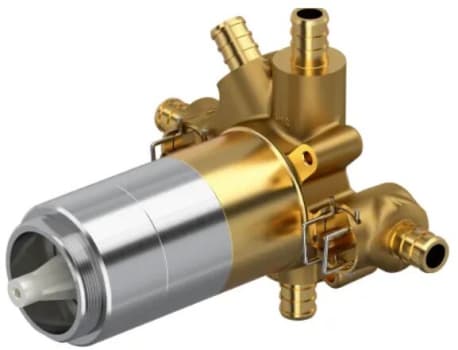

Rohl Perrin and Rowe Collection R45SPEX - 1/2 Inch Thermostatic Rough-in Valve
Rohl Perrin and Rowe Collection R45SPEX - 1/2 Inch Thermostatic Rough-in Valve

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Rohl Perrin and Rowe Collection R45SPEX
Authorized
Dealer

Rohl Perrin and Rowe Collection
R45SPEX
1/2 Inch Thermostatic Rough-in Valve with PEX Connection Type with up to 3 Independent and 2 Shared Functions

Top Quality Store on Google
$246.00
MSRP: $328.00
You save $82.00
Have questions? Chat with us!
Product Information
Brand: Rohl
Series: Perrin and Rowe Collection
Model: R45SPEX
Features
Style: Traditional
Finish: Brass
GTIN
UPC: 883186126296
EAN: 0883186126296
Are you a Trade Pro? Join Now

Description

1/2 Inch Thermostatic Rough-in Valve
The House of Rohl brands bring the spa experience home with an exclusive and complete shower offering. Showerheads that deliver a decadent deluge. Handshowers and body sprays immerse the body in soothing rejuvenation. Customers can select designs to achieve the aesthetics and performance they desire — from traditional designs to sleek modern lines, and everything in between. Shower selections with style and quality as well as accessories that add a finishing touch to any décor.

Specifications

Overview
Height:
4.25 in.
Max Deck Thickness:
3.25 in.
Water Connection:
1/2"
Service Stops Included:
Yes
Volume Control:
No
Material:
Brass
Number Of Ports:
5
Valve Type:
Pressure Balanced, Thermostatic
Water Connection Type:
PEX
Approved for Commercial Use:
Yes
Commercial Warranty:
1 Year Limited
Manufacturer Warranty:
Limited Lifetime

Features

Volume Control
  • Delivers volume control, temperature memory, and multi-function capability all from one valve, simplifying installation and eliminating clutter to deliver the customized experience you desire
Various Pressure Balance
  • Combines both thermostatic and pressure balance technologies in one valve
  • No need to plumb in a separate shut-off or diverter valve, allowing for a more streamlined shower design with less clutter on the wall
Temperature Memory
  • Set it and forget it temperature memory
  • Supports up to 5 functions allowing you to run 3 independent functions with 2 running at the same time
  • Important: Shared functionality dependent on the cartridge included with your selected trim.
Other Features
  • Recommended inlet connection: 1/2" NPT
  • Compatible with all Perrin & Rowe, Riobel, and Rohl trims ending in -45 for shared and -47 for non-shared functionality, sold separately
  • Flow rate of 6.3 GPM at 60 PSI for an immersive shower experience
  • Service stop allows the valve to be serviced without shutting off the water supply to the entire house
  • Test cap enables the plumber to test valve connections without risk of potential damage to the valve cartridge
  • Solid brass construction delivers the utmost in beauty, durability and long-lasting performance
  • Purchase with confidence knowing that this product is backed by limited lifetime warranty
