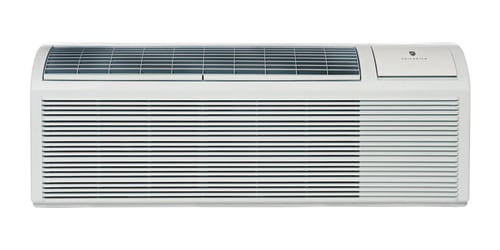

Friedrich ZoneAire Series PZH15K5SC - 14500 BTU Packaged Terminal Air Conditioner with Heat Pump
Friedrich ZoneAire Series PZH15K5SC - 14500 BTU Packaged Terminal Air Conditioner with Heat Pump
Friedrich ZoneAire Series PZH15K5SC - 14500 BTU Packaged Terminal Air Conditioner

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Friedrich ZoneAire Series PZH15K5SC
Authorized
Dealer

Friedrich ZoneAire Series
PZH15K5SC
14,500 BTU Packaged Terminal Air Conditioner with Heat Pump, 10.0 EER, 4.29 Pts/Hr Moisture Removal, and Diamonblue™ Advanced Corrosion Protection

Top Quality Store on Google
quick specs
Width: 42 Inch
Depth: 21 Inch
Height: 16 Inch
Cooling Capacity (BTU): 14,500 BTU
Heating Capacity (BTU): 13,600 BTU
WiFi: No
Chassis Type: Thru the Wall
Control Type: Digital
Plug Type: 6-30P
View more
$1,179.00
OR
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Friedrich
Series: ZoneAire Series
Model: PZH15K5SC
Dimensions
Width: 42 Inch
Depth: 21 Inch
Height: 16 Inch
Capacity
Cooling Capacity (BTU): 14,500 BTU
Heating Capacity (BTU): 13,600 BTU
Smart
WiFi: No
Features
Type: Wall
Chassis Type: Thru the Wall
Maximum Cooling Watts: 1,450 Watts
Maximum Heating Amps: 5.8 Amps
Maximum Heating Watts: 1,245 Watts
Heat: Heat Pump
Energy Efficiency Rating: 10
Control Type: Digital
PTAC: Yes
Indoor CFM, High: 471 CFM
Indoor CFM, Low: 412 CFM
Vent CFM: 75 CFM
Refrigerant Type: R-32
Technical Details
Energy Star Rated: No
ADA Compliant: No
Plug Type: 6-30P
Voltage: 230/208 Volts
Are you a Trade Pro? Join Now

Description

14500 BTU Packaged Terminal Air Conditioner with Heat Pump
This PZH15K5SC is a 14500/14300 BTU cooling PTAC with 13600/13200 BTUs reverse cycle heat pump. The heat pump mode will provide instant heat, which quickly heats the room to the desired temperature for increased comfort for you and your guests. Friedrich PTACs are quiet, efficient and reliable. They can be used in both commercial and residential applications. This unit is backed with the reliability you have come to expect from a company like Friedrich, experts in room air conditioning. It includes a 30 amp power cord which provides 5.0 kW of electric heat. And has an EER of 10.0 making it an efficient system to cool your space. It uses 230/208V electricity and has a 2 speed fan plus auto for better circulation.

Specifications

Performance Data
Cooling BTU:
14500/14300
Cooling Watts:
1450/1430
Energy Efficient Ratio, EER:
10.0
Heater Size (kW):
5.0
Reverse Heating BTU:
13600/13200
Heating Watts:
1245/1210
COP:
3.2/3.2
Moisture Removal (pints/hr.):
4.29/4.4
Sensible Heat Ratio:
TBD
Electrical Data
Voltage(1 PHASE, 60 Hz):
230/208
Volt Range:
253-187
Current (Amps):
6.3/6.9
Reverse Heat. Amps:
5.4/5.8
Power Factor:
0.99/0.98
Compressor LRA:
34.7
Compressor RLA:
6.4
Outdoor Fan Motor, HP:
0.09
Airflow Data
Indoor CFM, HIGH:
471
Indoor CFM, LOW:
412
Vent CFM:
75
Physical Data
R-32 Charge (oz.):
27.5
Net Weight (lbs.):
108
Shipping Weight (lbs.):
190

Features

Durable Construction
  • Superior materials and design reduce sound levels and improve overall guest satisfaction.
  • Aluminum endplates reduce corrosion of the outdoor coil.
  • Galvanized zinc coated steel wall sleeve and steel base pan undergo an 11-step preparation process, are powder coated with a polyester finish, and are oven-cured at high temperature for exceptional durability.
  • Factory run-tested units reduce problems in the field.
  • Internal diagnostic program can alert maintenance to component failures or operating problems.
  • Room freeze protection initiates heat if the temperature falls to 50°F inside an unoccupied guest room.
  • Random compressor restart protects electrical systems from overload when power is restored.
  • Tamper-resistant, anodized stamped aluminum grille withstands chalking and oxidation.
  • Break proof control door design maintains the integrity of the unit.
  • Indoor coil frost sensor protects the compressor to lengthen the life of the unit.
Energy Efficient & Energy Smart
  • Super-efficient refrigeration design with EERs up to 12.0 and COP up to 3.55.
  • Exceptional FriedrichLink® energy management thermostats available (wired & wireless) with integrated occupancy sensor, five distinct energy presets and comprehensive remote management capability.*
  • Energy efficient heat pump models available in our complete line.
  • Electronic defrost control ensures more run time in efficient heat pump mode.
  • Electronic temperature limiting to adjust low/ high temperature range limits for reduced energy usage.
  • Slinger ring technology in condensate removal system cools the coil and increases efficiency.
  • Central desk control ready to allow hotel owners to control units from a central location.
FreshAire® IAQ Ready
  • A full complement of Indoor Air Quality Products has been certified through installation and testing to ensure exceptional air quality is achieved when FreshAire® IAQ accessories are added.
  • Dehumidification removes up to 3.0 pints/hour of moisture in cool mode to improve comfort and reduce the chance of mold and mildew growth.
  • Fresh air damper brings in fresh outside air when desired.
  • Intuitive unit controls are user friendly with easy-to-read LED display that can show either set-point or actual room temperature as selected by owner.
  • Air filters are easy to access and washable.
  • Instant Heat heat pump mode quickly heats a room to the desired temperature for increased comfort.
  • Automatic periodic sampling of room temperature every nine minutes to ensure desired conditions are maintained.
  • Reversible indoor air louvers to easily change direction of airflow.
Diamonblue Advanced Corrosion Protection®
  • Indoor and outdoor coils are coated to resist corrosion in harsh outdoor environments.
Ease of Maintenance & Installation
  • Modular product design ensures easy access to key components for cleaning and repairs, including washable, lift-out air filters.
  • Remote thermostat pop-out wiring module allows easier wiring and unit change out without rewiring thermostat.
  • Surehold Front Cover System® securely attaches the front each time.
  • May be installed flush with the floor.
Sound Reduction Features
  • Two permanently lubricated fan motors for added durability and reduced sound levels indoors.
  • Quiet, efficient rotary compressor mounted with vibration isolators to keep the compressor running smoothly and quietly.
  • High-density insulation and steel inner wall block outdoor noise.
  • Tangential blower wheel creates a wide path air flow that reaches the furthest corner of the guest room more quietly than conventional fans.
Warranty and Service
  • 2-year full warranty on parts and labor and 5-year limited warranty.
  • Nationwide service network and U.S.-based Friedrich expert technical team ensures you get fast, knowledgeable service.
Key Features
QuietMaster®
QuietMaster® Technology is designed for exceptional quiet performance, utilizing premium components to operate up to 45% quieter than competing products.
