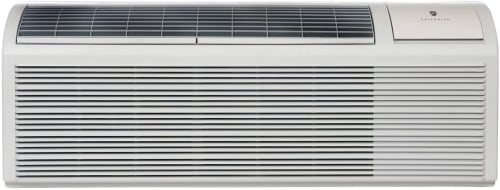

Friedrich ZoneAire Series PZE09R3SB - Front View
Friedrich ZoneAire Series PZE09R3SB - Front View
Friedrich ZoneAire Series PZE09R3SB - PTAC
Friedrich ZoneAire Series PZE09R3SB - Lifestyle View
+4

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Friedrich ZoneAire Series PZE09R3SB
Authorized
Dealer

Friedrich ZoneAire Series
PZE09R3SB
Electric Heat Packed Terminal Air Conditioner with Diamonblue™ Advanced Corrosion Protection, Surehold Front Cover System®, Optional FriedrichLink® Thermostat, Antimicrobial Air Filters, and Tamper-Resistant Aluminum Grille: 9200 Cooling BTU

Top Quality Store on Google
quick specs
Width: 42 Inch
Depth: 21 1/2 Inch
Height: 16 Inch
Cooling Capacity (BTU): 9,200 BTU
WiFi: No
Remote Control: No
Remote Monitoring: No
Chassis Type: Thru the Wall
Wall Sleeve Included: No
Remote Control Included: No
Plug Type: 7-20P
View more
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Friedrich
Series: ZoneAire Series
Model: PZE09R3SB
Dimensions
Width: 42 Inch
Depth: 21 1/2 Inch
Height: 16 Inch
Capacity
Smart
WiFi: No
Remote Control: No
Remote Monitoring: No
Features
Type: Wall
Chassis Type: Thru the Wall
Wall Sleeve Included: No
Maximum Cooling Amps: 4.2 Amps
Maximum Cooling Watts: 800 Watts
Heat: Electric Heat
Energy Efficiency Rating: 11.5
Remote Control Included: No
PTAC: Yes
Window Type: Standard
Indoor CFM, High: 400 CFM
Indoor CFM, Low: 290 CFM
Vent CFM: 75 CFM
Technical Details
Energy Star Rated: No
ADA Compliant: No
Plug Type: 7-20P
Voltage: 265 Volts
GTIN
UPC: 724587435733
Are you a Trade Pro? Join Now

Description

Packed Terminal Air Conditioner with Diamonblue Advanced Corrosion Protection®
Friedrich brings reliable cooling and heating with low operational sounds with the Packed Terminal Air Conditioner with Diamonblue Advanced Corrosion Protection®. Built with durable materials and the highest quality of components, this PTAC is made with Diamonblue Advanced Corrosion Protection® to ensure longevity even in the harshest environments. Its modular design makes maintenance ans service fast and effortless as it lets you access key components easily. You can additionally choose to control the temperature both through wired or wireless thermostats for added convenience. Keep your air clean with its anti-bacterial air filters.

Important Notes:
Sleeves are sold and shipped separately to accommodate new construction and replacement requirements.
Fits standard PTAC sleeves without the added expense of a baffle kit.

Specifications

Performance Data
Cooling BTU:
9200
Cooling Watts:
800
EER:
11.5
Heater Size (kW):
3.6
Moisture Removal (Pints/hr):
1.6
Sensible Heat Ratio:
0.82
Electrical Data
Voltage (1 PHASE, 60 Hz):
265
Volt Range:
292-239
Current (Amps):
4.2
Power Factor:
0.99
Compressor LRA:
18.2
Compressor RLA:
3.0
Outdoor Fan Motor (HP):
0.1
Airflow Data
Indoor CFM, HIGH:
400
Indoor CFM, LOW:
290
Vent CFM:
75
Physical Data
Sleeve Dimensions (HxWxD):
16" x 42" x 13 3/4"
Dimensions with Front (HxWxD):
16"x 42"x 21 1/2"
Cut Out Dimensions (HxW):
16 1/4" x 42 1/4"
R-410A Charge (Oz.):
31.4

Features

Diamonblue Advanced Corrosion Protection®
  • Protects the outdoor coil against deterioration and extends the life of the unit especially in harsh coastal environments.
Surehold Front Cover System®
  • Securely attaches the front each time.
Optional FriedrichLink® Thermostat
  • Comes with integrated occupancy sensor, five distinct energy presets and comprehensive remote management capability. Sold separately.
Antimicrobial Air Filters
  • Proven to prevent mold and bacterial growth in laboratory testing. Washable, reusable and easily accessed from the top of the unit without the removal of the front cover.
Tamper-Resistant Aluminum Grille
  • Anodized stamped aluminum grille withstands chalking and oxidation.
Dehumidification
  • Removes up to 3.0 pints/hour of moisture in cool mode to improve comfort and reduce the chance of mold and mildew growth.
Internal Diagnostic Program
  • Can alert maintenance to component failures or operating problems. Fourteen numeric service error codes stored in memory facilitate rapid unit diagnostics.
Slinger Ring Technology
  • Slinger ring technology in condensate removal system cools the
  • coil and increases efficiency.
Quiet, Efficient Rotary Compressor
  • Mounted with vibration isolators to keep the compressor running smoothly and quietly.
Tangential blower wheel
  • Creates a wide path air flow that reaches the furthest corner of the guest room more quietly than conventional fans.
Other Features
  • Fresh air damper
  • Two permanently lubricated fan motors
  • Reversible indoor air louvers
  • Aluminum endplates
  • Galvanized zinc coated steel wall sleeve and steel base pan
  • Room freeze protection
  • Random compressor restart
  • Break-proof control door design
  • Indoor coil frost sensor
  • Electronic defrost control
  • Automatic periodic sampling of room temperature
  • May be installed flush with the floor
