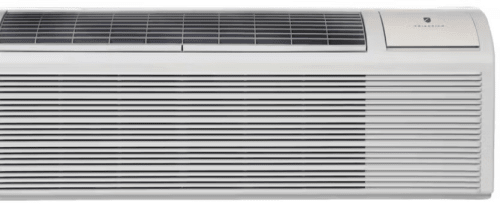

Friedrich PVH12K3FC - 12,000 BTU Packaged Terminal Air Conditioner
Friedrich PVH12K3FC - 12,000 BTU Packaged Terminal Air Conditioner
Friedrich PVH12K3FC - 12,000 BTU Packaged Terminal Air Conditioner
Friedrich PVH12K3FC - 12,000 BTU Packaged Terminal Air Conditioner
+1

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Friedrich PVH12K3FC
Authorized
Dealer

Friedrich
PVH12K3FC
12,000 BTU Packaged Terminal Air Conditioner with 11,500 Reverse Heating Capacity, MUA, DiamonBlue Advanced Corrosion Protection, 12.08 EER, 1.9 Pts/ Hr Dehumidification, Dual Motors and 230/208 Voltage

Top Quality Store on Google
quick specs
Width: 42 Inch
Depth: 21 Inch
Height: 16 Inch
Cooling Capacity (BTU): 12,000 BTU
Heating Capacity (BTU): 11,500 BTU
WiFi: No
Remote Monitoring: No
Control Type: Digital
Plug Type: 6-20P
View more
$1,799.00
MSRP: $1,829.00
You save $30.00
OR
FREE Delivery Available
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Friedrich
Model: PVH12K3FC
Dimensions
Width: 42 Inch
Depth: 21 Inch
Height: 16 Inch
Capacity
Cooling Capacity (BTU): 12,000 BTU
Heating Capacity (BTU): 11,500 BTU
Smart
WiFi: No
Remote Monitoring: No
Features
Type: Wall
Maximum Cooling Amps: 4.99 Amps
Maximum Cooling Watts: 1,040 Watts
Maximum Heating Amps: 4.23 Amps
Maximum Heating Watts: 925 Watts
Heat: Heat Pump
Energy Efficiency Rating: 12.08
Control Type: Digital
PTAC: Yes
Window Type: Standard
Indoor CFM, High: 750 CFM
Indoor CFM, Low: 560 CFM
Refrigerant Type: R-32
Technical Details
Energy Star Rated: No
ADA Compliant: No
Plug Type: 6-20P
Voltage: 230/208 Volts
Are you a Trade Pro? Join Now

Description

12,000 BTU Packaged Terminal Air Conditioner
The Friedrich unit is a high-efficiency 12,000 BTU Packaged Terminal Air Conditioner (PTAC) designed to provide both cooling and heating for small to medium-sized spaces. This unit is part of Friedrich's line of PTACs known for their reliability and performance.

Specifications

Overview
Cooling Capacity:
12,000
Cooling Capacity Min/Max:
4700-13800
Cooling Watts:
1040
Energy Efficiency Ratio EER:
12.08
Heater Size:
3.6
Reverse Heating Capacity:
11500
Reverse Heating Capacity Min./Max:
6995-16187
Heating Watts:
925
COP:
3.65
Moisture Removal:
1.9
Sensible Heat Ratio:
77%
Electrical Data
Voltage (1 PHASE, 60 Hz):
230/208
Volt Range:
253-187
Current:
4.55
Reverse Heat:
3.87
Power Factor:
0.96
Outdoor Fan Motor:
0.08
Airflow Data
Indoor CFM, High:
750
Indoor CFM, Low:
560
Make-up Air CFM@0.05" wc Min/Max:
25/52
Dimensions
Sleeve Dimensions H x W x D:
16” x 42” x 13 3/4” (all models)
Dimensions with front H x W x D:
16” x 42” x 21” (all models
Cut Out Dimensions H x W:
16 1/4”x 42 1/4” (all models
Net Weight:
110.3
Shipping Weight:
132.8
R-32 Charge:
27.2 oz

Features

QuietMaster® Technology
  • Solid-steel inner wall
  • Advanced airflow design
  • High-density insulation and foam for sound absorption
  • Aesthetically engineered to block indoor noise
  • Counterweights for vibration
  • dampening
8-Way Airflow Control
  • With the 8-way air-flow control, your room will cool more quickly
Washable Air Filters
  • A washable air filter ensures only the cleanest air enters your space
24-Hour Timer
  • You can program the remote to run the device for up to 24 hours in the amount of time you wish
3 Cool/Fan Speeds
  • With three cooling and fan speeds, finding the right setting for you is easy
Auto Restart
  • Auto restart saves settings if power is interrupted
Remote Control
  • Allows you to have complete control over the room's temperature and fan speed from anywhere
Other Features
  • Money Saver®
  • R-32 Refrigerant
  • Universal fit decorative trim ring
Key Features
QuietMaster®
QuietMaster® Technology is designed for exceptional quiet performance, utilizing premium components to operate up to 45% quieter than competing products.
