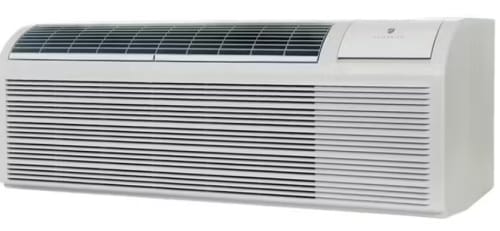

Friedrich PVH09K3FC - 9,800 BTU Packaged Terminal Air Conditioner
Friedrich PVH09K3FC - 9,800 BTU Packaged Terminal Air Conditioner
Friedrich PVH09K3FC - 9,800 BTU Packaged Terminal Air Conditioner
Friedrich PVH09K3FC - 9,800 BTU Packaged Terminal Air Conditioner
+1

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Friedrich PVH09K3FC
Authorized
Dealer

Friedrich
PVH09K3FC
9,800 BTU Packaged Terminal Air Conditioner with 8,500 BTU Reverse Heating Capacity, MUA, DiamonBlue Advanced Corrosion Protection, 12.52 EER, 1.4 Pts/ Hr Dehumidification, Dual Motors and 230/208 Voltage

Top Quality Store on Google
quick specs
Width: 42 Inch
Depth: 21 Inch
Height: 16 Inch
Cooling Capacity (BTU): 9,800 BTU
Heating Capacity (BTU): 8,500 BTU
WiFi: No
Remote Monitoring: No
Control Type: Digital
Plug Type: 6-20P
View more
$1,739.00
MSRP: $1,769.00
You save $30.00
OR
FREE Delivery Available
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Friedrich
Model: PVH09K3FC
Dimensions
Width: 42 Inch
Depth: 21 Inch
Height: 16 Inch
Capacity
Cooling Capacity (BTU): 9,800 BTU
Heating Capacity (BTU): 8,500 BTU
Smart
WiFi: No
Remote Monitoring: No
Features
Type: Window
Maximum Cooling Amps: 3.56 Amps
Maximum Cooling Watts: 815 Watts
Maximum Heating Amps: 3.09 Amps
Maximum Heating Watts: 710 Watts
Heat: Heat Pump
Energy Efficiency Rating: 12.52
Control Type: Digital
PTAC: Yes
Window Type: Standard
Indoor CFM, High: 700 CFM
Indoor CFM, Low: 535 CFM
Refrigerant Type: R-32
Technical Details
Energy Star Rated: No
ADA Compliant: No
Plug Type: 6-20P
Voltage: 230/208 Volts
Are you a Trade Pro? Join Now

Description

9,800 BTU Packaged Terminal Air Conditioner
The Friedrich unit is a high-efficiency 9,800 BTU Packaged Terminal Air Conditioner (PTAC) designed to provide both cooling and heating for small to medium-sized spaces. This unit is part of Friedrich's line of PTACs known for their reliability and performance.

Specifications

Overview
Cooling Capacity:
9,800
Cooling Capacity Min/Max:
4400-12000
Cooling Watts:
815
Energy Efficiency Ratio EER:
12.52
Heater Size:
3.6
Reverse Heating Capacity:
8500
Reverse Heating Capacity Min./Max:
5606-11475
Heating Watts:
710
COP:
3.51
Moisture Removal:
1.4
Sensible Heat Ratio:
77%
Electrical Data
Voltage (1 PHASE, 60 Hz):
230/208
Volt Range:
253-187
Current:
3.56
Reverse Heat:
3.09
Power Factor:
0.80
Compressor RLA:
3.2
Outdoor Fan Motor:
0.06
Airflow Data
Indoor CFM, High:
700
Indoor CFM, Low:
535
Make-up Air CFM@0.05" wc Min/Max:
25/52
Dimensions
Net Weight:
109
Shipping Weight:
132
R-32 Charge:
24.3 oz

Features

QuietMaster® Technology
  • Solid-steel inner wall
  • Advanced airflow design
  • High-density insulation and foam for sound absorption
  • Aesthetically engineered to block indoor noise
  • Counterweights for vibration
  • dampening
8-Way Airflow Control
  • With the 8-way air-flow control, your room will cool more quickly
Washable Air Filters
  • A washable air filter ensures only the cleanest air enters your space
24-Hour Timer
  • You can program the remote to run the device for up to 24 hours in the amount of time you wish
3 Cool/Fan Speeds
  • With three cooling and fan speeds, finding the right setting for you is easy
Auto Restart
  • Auto restart saves settings if power is interrupted
Remote Control
  • Allows you to have complete control over the room's temperature and fan speed from anywhere
Other Features
  • Money Saver®
  • R-32 Refrigerant
  • Universal fit decorative trim ring
Key Features
QuietMaster®
QuietMaster® Technology is designed for exceptional quiet performance, utilizing premium components to operate up to 45% quieter than competing products.
