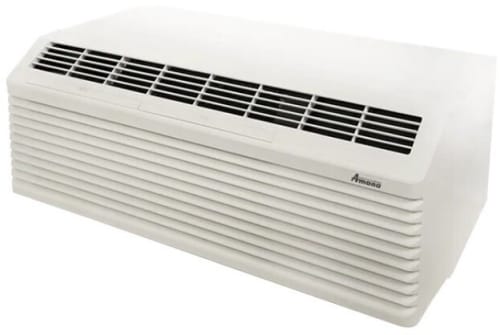

Amana PTH154J35VXXX - 14,400 BTU Packaged Terminal Air Conditioner
Amana PTH154J35VXXX - 14,400 BTU Packaged Terminal Air Conditioner

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Amana PTH154J35VXXX
Authorized
Dealer

Amana
PTH154J35VXXX
14,600 BTU Packaged Terminal Air Conditioner with 12,600 BTU Heat Pump, Quiet Operation, R-32A Refrigerant, Pull Out Filter, Eden EMS Ready, RF & Bluetooth Equipped and 5 Year Warranty Included

Top Quality Store on Google
quick specs
Width: 42 Inch
Depth: 14 1/8 Inch
Height: 16 1/6 Inch
Cooling Capacity (BTU): 14,600 BTU
Heating Capacity (BTU): 12,600 BTU
WiFi: No
Alexa: No
Google Home: No
Remote Control: No
Remote Monitoring: No
Control Type: Digital
Plug Type: 7-20P
View more
$1,699.00
OR
FREE Delivery Available
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Amana
Model: PTH154J35VXXX
Dimensions
Width: 42 Inch
Depth: 14 1/8 Inch
Height: 16 1/6 Inch
Capacity
Cooling Capacity (BTU): 14,600 BTU
Heating Capacity (BTU): 12,600 BTU
Smart
WiFi: No
Alexa: No
Google Home: No
Remote Control: No
Remote Monitoring: No
Remote Diagnostics: No
Dash Replenishment: No
Smart Accessory Required: No
AI Technology: No
Features
Type: Wall
Maximum Cooling Amps: 7.1 Amps
Maximum Cooling Watts: 1,435 Watts
Heat: Heat Pump
Energy Efficiency Rating: 10.4
Control Type: Digital
PTAC: Yes
Indoor CFM, High: 400 CFM
Indoor CFM, Low: 314 CFM
Refrigerant Type: R-32
Technical Details
Energy Star Rated: No
ADA Compliant: No
CSA Sustainability Compliant: No
Plug Type: 7-20P
Voltage: 265 Volts
Are you a Trade Pro? Join Now

Description

14,600 BTU Packaged Terminal Air Conditioner
It is a high-performance cooling and heating solution designed to deliver efficient comfort for commercial and residential applications. With a nominal cooling capacity of 14,600 BTU/h, this unit offers reliable temperature control, making it ideal for small to medium-sized rooms. Featuring R-32A refrigerant, a more environmentally friendly option, that ensures reduced environmental impact while maintaining superior cooling efficiency.

Specifications

Overview
Voltage:
230/208
Capacity:
14,600 BTU
Heat Pump:
12,600 BTU
Amps:
20
NEMA:
7-20
LCDI:
Cord Included
EER:
10.4
CFM:
400-314
Ventilated Air:
65
Dehumidification:
4.4
Net Weight:
113
Shipping Weight:
130
Width:
42 Inches
Depth:
21 1/2 Inches
Height:
16 1/6 Inches

Features

R-32A
  • Uses R-32A refrigerant, which is more environmentally friendly (lower global warming potential) compared to older refrigerants.
Efficiency
  • EER (Energy Efficiency Ratio) = 10.4 for the 14,600 BTU version at 265 V.
Voltage
  • Designed for 265 V single-phase operation.
Series
  • “J-Series” improvements: quieter operation (Sound Transmission Class STC 29), modern casing (“Quiet White”), integrated wired/wireless thermostat connectivity, Bluetooth & RF connectivity (in certain variants) and compatibility with Amana’s “E
Other Features
  • Easy pull-out washable filters, condensate dispersion, fan-off delay, and room freeze protection features
  • **Wall thermostat required for operation**
