Description

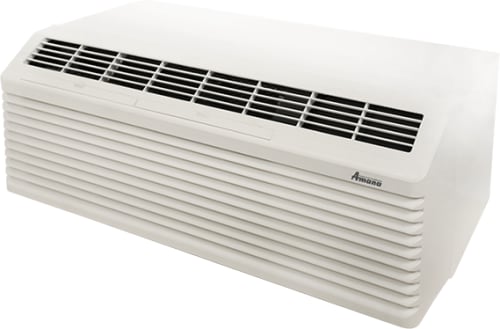

15,000 BTU Packaged Terminal Air Conditioner with 14,300 BTU Heat Pump
The PTH153J35CXXX offers 14,600 / 14,400 BTU of cooling power, a 14,300 / 14,000 BTU heat pump, and a 3.5 kW electric heater providing approximately 11,900 BTUs of electric backup heat. With a new Amana® brand mobile app and integrated Bluetooth and RF connectivity (additional items required, sold separately), you can take control of all your Amana PTAC units. This Amana PTAC will cool a space of around 450 - 575 sq. ft. This unit has a new, improved design that reduces operating noises from entering your guest rooms. It also has an STC (Sound Transmission Class) of 29 and easy-to-clean filters to help keep the air in the room fresh. The PTH153J35CXXX state-of-the-art design and construction provide a quiet environment, allowing guests to enjoy peaceful, sleep-filled nights.
A thermostat is required with this purchase.
NOTE: New models no longer have a touch control board on the face of the units and REQUIRE a thermostat for operation.
Specifications
Specifications
Cooling Capacity (BTU/h):
14,600 / 14,400
Cooling Watts:
1,400 / 1,355
Heating Capacity (BTU/h):
14,300 / 14,000
Heating Watts:
1,350 / 1,320
Heat Type:
Heat Pump with Electric Heat Backup
Dehumidification (pts/hr):
4.4
Connectivity:
RF, Bluetooth and Eden
Control Type:
Wall Thermostat Required (Sold Separately)
Sleeve & Rear Grille Required for New Installations:
Yes (Sold Separately)
Electrical Requirements
Rated Voltage:
230/208V, 60 Hz, 1 Phase
Claims and Certifications
UL 2-40 Compliant Materials and Assembly:
Yes
Warranty
Features
Integrated Bluetooth & RF Connectivity and Amana® Brand Mobile App
- Reduces unit setting and unit configuration time
- Features advanced unit troubleshooting and diagnostics
Integrated Eden™ Energy Management System Connectivity
- Reduces PTAC energy consumption by up to 35% or more
Improved Design and Materials To Reduce Operating Noise Transmission
- Sound Transmission Class (STC 29) rating for all units
- Reduction of exterior and operating sounds from entering the guest room
Reduction of On-Board Controls For Modern & Streamlined Appearance & Operation
- Integrated wired and wireless thermostat connectivity
- UL 2-40 compliant materials and assembly
Cooling Capacity
Heating Capacity
Other Features
- Seacoast Corrosion Protection
Thermostat required
