Description

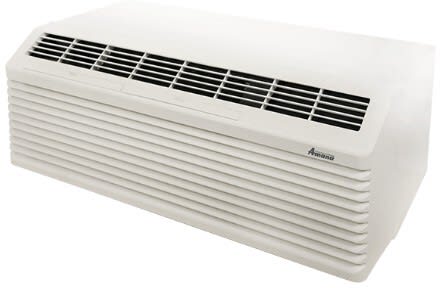

14,400 BTU Packaged Terminal Air Conditioner
The Amana PTH153J25VXXX Packaged Terminal Heat Pump delivers powerful heating and cooling for hospitality, residential, and commercial environments. With approximately 14,400–14,600 BTU of cooling capacity, reverse-cycle heat pump operation, and a 2.5 kW auxiliary electric heater, this unit provides year-round indoor comfort. Its R-32 refrigerant, Bluetooth and RF connectivity, and compatibility with Amana's Eden energy management system support efficient operation and simplified maintenance. Designed for through-the-wall installation, the unit features a Quiet White finish, washable filters, condensate management, and compatibility with wired or wireless external thermostats.
Specifications
Overview
Nominal cooling class:
15,000 BTU
Cooling capacity:
14,600 BTU (230 V) / 14,400 BTU (208 V)
Reverse-cycle heating:
14,300 BTU (230 V) / 14,000 BTU (208 V)
Auxiliary electric heat:
2.5 kW (230 V) / 2.1 kW (208 V)
Electric heat output:
8,500 BTU (230 V) / 6,800 BTU (208 V)
EER:
10.4 (230 V) / 10.6 (208 V)
COP:
3.0 (230 V) / 3.1 (208 V)
Cooling amps:
11.2 A (230 V) / 10.1 A (208 V), listed operating rating
Electric heater watts:
2,570 W (230 V) / 2,115 W (208 V)
Minimum circuit ampacity:
14.1 A
Maximum overcurrent protection:
15 A
Warranty:
5-year limited warranty listed for the reference model
Features
Heat pump heating and cooling
- Provides year-round comfort through cooling and reverse-cycle heating.
14,000+ BTU cooling capacity
- Designed for hotel rooms, apartments, and commercial spaces requiring higher cooling output.
2.5 kW auxiliary electric heat
- Provides supplemental heat during colder conditions.
R-32 refrigerant
- Uses a refrigerant with lower global warming potential than R-410A.
Power-vent configuration
- Supports increased ventilation compared with the standard configuration; confirm the exact airflow rating.
Bluetooth and RF connectivity
- Supports configuration and diagnostics with compatible Amana controls and mobile app.
Eden energy management compatibility
- Designed for integration with compatible property-management systems.
External thermostat control
- Supports compatible wired or wireless thermostats.
Quiet operation design
- The J-Series platform has an STC 29 sound-transmission rating.
Washable air filters
- Help simplify routine maintenance.
Through-the-wall installation
- Requires a compatible wall sleeve and exterior grille, typically purchased separately.
