Description

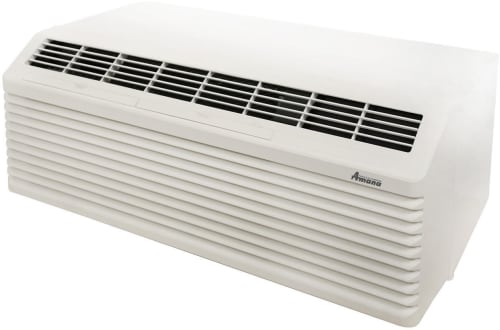

12,000 BTU Class Thru-the-Wall Air Conditioner with Heat Pump
The Amana PTH124J15AXXX is a powerful and efficient packaged terminal air conditioner (PTAC) with heat pump capability, tailored for 265 V, 20 A power setups. This high‑efficiency model operates on the eco-friendly R‑32 refrigerant and delivers approximately 12,100 BTU cooling with around 11,600 BTU of heat pump capacity, achieving a COP near 3.4 and an EER of 11.6. To support modern installation trends, it eliminates on‑unit controls—requiring operation through wired or wireless wall‑mounted thermostats—and includes integrated Bluetooth and RF connectivity for remote access via the Amana mobile app and Eden energy management systems. Designed with enhanced sound-dampening and a sleek Quiet White finish, it achieves a Sound Transmission Class rating of STC 29 for quiet operation. Built in the U.S., 100% run-tested in Fayetteville, TN, and backed by a 5-year factory warranty on the sealed system, this PTAC unit offers reliability, efficiency, and seamless integration into commercial or hospitality environments.
Specifications
Overview
Air Conditioner Type:
Through-the-Wall
Cooling
Heating
Unit without Electric Heater
CFM (cool/wet coil):
330 high, 245 low
CFM (dry coil):
324 high, 324 low
Ventilated Air, CFM (fan only):
40
Dehumidification (Pints/hr):
1.7
Dimension and Weight
Features
Heat Pump
- Efficiently provides both cooling and heating by reversing refrigerant flow, delivering year‑round Electronic/Digital Controls
- Features an intuitive digital interface for easy temperature setting, mode selection, scheduling, and precise adjustments, improving user experience and convenience.
Other Features
- Integrated bluetooth and RF connectivity, no more on-board touchpad control panel.
- Integrated Eden energy management system connectivity.
- Improved design and materials to reduce operating noise transmission.
- New modern Quiet White color.
- Integrated wired and wireless thermostat connectivity.
- UL 2-40 compliant materials and assembly.
- STANDARD 5 year Amana factory warranty; no need to purchase additional 3rd party coverage.
