Description

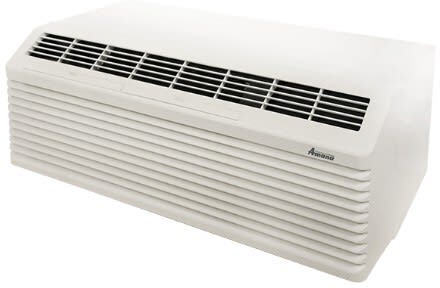

11,600 BTU Packaged Terminal Air Conditioner
The Amana PTH123J50VXXX Packaged Terminal Heat Pump is designed to provide dependable year-round comfort in hotel rooms, apartments, offices, and other commercial or residential spaces. With 12,000 BTU-class cooling, reverse-cycle heat pump heating, and a 5.0 kW auxiliary electric heater, it offers flexible temperature control in a compact through-the-wall design. The unit uses R-32 refrigerant and features integrated Bluetooth and RF connectivity, compatibility with Amana's mobile app, and Eden energy management system integration. Its Quiet White cabinet and STC 29 sound-transmission rating help support a comfortable indoor environment.
Specifications
Overview
Product type:
Packaged Terminal Heat Pump (PTHP)
Cooling capacity:
12,000 BTU at 230 V / 11,600 BTU at 208 V
Reverse-cycle heating:
11,000 BTU at 230 V / 10,800 BTU at 208 V
Total heating output with electric heat:
17,100 BTU at 230 V / 14,000 BTU at 208 V
Cooling watts:
1,040 W at 230 V / 1,005 W at 208 V
Maximum circuit protection:
30 A
Features
Heat Pump
- Heat pump cooling and heating
Electric Heat
- 5.0 kW auxiliary electric heat
Refrigerant
Integrated Bluetooth
- Integrated Bluetooth and RF connectivity
Mobile App Compatibility
- Amana mobile app compatibility
Energy Management
- Eden energy management integration
Thermostat
- Wired and wireless thermostat compatibility
Other Features
- STC 29 sound-transmission rating
- Through-the-wall PTAC installation
- ETL certification on the documented related model
