Description

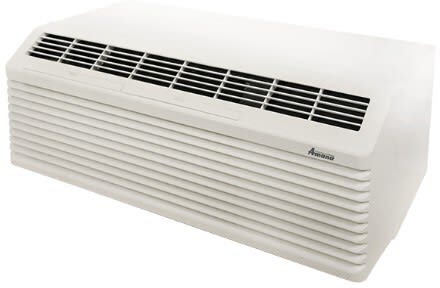

The Amana PTC093J35VXXX is a 9,000 BTU-class PTAC with electric resistance heat and a power-vent configuration. The closest documented J-Series model uses R-32 refrigerant and supports energy-management integration. The V code is associated with the power-vent option, which can increase ventilation airflow above the standard setting.
Specifications
Overview
Product type:
PTAC air conditioner
Cooling capacity:
9,200 BTU at 230 V / 9,000 BTU at 208 V
Heating type:
Electric resistance heat
Heater size:
3.5 kW at 230 V / 2.9 kW at 208 V
Heating capacity:
12,000 BTU at 230 V / 9,900 BTU at 208 V
EER:
12.1 at 230 V / 12.2 at 208 V
Cooling watts:
805 W at 230 V; verify exact configuration
Maximum heating amps:
15.5 A at 230 V / 14.1 A at 208 V
Maximum heating watts:
3,570 W at 230 V / 2,935 W at 208 V
Plug type:
NEMA 6-20P for the documented 3.5 kW configuration
Exterior grille included:
No
Thermostat included:
No; compatible thermostat required
Features
Capacity
- 9,000–9,200 BTU cooling capacity, depending on supply voltage and model configuration.
Electric Heater
- 3.5 kW nominal electric heater.
Refrigerant
Power Vent
- Power-vent option for increased outdoor-air ventilation.
Through the Wall
- Through-the-wall PTAC installation.
Connectivity
- Bluetooth/RF connectivity on compatible configurations.
Compatibility
- Compatibility with Amana Eden energy management systems.
Washable Air Filter
- Reusable, washable air filter.
Digital Control
- Digital control compatibility with an external thermostat.
