Description

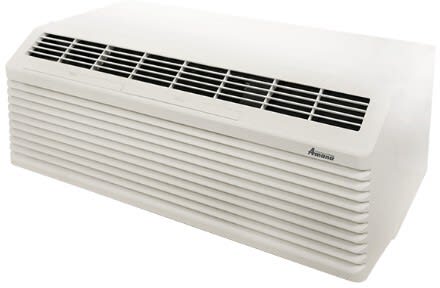

9,000 BTU Packaged Terminal Air Conditioner
The Amana PTC093J25CLXX Packaged Terminal Air Conditioner is designed to provide reliable heating and cooling for hospitality, residential, and commercial applications. With approximately 9,000–9,200 BTU of cooling capacity and a 2.5 kW electric resistance heater, this PTAC helps maintain comfortable indoor temperatures throughout the year. Its J-Series platform features R-32 refrigerant, Bluetooth connectivity, integrated RF communications, and compatibility with Amana's Eden energy management system. The related C-series configuration includes seacoast corrosion protection, making it a potential choice for coastal installations. The unit uses a through-the-wall design and requires a compatible external thermostat, wall sleeve, and exterior grille as applicable.
Specifications
Overview
Installation:
Through-the-wall
Cooling capacity:
9,000 BTU at 208 V / 9,200 BTU at 230 V
Heating type:
Electric resistance heat
Heater rating:
2.5 kW at 230 V / 2.1 kW at 208 V
Heating capacity:
8,500 BTU at 230 V / 6,800 BTU at 208 V
EER:
12.1 at 230 V / 12.2 at 208 V
Shipping weight Approximately:
118 lb
Wall sleeve:
Sold separately
Thermostat:
Required; sold separately
Power cord:
NEMA 6-15P, verify exact suffix
Features
Efficient cooling performance
- Delivers up to 9,200 BTU of cooling capacity for hotel rooms, apartments, offices, and other compact spaces.
Electric resistance heating
- Integrated 2.5 kW heater provides supplemental warmth during colder weather.
Seacoast corrosion protection
- The related C-series model features protective treatment intended to help resist corrosion in coastal environments.
R-32 refrigerant
- Uses refrigerant with a lower global warming potential than R-410A.
Bluetooth connectivity
- Compatible configurations support setup and troubleshooting through the Amana mobile app.
Integrated RF communication
- Designed to work with compatible wireless thermostats and Eden energy management systems.
Energy management compatibility
- Supports compatible centralized controls for hospitality and commercial properties.
Quiet operation
- Engineered with sound-reduction features and an STC 29 rating for the J-Series.
External thermostat control
- Requires a compatible wired or wireless thermostat.
Through-the-wall design
- Designed for PTAC wall-sleeve installation; sleeve and exterior grille are separate accessories unless otherwise specified.
