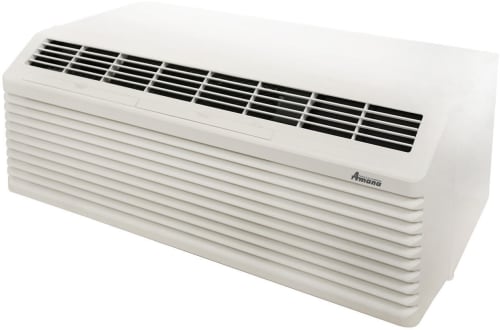

Amana PTC093J15AXXX - 9,000 BTU Thru-the-Wall Air Conditioner with Electric Heat
Amana PTC093J15AXXX - 9,000 BTU Thru-the-Wall Air Conditioner with Electric Heat

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Amana PTC093J15AXXX
Authorized
Dealer

Amana
PTC093J15AXXX
9,000 BTU Thru-the-Wall Air Conditioner with Electric Heat, R32 Refrigerant, 12.2 EER, and Electronic/Digital Controls

Top Quality Store on Google
quick specs
Width: 42 Inch
Depth: 14 Inch
Height: 16 Inch
Cooling Capacity (BTU): 9,200 BTU
Heating Capacity (BTU): 8,500 BTU
WiFi: No
Control Type: Digital
View more
$1,199.00
OR
Have questions? Chat with us!
Product Information
Brand: Amana
Model: PTC093J15AXXX
Dimensions
Width: 42 Inch
Depth: 14 Inch
Height: 16 Inch
Capacity
Cooling Capacity (BTU): 9,200 BTU
Heating Capacity (BTU): 8,500 BTU
Smart
WiFi: No
Features
Type: Wall
Maximum Cooling Amps: 4.1 Amps
Maximum Cooling Watts: 725 Watts
Energy Efficiency Rating: 12.2
Control Type: Digital
PTAC: Yes
Refrigerant Type: R-32
Technical Details
Energy Star Rated: No
ADA Compliant: No
Voltage: 230/208 Volts
Are you a Trade Pro? Join Now

Description

9,000 BTU Thru-the-Wall Air Conditioner with Electric Heat
The Amana PTC093J15AXXX is a reliable, energy-efficient PTAC (Packaged Terminal Air Conditioner) that delivers both cooling and electric heat, making it ideal for year-round comfort in hotels, apartments, offices, and other light commercial settings. With a cooling capacity of 9,200 BTU and electric heat output of 8,500 BTU, it operates on a 208/230V, 15-amp power supply. This unit uses eco-friendly R32 refrigerant, which offers enhanced energy efficiency and a lower environmental impact compared to older refrigerants like R410A.

Designed without onboard controls, the PTC093J15AXXX is compatible with wall-mounted or remote thermostats, making it suitable for integration with advanced building management systems. It features built-in Bluetooth and RF connectivity, allowing seamless pairing with Amana’s Eden and DigiSmart energy management platforms for features like remote monitoring, occupancy-based control, and wireless diagnostics. Engineered for quiet performance, the unit includes sound-dampening materials and achieves an STC rating of 29, helping maintain a peaceful indoor environment. Built and tested in the USA, this PTAC unit is known for its durability, easy service access, and dependable long-term performance.

Specifications

Overview
Air Conditioner Type:
Through-the-Wall
Color:
White
Cooling Capacity:
9,200 BTU
Electric Heat Output:
8,500 BTU
Electrical Requirement
Voltage:
230 / 208
Amps:
4.1 / 4.1
Watts:
725 / 720
EER:
12.1 / 12.2
Dimension and Weight
Width:
42”
Height:
16”
Depth:
14”
Weight:
102 lbs.

Features

R32 Refrigerant
  • Utilizes R32 refrigerant, which is more energy-efficient and environmentally friendly, reducing global warming potential compared to older refrigerants like R410A.
Electronic/Digital Controls
  • Features an easy-to-use digital touch pad and remote control for precise temperature settings, mode selection, and quick adjustments.
Other Features
  • 12.2 EER
  • Integrated bluetooth and RF connectivity, no more on-board touchpad control panel.
  • Integrated Eden energy management system connectivity.
  • Improved design and materials to reduce operating noise transmission.
  • New modern Quiet White color.
  • UL 2-40 compliant materials and assembly.
  • STANDARD 5 year Amana factory warranty; no need to purchase additional 3rd party coverage.
