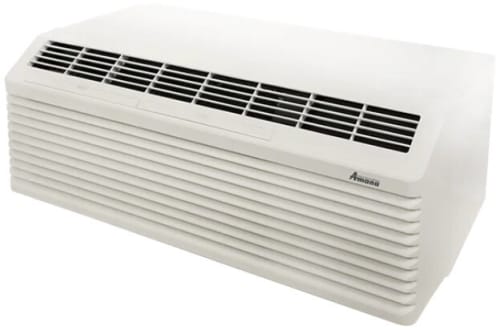

Amana PTC073J00DHXX - 7,000 BTU Packaged Terminal Air Conditioner
Amana PTC073J00DHXX - 7,000 BTU Packaged Terminal Air Conditioner

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Amana PTC073J00DHXX
Authorized
Dealer

Amana
PTC073J00DHXX
7,000 BTU Packaged Terminal Air Conditioner with Hydronic Heat, Quiet Operation, R-32 Refrigerant, Pull Out Filter, Eden EMS Ready, RF & Bluetooth Equipped and 5 Year Warranty Included

Top Quality Store on Google
quick specs
Width: 42 Inch
Depth: 14 1/8 Inch
Height: 16 1/6 Inch
Cooling Capacity (BTU): 7,000 BTU
WiFi: No
Alexa: No
Google Home: No
Remote Control: No
Remote Monitoring: No
Control Type: Digital
Remote Control Included: No
Plug Type: 6-15P
View more
$1,339.00
OR
FREE Delivery Available
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Amana
Model: PTC073J00DHXX
Dimensions
Width: 42 Inch
Depth: 14 1/8 Inch
Height: 16 1/6 Inch
Capacity
Smart
WiFi: No
Alexa: No
Google Home: No
Remote Control: No
Remote Monitoring: No
Remote Diagnostics: No
Dash Replenishment: No
Smart Accessory Required: No
AI Technology: No
Features
Type: Wall
Maximum Cooling Amps: 3.2 Amps
Maximum Cooling Watts: 510 Watts
Heat: Heat Pump
Energy Efficiency Rating: 12.8
Control Type: Digital
Remote Control Included: No
PTAC: Yes
Indoor CFM, High: 95 CFM
Indoor CFM, Low: 65 CFM
Refrigerant Type: R-32
Technical Details
Energy Star Rated: No
ADA Compliant: No
CSA Sustainability Compliant: No
Plug Type: 6-15P
Voltage: 230/208 Volts
Are you a Trade Pro? Join Now

Description

7,000 BTU Packaged Terminal Air Conditioner
It is a high-performance cooling and heating solution designed to deliver efficient comfort for commercial and residential applications. With a nominal cooling capacity of 7000 BTU/h, this unit offers reliable temperature control, making it ideal for small to medium-sized rooms. Featuring R-32 refrigerant, a more environmentally friendly option, the PTC073J ensures reduced environmental impact while maintaining superior cooling efficiency.

Specifications

Overview
Cooling:
230/208
Capacity:
7,000 BTU
Amps:
15
NEMA:
6-15
LCDI:
Cord Included
EER:
12.8
Smart Vent/Economizer ready with factory:
Yes
CFM:
330-245
Ventilated Air:
65-95
Dehumidification:
1.7
Net Weight:
106
Shipping Weight:
115
Width:
42 Inches
Depth:
14 1/8 Inches
Height:
16 1/6 Inches

Features

R-32
  • Uses R-32 refrigerant, which is more environmentally friendly (lower global warming potential) compared to older refrigerants.
Efficiency
  • EER (Energy Efficiency Ratio) = 12.8 for the 7,000 BTU version at 208/230 V.
Voltage
  • Designed for 208/230 V (sometimes listed 230/208 V) single-phase operation.
Series
  • “J-Series” improvements: quieter operation (Sound Transmission Class STC 29), modern casing (“Quiet White”), integrated wired/wireless thermostat connectivity, Bluetooth & RF connectivity (in certain variants) and compatibility with Amana’s “E
Other Features
  • Easy pull-out washable filters, condensate dispersion, fan-off delay, and room freeze protection features
