Description

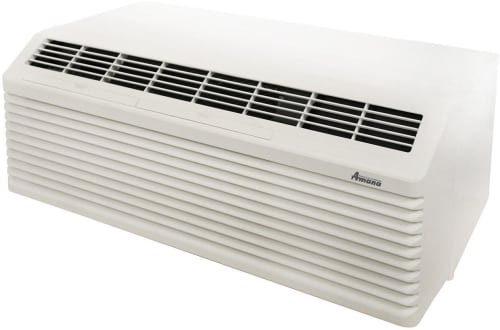

7,000 BTU Thru-the-Wall Air Conditioner Cooling Only with R32 Refrigerant
The Amana 7PTC073J00AXXX PTAC is a cooling-only packaged terminal air conditioner engineered for reliable, energy-efficient performance in spaces such as hotels, apartments, dorms, and offices. Delivering 7,000 BTU of cooling power, it’s ideal for maintaining comfort in smaller rooms while keeping energy usage in check. This unit operates on 208/230 volts with a 15-amp power connection and uses R32 refrigerant—an environmentally friendlier alternative to R410A, offering lower global warming potential and improved efficiency.
Designed without onboard controls, the unit is thermostat-ready, allowing it to be paired with a wall-mounted thermostat or integrated into smart room control systems. It includes built-in Bluetooth and RF capabilities for compatibility with Amana’s Eden and DigiSmart control platforms, enabling advanced features such as occupancy sensing, remote monitoring, and wireless energy management. The system is built for quiet operation, with enhanced insulation and an STC (Sound Transmission Class) rating of 29 to reduce operational noise. Factory-tested and assembled in the U.S., the unit features front-access components, washable filters, and a durable construction that ensures long-term serviceability and performance.
Specifications
Overview
Air Conditioner Type:
Through-the-Wall
Unit without Electric Heater
Capacity (BTU/h):
7,000 / 7,000
CFM (cool/wet coil):
330 high, 245 low
CFM (dry coil):
343 high, 309 low
Ventilated Air, CFM (fan only):
40
Electrical Requirement
Dimension and Weight
Features
R32 Refrigerant
- Utilizes R32 refrigerant, which is more energy-efficient and environmentally friendly, reducing global warming potential compared to older refrigerants like R410A.
Electronic/Digital Controls
- Features an easy-to-use digital touch pad and remote control for precise temperature settings, mode selection, and quick adjustments.
Other Features
- Integrated bluetooth and RF connectivity, no more on-board touchpad control panel.
- Integrated Eden energy management system connectivity.
- Improved design and materials to reduce operating noise transmission.
- New modern Quiet White color.
- UL 2-40 compliant materials and assembly.
- STANDARD 5 year Amana factory warranty; no need to purchase additional 3rd party coverage.
