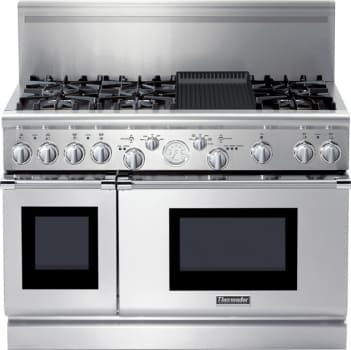

Thermador Pro Grand
PRD486ELG
48 Inch Pro-Style Dual-Fuel Range

No reviews yet Write a review!
product highlights
Continuous Grates
Continuous Grates Continuous grates have a clean, flat look across the whole cooktop, and they also make it quick and easy to transfer pots and pans between burners.
Stainless Steel Handle
Stainless Steel Handle This oven offers a sturdy stainless steel handle, giving your kitchen a clean, professional look.
Viewing Window
Viewing Window Monitor the progress of your cooking without opening the door and releasing valuable heat.
Convection
Convection Circulating heat in the oven keeps heat even, concise, and always enveloping the food to lock in flavor. Many models include multiple fans with their own heating elements for maximum heat distribution.
quick specs
Dimensions
Width: 47 7/8 Inch
Depth: 32 5/8 Inch
Height: 35 7/8 Inch
Interior Width: 25 3/4 Inch
Interior Depth: 19 3/4 Inch
Interior Height: 13 7/8 Inch
Burner Output
Set 1 QTY: 6
Set 1 Output: 15000
View more

You Might Also Like

Product Information
Brand: Thermador
Series: Pro Grand
Model: PRD486ELG
Appearance
Fuel Type: Dual Fuel
Style: Freestanding
Color: Stainless Steel
Cooktop: Sealed Burner
Continuous Grates: Yes
Stainless Steel Handle: Yes
Viewing Window: Yes
Drawer: None
Clock: No
Dimensions
Width: 47 7/8 Inch
Depth: 32 5/8 Inch
Height: 35 7/8 Inch
Interior Width: 25 3/4 Inch
Interior Depth: 19 3/4 Inch
Interior Height: 13 7/8 Inch
Burner Output
Set 1 QTY: 6
Set 1 Output: 15000
Cooktop Features
Burners / Elements: 6
Cooktop Control Type: Knobs
Downdraft Ventilation: No
Modules Required: No
Oven Features
Primary Oven Capacity: 5.1 Cu. Ft.
Secondary Oven Capacity: 2.5 Cu. Ft.
Oven Control Type: Knobs
Digital Temperature Display: No
Timer: No
Convection: Yes
Self-Cleaning: Yes
Delay Bake: No
Proofing: Yes
Sabbath Mode: No
Broiler Element Location: Top
Temperature Probe: No
Interior Oven Light: Yes
Racks: 5
Removable Door: Yes
Broiler Pan Included: Yes
Technical Details
Ignition Type: Electronic
Oven Wattage: 4000
LP Conversion: Yes
Amps: 50
Voltage: 240/208 Volts

Are You a
Builder?

Contact us for
special pricing & volume discounts
Get Quote

From the Manufacturer

A Thermador kitchen is more luxurious, more efficient and more beautiful than any other kitchen. Because for seven decades, Thermador has been at the forefront of fusing the art and science of design and ingenuity. From introducing the first built-in oven almost 50 years ago to revolutionizing gas cooktops with the patented Star Burner; and from designing the first retractable downdraft ventilation system to advancing speed cooking technology; Thermador has helped transform the American kitchen.

The Thermador Professional Series is designed for those whose passion for cooking is rivaled only by their passion for quality and sophistication. This exceptional line of appliances brings state-of-the-art functionality and eye-catching design to every facet of food preparation. A Professional Series kitchen is one that embodies the absolute essence of American luxury - respect for excellence in craftsmanship and a true appreciation for fine living.

The combination of powerful performance and elegant styling makes Thermador's Professional Series ranges the epitome of American luxury in the kitchen. Technologically advanced and visually refined, their Pro Grand 27" depth ranges are available in highly efficient all-gas or in a dual-fuel model, which marries a gas cooking surface with an electric convection oven.

Manuals & Guides

  • Specifications
  • Features
  • Reviews

Specifications

Appearance
Stainless Steel 304 Series #4 Brush:
Yes
ExtraLow Burners:
2
Porcelan Enamel Cast-Iron Continuous Grate:
Yes
12" Low Back Guard:
Not Included (Required LB36R)
Oven Cavity:
5.1 and 2.5 Cu. Ft.
Number of Sealed Star Burners:
6
Radiant Baffle Grill:
18,000 BTU/HR.
Oven Performance
Electronic Thermostat Control Self-Cleaning Oven:
Yes
Secondary Oven:
Yes
Large Thermal Convection Bake Oven:
Yes
Third Element Convection Bake:
2750 Watts
Hidden Bake Element:
2400 Watts
Electronic Control Broiling:
4000 Watts
Secondary Oven:
Yes
Thermal Bake:
2250 Watts
Bread Proofing and Warm Function:
Yes
Broil:
3600 Watts
Convenience
Rack Positions:
5
Number of Racks:
3 and 2
Porcelain-Coated Rack Supports:
Yes
Broiler Pan and Grid:
Yes
Removable Doors:
Yes
L.P. Convertible:
Yes (PLPKIT)
Dimensions
Height:
35 7/8" to 36 3/4"
Width:
47 7/8"
Depth Including Door:
29 1/2"
Depth Including Handles:
32 5/8"
Depth without Door:
27 1/8"
Depth with Oven Door Open:
47 3/8"
Cutout Height:
35 7/8" to 36 3/4"
Cutout Width:
48"
Cutout Depth:
24" to 25 1/2"
Useable Oven Interior Dimensions - Height:
13 7/8"
Useable Oven Interior Dimensions - Width:
25 3/4"
Useable Oven Interior Dimensions - Depth:
19 3/4"
Secondary Oven Interior Dimensions - Height:
13 7/8"
Secondary Oven Interior Dimensions - Width:
9 3/4"
Secondary Oven Interior Dimensions - Depth:
21 3/4"
General Information
Approximate Shipping Weight:
615
Maximum BTU/HR.:
108000
Maximum KW:
10.6
Electrical Requirements:
120/240 Volts or 120/208 Volts, 4 Wire, 60 HZ, Single Phase, 50 Amps
Warranty:
Full warranty parts and labor (1 year), Full warranty and limited warranty from date of installation. For complete warranty details, refer to your Care & Use manual, or ask your dealer.

Features

PATENTED BRASS STAR BURNERS DESIGNED FOR FAST TIME-TO-BOIL, EVEN HEATING AND EXTRALOW SIMMER
  • Reengineered Star Burners provide up to 15,000 BTU/hr of heat resulting in unsurpassed flame spread, faster time-to-boil and rapid recovery time.
375 BTU/HR EXTRALOW FEATURE
  • Their patented ExtraLow burner gives you the broadest possible range of low temperature settings for maximum control over your dishes, even the most delicate sauces. The 375 BTU/hr ExtraLow flame cycles on and off with precise timing.
NEW GRATE DESIGN
  • Grates are lighter in weight and easier to clean. The new configuration also increases airflow and enhances burner performance.
WIDE BROILER SPAN
  • The large broiler span covers a greater cooking area.
RADIANT BAFFLE GRILL
  • The grill surface offers outdoor performance with indoor convenience. An easier-to-use ignition system and new radiant design contribute to a powerful 18,000 BTU.
EXTRA-LARGE OVEN CAPACITY
  • 36" and 48" range ovens are generously sized to accommodate a full-size sheet pan--perfect for entertaining or cooking for a crowd.
SIGNATURE TEMPERATURE INDICATOR
  • Iconic dashboard-style temperature indicator is a Thermador exclusive, providing precise temperature readings at a glance.
TEMPERATURE SENSOR
  • Temperature sensor constantly monitors your oven's heat and adjusts according to your desired settings.
LARGE VIEWING WINDOWS AND OVEN CAPACITY
  • Results are beautifully clear with larger oven viewing windows and generous usable space.
UNIQUE CONVECTION SYSTEM
  • The unique design of their advanced convection system utilizes multiple airflow patterns to optimize the flow of heat in your dual-fuel or all gas range.
PYROLITIC SELF-CLEANING OVEN
BRIGHT INTERIOR LIGHTING
HIDDEN BAKE ELEMENT
Note: Back Guards are not included. Back Guards must be purchased seperately.
