Home > Cooking Appliances > Range Hoods > Cabinet Insert Hoods > PM400SS

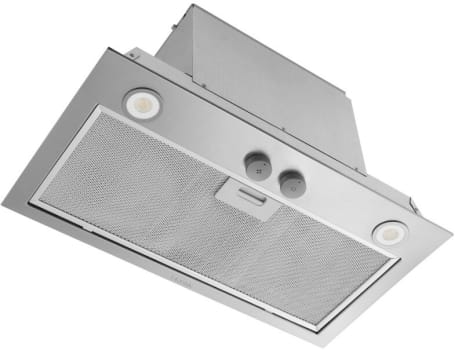

Broan PM Series PM400SS - 3/4 View
Broan PM Series PM400SS - 3/4 View

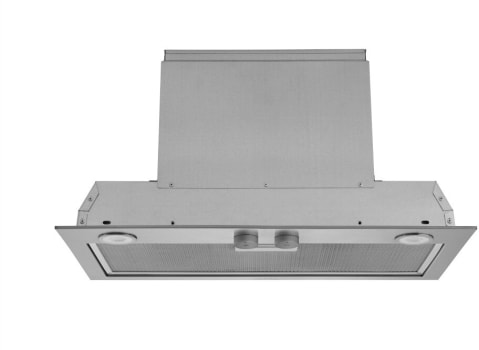

Broan PM Series PM400SS - Front View
Broan PM Series PM400SS - Front View
+3

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Broan PM Series PM400SS
Authorized
Dealer

Broan PM Series
PM400SS
21 Inch Custom Hood Power Module With 450 CFM Blower, Two Speed Rotary Controls, LED Lighting Modules, Heat Sentry™, Dishwasher-Safe Aluminum Filters and Energy Star Certified

Top Quality Store on Google
Only 5 left in stock
quick specs
Style: Standard Hood
Venting Type: Ducted
Blower Type: Internal
Width: 21 3/8 Inch
Depth: 11 7/16 Inch
Height: 10 9/16 Inch
WiFi: No
CFM: 450 CFM
Noise Level: 3 Sones
Duct Size: 6 Inch
Number of Fan Speeds: 3
Dishwasher Safe Filters: Yes
Lights: LED
View more
$399.00
OR
In stock
In Stock Items labeled IN STOCK will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items are IN STOCK, the order will ship when all items are available unless you select the SPLIT SHIP option in checkout. IN STOCK may not apply to multiple quantities of the same product.
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Broan
Series: PM Series
Model: PM400SS
Appearance
Style: Standard Hood
Type: Cabinet Insert
Color: Stainless Steel
Mounting Type: Under Cabinet
Venting Type: Ducted
Blower Type: Internal
Dimensions
Width: 21 3/8 Inch
Depth: 11 7/16 Inch
Height: 10 9/16 Inch
Smart
WiFi: No
Capacity
CFM: 450 CFM
Noise Level: 3 Sones
Duct Size: 6 Inch
Features
Number of Fan Speeds: 3
Filter Type: Mesh
Dishwasher Safe Filters: Yes
Lighting Levels: 1
Lights: LED
Technical Details
ADA Compliant: No
Energy Star Rated: Yes
Amps: 5
Voltage: 120 Volts
GTIN
UPC: 026715267620
EAN: 0026715267620
Are you a Trade Pro? Join Now

Description

21 Inch Custom Hood Power Module
Ideal for custom range hood applications, this three-speed powerpack insert protects cabinetry with an optional stainless steel liner while providing 450 MAX Blower CFM.

Specifications

Dimensions & Weight
Width:
21 3/8"
Depth:
11 7/16"
Height:
10 9/16"
Net Weight:
15.8 lbs.
Shipping Weight:
19 lbs.
Electrical
Volts:
120
Amps:
2.3
Specifications
Description:
Power Module
Finishes:
Stainless
Lighting:
2 LED Modules
Control Features:
3 Speed
Control Type:
Rotary
Air-Mover Type:
Fan
Mount Type:
Built-in
Duct:
6" Round (Vertical) - Non-ducted Kit HARKPM21
HVI Certified:
Yes

Features

450CFM Blower
  • 450 MAX Blower CFM, 3.0 sones at normal speed.
LED Lighting Modules
  • Bright 1-level LED lighting modules illuminate evenly and are tested in cooking environments to ensure long life without dimming
Dishwasher-Safe Aluminum Filters
  • Easy-to-clean, fully enclosed bottom with dishwasher-safe, aluminum-mesh filter
Heat Sentry™
  • Detects excessive heat and adjusts blower speed to high automatically.
Convertible to Non-Ducted Operation
  • Optional non-duct operation using HARKPM21 non-duct kit and charcoal filter, sold separately
Additional Features
  • Two Speed Rocker Controls
  • EZ1 clips
  • Energy Star Certified
