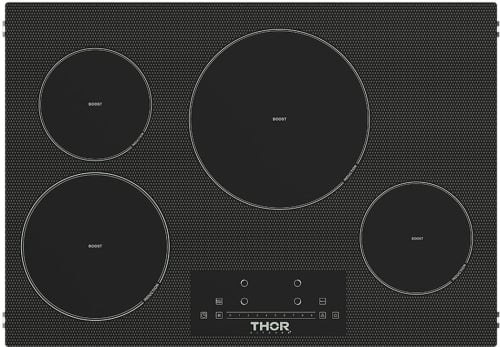

Thor Kitchen PIH30 - 30 Inch Induction Cooktop
Thor Kitchen PIH30 - 30 Inch Induction Cooktop
Thor Kitchen PIH30 - 30 Inch Induction Cooktop
Thor Kitchen PIH30 - 30 Inch Induction Cooktop
+8

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Thor Kitchen PIH30
Authorized
Dealer

Thor Kitchen
PIH30
30 Inch Built-In Induction Cooktop with 4 Elements, Power Boost, 9 Power Levels, Slide Touch Controls, Child Lock, Timer and Black Glass Surface

Top Quality Store on Google
quick specs
Sabbath Mode: No
Number of Burners: 4
Style: Smoothtop
Type: Drop-In
Control Type: Touch Sensor
Downdraft Venting: No
Actual Width: 30 Inch
WiFi: No
Simmer Burner: Yes
Power Burner: Yes
Hot Surface Indicator Light: Yes
View more
Hurry! This deal ends in:
$674.00
MSRP: $1,199.00
You save $525.00
OR
You Will Also Need:
Electric Cord Kit - 40 Amp, 4 ft.
+ $49.99
Have questions? Chat with us!
Product Information
Brand: Thor Kitchen
Model: PIH30
Appearance
Fuel Type: Induction
Number of Burners: 4
Style: Smoothtop
Type: Drop-In
Control Type: Touch Sensor
Controls Location: Top
Color: Black
Surface Color: Black
Glass Surface: Yes
Fingerprint Resistant: No
Downdraft Venting: No
Dimensions
Actual Width: 30 Inch
Actual Depth: 21 Inch
Actual Height: 2 1/8 Inch
Cutout Width: 29 1/4 Inch
Cutout Depth: 20 3/16 Inch
Shabbos Compliance
Sabbath Mode: No
Smart
WiFi: No
Burner
Simmer Burner: Yes
Power Burner: Yes
Burner 1 Output: 1800 W /2100 W
Burner 2 Output: 1200 W /1600 W
Burner 3 Output: 1200 W /1600 W
Burner 4 Output: 2300 W /3700 W
Electric Cooktop Features
Hot Surface Indicator Light: Yes
Melt Setting: No
Keep Warm Setting: Yes
Pan Detection: Yes
Power Boil: Yes
Technical Details
LP Conversion: No
Amps: 40
Voltage: 240/208 Volts
Are you a Trade Pro? Join Now

Description

30 Inch Built-In Induction Cooktop with 4 Elements
Experience fast, precise cooking with the Thor 30-inch induction cooktop, designed to deliver powerful performance with modern convenience. Four induction elements provide rapid heat and responsive control, while features like Power Boost and nine power levels give you the flexibility to handle everything from quick boils to delicate simmering. The sleek black glass surface, intuitive slide touch controls, and built-in safety features create a streamlined cooking experience that’s as efficient as it is stylish.

Specifications

Product Overview
Product Type:
30 Inch Induction Cooktop
Model Number:
PIH30
Fuel Type:
Electric
Installation Type:
Built-In
Color/Finish:
Black Glass
Cooktop Performance
Total Number Of Elements:
4
Left Front Element:
1,800W / 2,100W Boost
Left Rear Element:
1,200W / 1,600W Boost
Right Front Element:
1,200W / 1,600W Boost
Right Rear Element:
2,300W / 3,700W Boost
Total Power Output:
6,700W (208V) / 7,700W (240V)
Element Sizes
Left Front Element Size:
9-1/16”
Left Rear Element Size:
6-7/8”
Right Front Element Size:
6-7/8”
Right Rear Element Size:
11-1/8”
Features
Power Boost:
Yes
Pan Detection:
Yes
Keep Warm:
Yes
Timer:
1–99 Minutes
Child Lock:
Yes
Auto Shut-Off:
Yes
Hot Surface Indicators:
Yes
Touch Controls:
Yes
Electrical Requirements
Voltage:
208V / 240V
Frequency:
60Hz
Amperage:
40A
Electrical Rating:
6,700W (208V) / 7,700W (240V)
Plug Type:
Hardwired (No Plug)
Cord Length:
39-7/8”
Installation
Install Over Wall Oven:
Yes
Product Dimensions & Weights
Product Dimensions (W x D x H):
30” x 21” x 2-1/8”
Cutout Dimensions (W x D x H):
29-1/4” x 20-3/16” x 1-3/8”
Minimum Clearance Front:
4”
Minimum Clearance Rear:
13/16”
Net Weight:
27.6 lbs
Gross Weight:
33.7 lbs
Package Dimensions (W x D x H):
33-7/8” x 24-13/16” x 5-1/2”

Features

Four Induction Cooking Elements
  • Efficient induction elements deliver rapid, responsive heat for precise cooking control.
Power Boost Function
  • Boost mode provides extra power for faster boiling and high-heat cooking when needed.
9 Power Levels
  • Multiple power settings allow precise temperature control from simmering to searing.
Slide Touch Controls
  • Intuitive touch controls offer smooth, precise adjustments with a modern interface.
Keep Warm Function
  • Maintains food at an ideal serving temperature without overcooking.
1–99 Minute Timer
  • Built-in timer allows accurate cooking control for consistent results.
Child Safety Lock
  • Prevents accidental operation for added safety in busy kitchens.
Residual Heat Indicators
  • Displays which zones remain hot to help prevent accidental burns.
Automatic Safety Shut-Off
  • Automatically turns off the cooktop after extended use for added peace of mind.
Easy-Clean Glass Surface
  • Smooth black glass surface wipes clean easily for a sleek, modern look.
California residents see Prop 65 WARNINGS

Reviews

Manuals & Guides

Specification Sheet
Installation Guide
Use and Care Guide
