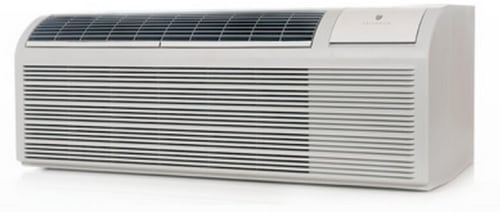

Friedrich ZoneAire Series

PDH15R5SGR3

14,500 BTU Packaged Terminal Air Conditioner with Heat Pump, 10.4 EER, 3.17 Pts/Hr Moisture Removal, and Diamonblue™ Advanced Corrosion Protection

• Stainless steel endplates reduce outdoor coil corrosion.

• Galvanized zinc coated steel wall sleeve and steel base pan undergo an 11-step preparation process, are powder coated with a polyester finish, and are oven-cured at high temperature for exceptional durability.

• Additional heating element bottom plate above an improved heat shield provides extra thermal protection.

• Additional thermistor on the blower scroll outlet regulates internal temperature.

• Factory run-tested units reduce problems in the field.

• Internal diagnostic program can alert maintenance to component failures or operating problems.

• Easy access filters simplify maintenance and extend the life of the product.

• Room freeze protection initiates heat if the temperature falls to 50°F inside an unoccupied guest room.

• Random compressor restart protects electrical systems from overload when power is restored.

• Tamper-resistant, anodized stamped aluminum grille withstands chalking and oxidation.

• Break proof control door design maintains the integrity of the unit.

• Indoor coil frost sensor protects the compressor to lengthen the life of the unit.

• DiamonblueTM Advanced Corrosion Protection protects the outdoor coil from harsh environments.

• Industry leading warranty features 2-year full warranty on parts and labor and 5-year limited warranty

• Nationwide service network and U.S. based Friedrich expert technical team ensures you get fast, knowledgeable service.

• Super-efficient refrigeration design with EERs up to 13.0 and COP up to 3.6.

• Exceptional FriedrichLink® energy management thermostats available (wired & wireless) with integrated occupancy sensor, five distinct energy presets and comprehensive remote management capability.*

• Advanced coil design adds more surface area leading to higher efficiencies.

• Thicker steel inner-wall and foam construction decreases thermal transfer and energy loss.

• Energy efficient heat pump models available in our complete line.

• Electronic defrost control ensures more run time in efficient heat pump mode.

• Electronic temperature limiting to adjust low/ high temperature range limits for reduced energy usage.

• Slinger ring technology in condensate removal system cools the coil and increases efficiency.

• Desk control ready to allow hotel owners to control units from a central location.

• Two permanently lubricated fan motors for added durability and reduced sound levels indoors.

• Quiet, efficient rotary compressor mounted with vibration isolators to keep the compressor running smoothly and quietly.

• High-density insulation and steel inner wall block outdoor noise.

• Tangential blower wheel creates a wide path air flow that reaches the furthest corner of the guest room more quietly than conventional fans.

• A full complement of Indoor Air Quality Products has been certified through installation and testing to ensure exceptional air quality is achieved when FreshAire® IAQ accessories are added.

• Dehumidification removes up to 3.1 pints/hour of moisture in cool mode to improve comfort and reduce the chance of mold and mildew growth.

• Constant Fan mode provides continuous fan operation in cooling or heating modes to create a steady stream of white noise that masks sound level changes when the compressor cycles on/off.

• Fresh air damper brings in fresh outside air when desired.

• Intuitive unit controls are user friendly with easy-to-read LED display that can show either set-point or actual room temperature as selected by owner.

• Air filters are easy to access and washable.

• Instant Heat heat pump mode quickly heats a room to the desired temperature for increased comfort.

• Even-heat monitoring checks room temperature and automatically

• adds heat boost if necessary.

• Automatic periodic sampling of room temperature every nine minutes to ensure desired conditions are maintained.

• Reversible indoor air louvers to easily change direction of airflow.

• Modular product design ensures easy access to key components for cleaning and repairs, including washable, lift-out air filters.

• Remote thermostat pop-out wiring module allows easier wiring and unit change out without rewiring thermostat.

• Standard power cord installed on each unit (7-12k-3.5KW), (15K-5.0 KW).

• Compact front is designed to preserve indoor floor space with a depth of 7¾ inches.

• Surehold Front Cover System® securely attaches the front each time.

• Inner wall service plate provides service access to tangential blower bearing without having to open up the entire inner wall.

• Unit may be installed flush with the floor.
