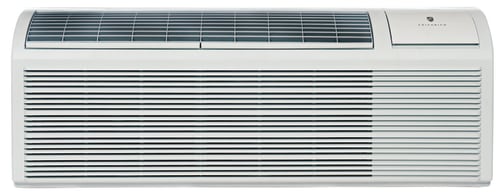

Friedrich PDH09R3SGR3 - 9700 BTU Packaged Terminal Air Conditioner with Heat Pump
Friedrich PDH09R3SGR3 - 9700 BTU Packaged Terminal Air Conditioner with Heat Pump
Friedrich PDH09R3SGR3 - 9700 BTU Packaged Terminal Air Conditioner

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Friedrich PDH09R3SGR3
Authorized
Dealer

Friedrich
PDH09R3SGR3
9,800 BTU Packaged Terminal Air Conditioner with Heat Pump, 12.1 EER, 2.11 Pts/Hr Moisture Removal, and Diamonblue™ Advanced Corrosion Protection

Top Quality Store on Google
quick specs
Width: 42 Inch
Depth: 21 Inch
Height: 16 Inch
Cooling Capacity (BTU): 9,800 BTU
WiFi: No
Remote Monitoring: No
Control Type: Digital
Plug Type: 7-20P
View more
$1,299.00
OR
FREE Delivery Available
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Friedrich
Model: PDH09R3SGR3
Dimensions
Width: 42 Inch
Depth: 21 Inch
Height: 16 Inch
Capacity
Smart
WiFi: No
Remote Monitoring: No
Features
Type: Wall
Maximum Cooling Amps: 3.1 Amps
Maximum Cooling Watts: 810 Watts
Maximum Heating Amps: 2.6 Amps
Maximum Heating Watts: 690 Watts
Heat: Heat Pump
Energy Efficiency Rating: 12.1
Control Type: Digital
PTAC: Yes
Indoor CFM, High: 330 CFM
Indoor CFM, Low: 282 CFM
Refrigerant Type: R-32
Technical Details
Energy Star Rated: No
ADA Compliant: No
Plug Type: 7-20P
Voltage: 265 Volts
Are you a Trade Pro? Join Now

Description

9800 BTU Packaged Terminal Air Conditioner
ZoneAire® Premier features advanced coil design to deliver exceptional energy efficiency. The curved coil design of the Premier Series maximizes the internal surface area to deliver higher efficiencies. Key components can be easily accessed by your maintenance team so units can be removed, serviced and placed back in service faster.

Specifications

Performance Data
Cooling BTU:
9800
Cooling Watts:
810
Energy Efficient Ratio, EER:
12.1
Heater Size (kW):
3.6
Reverse Heating Capacity BTU:
8600
Heating Watts:
690
COP (W/W):
3.65
Moisture Removal (pints/hr.):
2.11
Sensible Heat Ratio:
75%
Electrical Data
Voltage(1 PHASE, 60 Hz):
265
Volt Range:
292-239
Cooling Amps:
3.1
Reverse Heat Amps:
2.6
Power Factor:
0.99
Compressor LRA:
15
Compressor RLA:
3.4
Outdoor Fan Motor, HP:
0.08
Airflow Data
Indoor CFM, HIGH:
330
Indoor CFM, LOW:
282
Outdoor Air:
52
Physical Data
Sleeve Dimensions (H x W x D):
16” x 42” x 13 3/4” (all models)
Dimensions with Front (H x W x D):
16” x 42” x 21” (all models)
Cut Out Dimensions (H x W x D):
16 1/4”x 42 1/4” (all models)
Dimensions with Packaging (inches):
17 7/8" x 45" x 25 1/4" (all models)
R-32 Charge (oz.):
24.7
Net Weight (lbs.):
115
Shipping Weight (lbs.):
135

Features

Durable Construction
  • Superior materials and design reduce sound levels and improve overall guest satisfaction.
  • Aluminum endplates reduce corrosion of the outdoor coil.
  • Galvanized zinc coated steel wall sleeve and steel base pan undergo an 11-step preparation process, are powder coated with a polyester finish, and are oven- cured at high temperature for exceptional durability.
  • Factory run-tested units reduce problems in the field.
  • Internal diagnostic program can alert maintenance to component failures or operating problems.
  • Room freeze protection initiates heat if the temperature falls to 50°F inside an unoccupied guest room.
  • Random compressor restart protects electrical systems from overload when power is restored.
  • Tamper-resistant, anodized stamped aluminum grille withstands chalking and oxidation.
  • Break proof control door design maintains the integrity of the unit.
  • Indoor coil frost sensor protects the compressor to lengthen the life of the unit.
Energy Efficient & Energy Smart
  • Super-efficient refrigeration design with EERs up to 12.0 and COP up to 3.55.
  • Exceptional FriedrichLink® energy management thermostats available (wired & wireless) with integrated occupancy sensor, five distinct energy presets and comprehensive remote management capability.*
  • Energy efficient heat pump models available in our complete line.
  • Electronic defrost control ensures more run time in efficient heat pump mode.
  • Electronic temperature limiting to adjust low/ high temperature range limits for reduced energy usage.
  • Slinger ring technology in condensate removal system cools the coil and increases efficiency.
  • Central desk control ready to allow hotel owners to control units from a central location.
FreshAire® IAQ Ready
  • A full complement of Indoor Air Quality Products has been certified through installation and testing to ensure exceptional air quality is achieved when FreshAire® IAQ accessories are added.
  • Dehumidification removes up to 3.0 pints/hour of moisture in cool mode to improve comfort and reduce the chance of mold and mildew growth.
  • Fresh air damper brings in fresh outside air when desired.
  • Intuitive unit controls are user friendly with easy-to-read LED display that can show either set-point or actual room temperature as selected by owner.
  • Air filters are easy to access and washable.
  • Instant Heat heat pump mode quickly heats a room to the desired temperature for increased comfort.
  • Automatic periodic sampling of room temperature every nine minutes to ensure desired conditions are maintained.
  • Reversible indoor air louvers to easily change direction of airflow.
Diamonblue Advanced Corrosion Protection®
  • Indoor and outdoor coils are coated to resist corrosion in harsh outdoor environments.
Ease of Maintenance & Installation
  • Modular product design ensures easy access to key components for cleaning and repairs, including washable, lift-out air filters.
  • Remote thermostat pop-out wiring module allows easier wiring and unit change out without rewiring thermostat.
  • Surehold Front Cover System® securely attaches the front each time.
  • May be installed flush with the floor.
Sound Reduction Features
  • Two permanently lubricated fan motors for added durability and reduced sound levels indoors.
  • Quiet, efficient rotary compressor mounted with vibration isolators to keep the compressor running smoothly and quietly.
  • High-density insulation and steel inner wall block outdoor noise.
  • Tangential blower wheel creates a wide path air flow that reaches the furthest corner of the guest room more quietly than conventional fans.
Warranty and Service
  • 2-year full warranty on parts and labor and 5-year limited warranty.
  • Nationwide service network and U.S.-based Friedrich expert technical team ensures you
  • get fast, knowledgeable service.
Key Features
Diamonblue™ Advanced Corrosion Protection
Diamondblue™ Advanced Corrosion Protection provides specially coated indoor and outdoor coils designed to resist corrosion, offering enhanced durability even in the toughest outdoor conditions.
