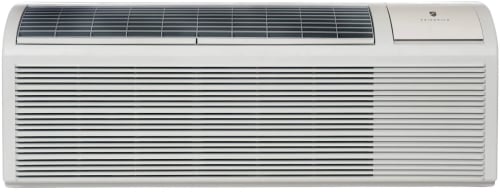

Friedrich ZoneAire Series PDH07R3SGR3 - 7,300 BTU Cooling PTAC Thru-The-Wall Air Conditioner with Heat Pump
Friedrich ZoneAire Series PDH07R3SGR3 - 7,300 BTU Cooling PTAC Thru-The-Wall Air Conditioner with Heat Pump
Friedrich ZoneAire Series PDH07R3SGR3 - PTAC Air Conditioner with Heat Pump
Friedrich ZoneAire Series PDH07R3SGR3 - PTAC Air Conditioner with Heat Pump
+3

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Friedrich ZoneAire Series PDH07R3SGR3
Authorized
Dealer

Friedrich ZoneAire Series
PDH07R3SGR3
7,300 BTU Cooling PTAC Thru-The-Wall Air Conditioner with Heat Pump, 312 CFM Airflow, 2 Fan Speed, 1.7 Pints/ Hr, Electronic Control, and R32 Refrigerant

Top Quality Store on Google
quick specs
Width: 42 Inch
Depth: 21 Inch
Height: 16 Inch
Cooling Capacity (BTU): 7,300 BTU
Heating Capacity (BTU): 6,000 BTU
WiFi: No
Control Type: Digital
Plug Type: 7-20P
View more
$1,289.00
OR
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Friedrich
Series: ZoneAire Series
Model: PDH07R3SGR3
Dimensions
Width: 42 Inch
Depth: 21 Inch
Height: 16 Inch
Capacity
Cooling Capacity (BTU): 7,300 BTU
Heating Capacity (BTU): 6,000 BTU
Smart
WiFi: No
Features
Type: Wall
Maximum Cooling Amps: 2.1 Amps
Maximum Cooling Watts: 560 Watts
Maximum Heating Amps: 1.8 Amps
Maximum Heating Watts: 490 Watts
Heat: Heat Pump
Energy Efficiency Rating: 13
Control Type: Digital
PTAC: Yes
Indoor CFM, High: 311 CFM
Indoor CFM, Low: 282 CFM
Refrigerant Type: R-32
Technical Details
ADA Compliant: No
Plug Type: 7-20P
Voltage: 265 Volts
Are you a Trade Pro? Join Now

Description

7,300 BTU Cooling PTAC Thru-The-Wall Air Conditioner with Heat Pump
Friedrich PTAC units are super quiet and efficient. They can be used in both commercial and residential applications. This unit is backed with the reliability you have come to expect from a company like Friedrich who only makes one thing - air conditioners. The PDH07R3SGR3 Friedrich Premier line PTAC unit proudly includes R32 refrigerant. R32 is up to 12% more efficient than R410A, resulting in lower Global Warming Potential (GWP). The lower the GWP, the better for the environment.
The PDH07R3SGR3 PTAC unit offers 7300 BTU cooling capacity with a 6000 BTU heat pump, plus electric heat and an EER of 13. This unit features 2 fan speeds for better circulation and with 265V electricity, it is for commercial use only. The Constant Fan Mode on the SG Series produces an uninterrupted stream of white noise. This helps to block outside noise as well as minimize some of the noise related to compressor start-up.

Specifications

Performance Data
Cooling Btu:
7300
Cooling Watts:
560
Energy Efficiency Ratio, EER:
13.0
Heater Size (kW):
3.6
Reverse Heating Btu:
6000
Heating Watts:
490
COP (W/W):
3.6
Moisture Removal (pints/hr.):
1.69
Sensible Heat Ratio:
83%
Electrical Data
Voltage (1 PHASE, 60 Hz):
265
Volt Range:
238.5-291.5
Current (Amps):
2.1
Reverse Heat (Amps):
1.8
Power Factor:
1.0
Compressor LRA:
12
Compressor RLA:
2.2
Outdoor Fan Motor, HP:
0.08
Airflow Data
Indoor CFM, HIGH:
311.9
Indoor CFM, LOW:
282.48
Outdoor Air:
75
R-32 Charge (oz.):
27.51
Dimension and Weight
Sleeve Dimensions (H x W x D):
16” x 42” x 13 3/4”
Dimensions with front (H x W x D):
16” x 42” x 21”
Cut Out Dimensions (H x W):
16 1/4” x 42 1/4”
Net Weight (lbs.):
112.45
Shipping Weight (lbs.):
134.5

Features

Durable & Reliable Construction
  • Stainless steel end plates reduce outdoor coil corrosion.
  • Galvanized zinc coated steel wall sleeve and steel base pan undergo an 11-step preparation process, are powder coated with a polyester finish and cured in an oven for exceptional durability.
  • Additional heating element bottom plate above an improved heat shield provides extra thermal protection.
  • Additional thermistor on the blower scroll outlet regulates internal temperature.
  • Factory run-tested units reduce problems in the field.
  • Internal diagnostic programs can alert maintenance to component failures or operating problems.
  • Easy access filters simplify maintenance and extend the life of the product.
  • Room freeze protection initiates heat if temperature falls to 40°F in an unoccupied room.
  • Random compressor restart protects electrical systems from overload when power is restored.
  • Tamper-resistant, anodized stamped aluminum grille withstands chalking and oxidation.
  • Break-proof control door design maintains the integrity of the unit.
  • Indoor coil frost sensor protects the compressor to lengthen the life of the unit.
  • Diamonblue™ Advanced Corrosion Protection protects the outdoor coil from harsh environments.
Energy Efficient & Energy Smart
  • Super-efficient refrigeration design with EERs up to 13.0 and COP up to 3.6.
  • Advanced coil design adds more surface area leading to higher efficiencies.
  • Thicker steel inner-wall and foam construction decreases thermal transfer and energy loss.
  • Energy efficient heat pump models available in our complete line.
  • Electronic defrost control ensures more run time in efficient heat pump mode.
  • Electronic temperature limiting to adjust low/high temperature range limits for reduced energy usage.
  • Slinger ring technology in condensate removal system cools the coil and increases efficiency.
  • Desk control ready to allow hotel owners to control units from a central location.
Sound Reduction Technology
  • Two permanently lubricated fan motors for added durability and reduced sound levels indoors.
  • Quiet, efficient rotary compressor mounted with vibration isolators to keep the compressor running smoothly and quietly.
  • Tangential blower wheel creates a wide path air flow that reaches the furthest corner of the guest room more quietly than conventional fans.
FreshAire® IAQ Ready
  • Dehumidification removes up to 3.1 pints/hour of moisture in cool mode to improve comfort and reduce the chance of mold and mildew growth.
  • Constant Fan mode provides continuous fan operation in cooling or heating modes to create a steady stream of white noise that masks sound level changes when the compressor cycles on/off.
  • Fresh air damper brings in fresh outside air when desired.
  • Air filters are easy to access and washable.
  • Instant Heat on heat pump models quickly heats a room to the desired temperature for increased comfort.
  • Reversible indoor air louvers to easily change airflow direction.
Ease of Maintenance & Installation
  • Modular product design ensures easy access to key components for cleaning and repairs; including washable, lift-out air filters.
  • Remote thermostat pop-out wiring module allows easier wiring and unit change out without
  • rewiring the thermostat.
  • Surehold Front Cover System® securely attaches the front each time.
Warranty and Support
  • Industry leading warranty features 2-year full warranty on parts and labor and 5-year limited warranty.
Other Features
  • 312 CFM Airflow
  • 2 Fan Speed
  • 1.7 Pints/ Hr Dehumidification
  • Electronic Control
  • R32 Refrigerant
Key Features
QuietMaster®
QuietMaster® Technology is designed for exceptional quiet performance, utilizing premium components to operate up to 45% quieter than competing products.
