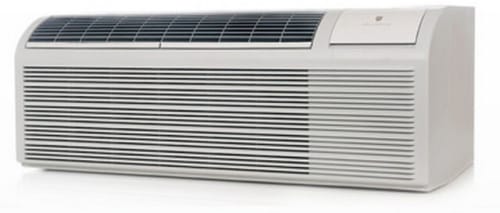

Friedrich PDE15R5SGR3 - 14,800 BTU PTAC
Friedrich PDE15R5SGR3 - 14,800 BTU PTAC
Friedrich PDE15R5SGR3 - 14,800 btu ptac
Friedrich PDE15R5SGR3 - 14,800 btu ptac
+1

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Friedrich PDE15R5SGR3
Authorized
Dealer

Friedrich
PDE15R5SGR3
14,800 BTU Packaged Terminal Air Conditioner with Electric Heat, DiamonBlue Advanced Corrosion Protection, 10.6 EER, 3.17, Pts/ Hr Dehumidification, Dual Motors, Room Freeze Protection and 265 Volts

Top Quality Store on Google
quick specs
Width: 42 Inch
Depth: 21 1/4 Inch
Height: 16 Inch
Cooling Capacity (BTU): 14,800 BTU
WiFi: No
Remote Monitoring: No
Control Type: Digital
Plug Type: 7-30P
View more
$1,379.00
OR
FREE Delivery Available
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Friedrich
Model: PDE15R5SGR3
Dimensions
Width: 42 Inch
Depth: 21 1/4 Inch
Height: 16 Inch
Capacity
Smart
WiFi: No
Remote Monitoring: No
Features
Type: Wall
Maximum Cooling Amps: 5.3 Amps
Maximum Cooling Watts: 1,400 Watts
Heat: No
Energy Efficiency Rating: 10.6
Control Type: Digital
PTAC: Yes
Indoor CFM, High: 341 CFM
Indoor CFM, Low: 306 CFM
Vent CFM: 75 CFM
Refrigerant Type: R-32
Technical Details
Energy Star Rated: No
Plug Type: 7-30P
Voltage: 265 Volts
Are you a Trade Pro? Join Now

Description

14,800 BTU Packaged Terminal Air Conditioner
The Friedrich unit is a high-efficiency 14,800 BTU Packaged Terminal Air Conditioner (PTAC) designed to provide both cooling and heating for small to medium-sized spaces. This unit is part of Friedrich's line of PTACs known for their reliability and performance.

Specifications

Overview
Cooling BTU:
14,800
Cooling Watts:
1400
EER:
10.6
Heater Size:
5
Moisture Removal:
3.17
Sensible Heat Ratio:
67%
Electrical Data
Voltage:
265
Volt Range:
292-239
Current Amps:
5.3
Power Factor:
0.97
Compressor LRA:
26.0
Compressor RLA:
6.4
Outdoor Fan Motor HP:
0.086
Indoor CFM High:
341.33
Indoor CFM Low:
306.02
Vent CFM:
75
Dimensions
Sleeve Dimensions (H x W x D):
16" x 42" x 13 3/4"
Dimensions with Front (H x W x D):
16" x 42" x 21 1/2"
Cut Out Dimensions (H x W x D):
16 1/4" x 42 1/4
Net Weight:
114.7
Shipping Weight:
136.7
R-410A Charge (oz.):
19.67
Dimensions with Packaging (inches):
17 7/8" x 45" x 25 1/4"

Features

QuietMaster® Technology
  • Solid-steel inner wall
  • Advanced airflow design
  • High-density insulation and foam for sound absorption
  • Aesthetically engineered to block indoor noise
  • Counterweights for vibration
  • dampening
8-Way Airflow Control
  • With the 8-way air-flow control, your room will cool more quickly
Washable Air Filters
  • A washable air filter ensures only the cleanest air enters your space
24-Hour Timer
  • You can program the remote to run the device for up to 24 hours in the amount of time you wish
3 Cool/Fan Speeds
  • With three cooling and fan speeds, finding the right setting for you is easy
Auto Restart
  • Auto restart saves settings if power is interrupted
Remote Control
  • Allows you to have complete control over the room's temperature and fan speed from anywhere
Other Features
  • Money Saver®
  • R-32 Refrigerant
  • Universal fit decorative trim ring
Key Features
QuietMaster®
QuietMaster® Technology is designed for exceptional quiet performance, utilizing premium components to operate up to 45% quieter than competing products.
Money Saver® Mode
MoneySaver® Mode operates the fan only during cooling cycles, helping reduce energy usage and lower your bills.
