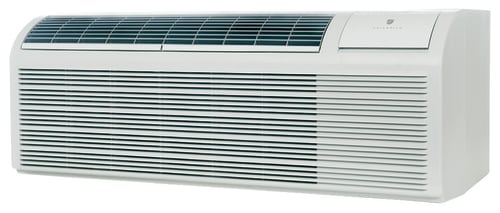

Friedrich ZoneAire Series PDE12K3SGR3 - 12000 BTU PTAC Air Conditioner

Image Disclaimer

Authorized

Dealer

Friedrich ZoneAire Series

PDE12K3SGR3

12,300 BTU Packaged Terminal Air Conditioner with Electric Heat, 11.6 EER, R32 Refrigerant, 2.74 Pts/ Hr Dehumidification, 2 Fan Speeds, FreshAire® IAQ Ready, Condensate Removal System, Electronic Defrost Control, Fresh Air Damper Control and Washable Air Filters

Name: Friedrich ZoneAire Series PDE12K3SGR3
Brand: Friedrich
SKU: PDE12K3SGR3
Price: 1129 USD

Be the first to write a review

Top Quality Store on Google

quick specs

Width: 42 Inch

Depth: 21 1/2 Inch

Height: 16 Inch

Cooling Capacity (BTU): 12,300 BTU

CFM Room Circulation: 75 CFM

WiFi: No

Remote Monitoring: No

Control Type: Digital

Plug Type: 6-20P

^$1,129^.00

Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information

Brand: Friedrich

Series: ZoneAire Series

Model: PDE12K3SGR3

Dimensions

Width: 42 Inch

Depth: 21 1/2 Inch

Height: 16 Inch

Capacity

Cooling Capacity (BTU): 12,300 BTU

CFM Room Circulation: 75 CFM

Smart

WiFi: No

Remote Monitoring: No

Features

Maximum Cooling Amps: 4.7 Amps

Maximum Cooling Watts: 1,060 Watts

Heat: Electric Heat

Energy Efficiency Rating: 11.6

Control Type: Digital

PTAC: Yes

Window Type: Standard

Indoor CFM, High: 341 CFM

Indoor CFM, Low: 306 CFM

Vent CFM: 75 CFM

Refrigerant Type: R-32

Technical Details

Energy Star Rated: No

Plug Type: 6-20P

Voltage: 230/208 Volts

Description
Specifications
Features
Reviews

Description

12,300 BTU Packaged Terminal Air Conditioner
Our most efficient standard PTAC with exceptional performance and leading warranty for the lowest cost of operation. ZoneAire Premier PTAC is available in electric heat and heat pump options, ranging from 7,000 to 15,000 Btu. Breathe easy with the all-new line-up of FreshAire IAQ accessories to deliver healthy indoor air.

Specifications

Performance Data

Cooling BTU:

12,300

Cooling Watts:

1060

EER:

11.6

Heater Size:

3.6

Moisture Removal:

2.74

Sensible Heat Ratio:

75%

Electrical Data

Voltage:

230/208

Volt Range:

253-187

Current (Amps):

4.7/5.0

Power Factor:

0.97

Compressor LRA:

30.0

Compressor RLA:

4.0

Outdoor Fan Motor:

0.086

Airflow Data

Indoor CFM High:

341.33

Indoor CFM Low:

306.02

Vent CFM:

Physical Data

Sleeve Dimensions (H x W x D):

16" x 42" x 13 3/4"

Dimensions with Front (H x W x D):

16" x 42" x 21 1/2"

Cut Out Dimensions (H x W x D):

16 1/4" x 42 1/4"

Dimensions with Packaging (inches):

17 7/8" x 45" x 25 1/4"

Net Weight:

114.66

Shipping Weight:

136.71

R32:

21.16

Features

Durable Construction

Superior materials and design reduce sound levels and improve overall guest satisfaction. Galvanized zinc coated steel wall sleeve and steel base pan undergo an 11-step preparation process, are powder coated with a polyester finish and are oven-cured at h

Energy Efficiency

Friedrich PTACs feature a super-efficient refrigeration design with EERs up to 13.0 and COP up to 3.6. Energy efficient heat pump models are also available in our complete line.

Comfort & Convenience

Intuitive unit controls are user friendly with easy-to-read LED display that can show either set point or actual room temperature as selected by owner. Dehumidification removes moisture in cool mode to improve comfort and reduce the chance of mold and mil

Quietmaster Technology

Building the quietest air conditioners begins with the design process and continues through the selection of superior components and materials. It is shaped by skilled manufacturing and refined through on- going product testing in our engineering lab.

FreshAire IAQ Ready

FreshAire IAQ is a suite of indoor air quality (IAQ) accessories for use with Friedrich Air Conditioners, all with one dedicated purpose - healthy indoor air. This product is compatible with FreshAire UV, and FreshAire Purifier by iWave. Click here for mo

Sound Reduction Technology

Friedrich PTACs come standard with two permanently lubricated fan motors for added durability and reduced sound levels indoors. Units also have a quiet, efficient rotary compressor mounted with vibration isolators to keep the compressor running smoothly a

Warranty & Support

Friedrich's industry leading warranty features 2-year full warranty on parts and labor and 5-year limited warranty. Our nationwide service network and U.S.-based Friedrich expert technical team ensures you get fast, knowledgeable service.

Maintenance and Installation

Modular product design ensures easy access to key components for cleaning and repairs, including washable, lift-out air filters. Surehold Front Cover System securely attaches the front each time. Unit may be installed low to the floor.

Key Features

QuietMaster®

QuietMaster® Technology is designed for exceptional quiet performance, utilizing premium components to operate up to 45% quieter than competing products.
