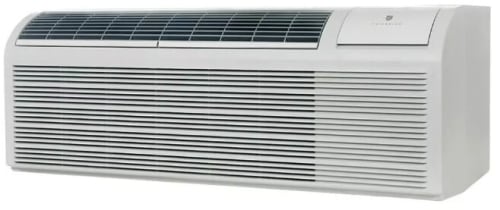

Friedrich PDE09R3SGR3 - 10,000 BTU Window Air Conditioner
Friedrich PDE09R3SGR3 - 10,000 BTU Window Air Conditioner

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Friedrich PDE09R3SGR3
Authorized
Dealer

Friedrich
PDE09R3SGR3
10,000 BTU Packaged Terminal Air Conditioner with Electric Heat, DiamonBlue Advanced Corrosion Protection, 12.5 EER, 2.11 Pts/ Hr Dehumidification, Dual Motors, Room Freeze Protection and 265 Voltage

Top Quality Store on Google
quick specs
Width: 42 Inch
Depth: 21 1/2 Inch
Height: 16 Inch
Cooling Capacity (BTU): 10,000 BTU
WiFi: No
Remote Monitoring: No
Chassis Type: Thru the Wall
Control Type: Digital
Plug Type: 7-20P
View more
$1,229.00
OR
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Friedrich
Model: PDE09R3SGR3
Dimensions
Width: 42 Inch
Depth: 21 1/2 Inch
Height: 16 Inch
Capacity
Smart
WiFi: No
Remote Monitoring: No
Features
Type: Wall
Chassis Type: Thru the Wall
Maximum Cooling Amps: 3.2 Amps
Maximum Cooling Watts: 800 Watts
Heat: Electric Heat
Energy Efficiency Rating: 12.5
Control Type: Digital
PTAC: Yes
Window Type: Standard
Indoor CFM, High: 330 CFM
Indoor CFM, Low: 282 CFM
Vent CFM: 75 CFM
Refrigerant Type: R-32
Technical Details
Energy Star Rated: No
ADA Compliant: No
Plug Type: 7-20P
Voltage: 265 Volts
Are you a Trade Pro? Join Now

Description

10,000 BTU Packaged Terminal Air Conditioner
The Friedrich unit is a high-efficiency 10,000 BTU Packaged Terminal Air Conditioner (PTAC) designed to provide both cooling and heating for small to medium-sized spaces. This unit is part of Friedrich's line of PTACs known for their reliability and performance.

Specifications

Overview
Cooling BTU:
10000
Cooling Watts:
775
EER:
12.1
Heater Size:
3.6
Moisture Removal:
2.11
Sensible Heat Ratio:
85%
Electrical Data
Voltage:
265
Volt Range:
292-239
Current Amps:
3.3
Power Factor:
0.97
Compressor LRA:
13.5
Compressor RLA:
3.0
Outdoor Fan Motor HP:
0.080
Indoor CFM High:
330
Indoor CFM Low:
282
Vent CFM:
75
Dimensions
Sleeve Dimensions (H x W x D):
16" x 42" x 13 3/4"
Dimensions with Front (H x W x D):
16" x 42" x 21 1/2"
Cut Out Dimensions (H x W x D):
6 1/4" x 42 1/4"
Net Weight:
110.3
Shipping Weight:
132.3
R-410A Charge (oz.):
24
Dimensions with Packaging (inches):
17 7/8" x 45" x 25 1/4

Features

QuietMaster® Technology
  • Solid-steel inner wall
  • Advanced airflow design
  • High-density insulation and foam for sound absorption
  • Aesthetically engineered to block indoor noise
  • Counterweights for vibration
  • dampening
8-Way Airflow Control
  • With the 8-way air-flow control, your room will cool more quickly
Washable Air Filters
  • A washable air filter ensures only the cleanest air enters your space
24-Hour Timer
  • You can program the remote to run the device for up to 24 hours in the amount of time you wish
3 Cool/Fan Speeds
  • With three cooling and fan speeds, finding the right setting for you is easy
Auto Restart
  • Auto restart saves settings if power is interrupted
Remote Control
  • Allows you to have complete control over the room's temperature and fan speed from anywhere
Other Features
  • Money Saver®
  • R-32 Refrigerant
  • Universal fit decorative trim ring
