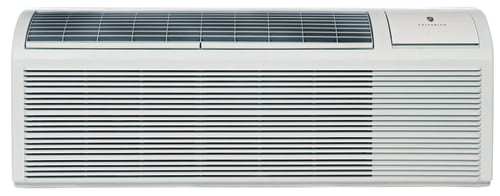

Friedrich PDE09K3SGR3 - 10,200 BTU ZoneAire Premier Packaged Terminal Air Conditioner
Friedrich PDE09K3SGR3 - 10,200 BTU ZoneAire Premier Packaged Terminal Air Conditioner
Friedrich PDE09K3SGR3 - 10,200 BTU ZoneAire Premier Packaged Terminal Air Conditioner
Friedrich PDE09K3SGR3 - 10,200 BTU ZoneAire Premier Packaged Terminal Air Conditioner
+1

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Friedrich PDE09K3SGR3
Authorized
Dealer

Friedrich
PDE09K3SGR3
10,200 BTU ZoneAire Premier Packaged Terminal Air Conditioner with Electric Heat, Diamonblue™ Advanced Corrosion Protection, 12.5 EER, 2.11 Pts/ Hr Dehumidification, Dual Motors, Antimicrobial Treated Filter, Room Freeze Protection and R32 Refrigerant

Top Quality Store on Google
quick specs
Width: 42 Inch
Depth: 21 1/2 Inch
Height: 16 Inch
Cooling Capacity (BTU): 10,200 BTU
WiFi: No
Remote Monitoring: No
Chassis Type: Thru the Wall
Control Type: Digital
Remote Control Included: No
Plug Type: 6-20P
View more
$1,119.00
OR
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Friedrich
Model: PDE09K3SGR3
Dimensions
Width: 42 Inch
Depth: 21 1/2 Inch
Height: 16 Inch
Capacity
Smart
WiFi: No
Remote Monitoring: No
Features
Type: Wall
Chassis Type: Thru the Wall
Maximum Cooling Amps: 3.9 Amps
Maximum Cooling Watts: 810 Watts
Heat: Electric Heat
Energy Efficiency Rating: 12.5
Control Type: Digital
Remote Control Included: No
PTAC: Yes
Window Type: Standard
Indoor CFM, High: 330 CFM
Indoor CFM, Low: 282 CFM
Vent CFM: 75 CFM
Refrigerant Type: R-32
Technical Details
Energy Star Rated: No
ADA Compliant: No
Plug Type: 6-20P
Voltage: 230/208 Volts
Are you a Trade Pro? Join Now

Description

10,200 BTU Packaged Terminal Air Conditioner
This unit is a 10,200BTU cooling PTAC with electric resistive heat and an EER of 12.5. Not only is this unit better for the environment with its R32 refrigerant, it will save you money and run efficiently for years to come! It uses 208 / 230V electricity and features a 2 speed fan for better circulation. The Constant Fan Mode on the SG Series produces an uninterrupted stream of white noise. This helps to block outside noise as well as minimize the some of the noise related to compressor start-up.

Specifications

Performance Data
Cooling Capacity:
10,200
Cooling Watts:
810
EER:
12.5
Heater Size kW:
3.6
Moisture Removal:
2.11
Sensible Heat Ratio:
85%
Electrical Data
Voltage:
230/208
Volt Range:
253-187
Current Amps:
3.6
Power Factor:
0.97
Compressor LRA:
17.0
Compressor RLA:
3.1
Outdoor Fan Motor:
0.080
Air Flow Data
Indoor CFM High:
330
Indoor CFM Low:
282
Vent CFM:
75
Dimensions
Sleeve Dimensions H x W x D:
16" x 42" x 13 3/4" (all models)
Dimensions with front H x W x D:
16" x 42" x 21 1/2" (all models)
Cut Out Dimensions H x W:
16 1/4" x 42 1/4" (all models)
Packaged Dimensions:
17 7/8" x 45" x 25 1/4" (all models)
Net Weight:
110.25
Shipping Weight:
132.3
R32 Charge:
17.28

Features

Conditioned Fresh Air
  • Friedrich's FreshAire ® PTAC system helps achieve ASHRAE 62.1-2013 requirements, and brings up to 52 CFM of conditioned, MERV 8 filtered, outside air into the space. Patents-pending technology uses the inverter compressor and main cooling system to optim
Precision Inverter ® Technology
  • Precision Inverter ® variable speed compressors deliver efficiencies up to 13 EER and a 15 SEER equivalent. Compressors operate down to 20% of rated capacity, or up to 120%, matching the unit output to the actual demand of the space for increased comfort
Widest Cooling & Heating Range in the Industry
  • Variable speed technology gives you the flexibility of a full line of PTACs with only two models, and offers the highest available capacity of any 42x16 PTAC on the market at over 17000 Btus.
FreshAire ® IAQ Ready
  • FreshAire ® IAQ is a suite of indoor air quality (IAQ) accessories for use with Friedrich Air Conditioners, all with one dedicated purpose - healthy indoor air. This product includes our patented FreshAire ® make-up system and is compatible with FreshAi
The Smoothest PTAC Sound Available
  • The variable-speed operation of the FreshAire PTAC allows the unit to work at the optimal speed to match the true load of the room. This not only provides the best energy consumption curve but it also adds to guest comfort by eliminating the harsh start-u
Comfort & Convenience
  • Intuitive unit controls are user friendly with easy-to-read LED display that can show either set point or actual room temperature as selected by owner. Dehumidification removes moisture in cool mode to improve comfort and reduce the chance of mold and mil
Maintenance and Installation
  • Modular product design ensures easy access to key components for cleaning and repairs, including washable, lift-out air filters. Surehold Front Cover System securely attaches the front each time. Unit may be installed low to the floor.
Key Features
QuietMaster®
QuietMaster® Technology is designed for exceptional quiet performance, utilizing premium components to operate up to 45% quieter than competing products.
Money Saver® Mode
MoneySaver® Mode operates the fan only during cooling cycles, helping reduce energy usage and lower your bills.
