Description

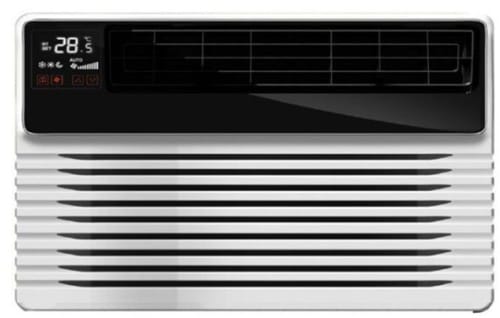

9,300 BTU Through the Wall Air Conditioner
A through-the-wall / TTW air conditioner is less intrusive and will not obstruct your window view! The Amana PBC092J00AA is both powerful and quiet. It features 9,300 BTUs of cooling power and boasts 9.8 EER and 9.7 CEER ratings. It will efficiently cool a room that is about 300 - 400 sq. ft. The Amana TTWs are installed into a wall, using a standard sized 26" wall sleeve and grille (sold separately). Using the attached 8 ft. long, LCDI three-prong power cord, this unit will plug into a standard household outlet. The power cord is a 15 amp, 115V.
Specifications
Overview
Type of Through-the-Wall:
26" Through-the-Wall
Sleeve Required for Install:
Yes
Fits Sleeve Size (in.):
26
Trim Kit / Installation Kit:
Not Included
Dehumidification (pts/hr):
2.1
Cooling BTUs (@115V):
9300
Cooling Amps (@115V):
7.4
Cooling Watts (@115V):
950
Control Type:
Electronic/Digital
Filter Access:
Easy Access Slide Out
Connectivity:
Not WiFi Compatible
Weights and Dimensions
Max. Wall Thickness (in.):
16.375
Wall Cut-Out Width (in.):
26.188
Wall Cut-Out Height (in.):
15.813
Electrical Requirements
Circuit Breaker Size (Amps):
15
Features
Cooling Capacity
- Delivers 9,300 BTUs of cooling power, suitable for medium-sized rooms.
Energy Efficiency
- Boasts an Energy Efficiency Ratio (EER) of 9.8 and a Combined Energy Efficiency Ratio (CEER) of 9.7, ensuring cost-effective operation.
Fan Speeds
- Offers four cooling fan speeds (Low, Medium, High, Turbo) and three fan-only speeds (Low, Medium, High) for customizable comfort.
Control Options
- Features an electronic touchpad and comes with a handheld remote control for convenient operation. Additionally, it's wired thermostat capable, compatible with both non-programmable (PHWT-A150H) and programmable (PHWT-A200) thermostats.
Airflow Management
- Equipped with a top grille discharge and 3-way adjustable airflow, allowing you to direct cooled air precisely where needed.
Air Exchange
- Includes a 30 CFM exhaust function to help maintain fresh indoor air quality.
Maintenance Features
- Designed with a slide-out chassis for straightforward installation and servicing. The permanent, washable polypropylene mesh filter is easily accessible for routine cleaning, and the removable condenser top facilitates quick access to coils for thorough m
Quiet Operation
- Engineered for minimal noise, ensuring a comfortable and peaceful environment.
Durability and Testing
- Undergoes a 100% full factory run test to ensure reliable and dependable performance from the outset.
Warranty
- Backed by a 1-year parts and labor warranty and a 5-year compressor warranty, providing peace of mind regarding your investment.
