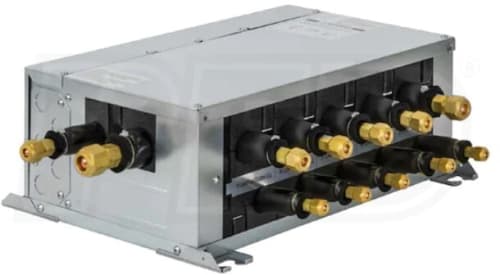

Mitsubishi Electric M Series PACMKA52BC - 5 Port Branch Box
Mitsubishi Electric M Series PACMKA52BC - 5 Port Branch Box

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Mitsubishi Electric M Series PACMKA52BC
Authorized
Dealer

Mitsubishi Electric M Series
PACMKA52BC
5 Port Branch Box

Top Quality Store on Google
$2,900.00
OR
FREE Delivery Available
Have questions? Chat with us!
Product Information
Brand: Mitsubishi Electric
Series: M Series
Model: PACMKA52BC
Are you a Trade Pro? Join Now

Description

5 Port Branch Box
The PAC-MKA51BC is a five port branch box for use in multi-zone mini split applications with Mitsubishi's MXZ-4C, MXZ-5C, and MXZ-8C outdoor condensers. It manages the flow of both refrigerant and power from the outdoor condenser to any connected indoor units. With electronic LEVs, Mitsubishi's branch boxes ensure optimal refrigerant flow and an accurate coil temperature for your mini split indoor units.

Specifications

Overview
Type:
Branch Box
Product Line:
M-Series
Ports Quantity:
5
Electrical Data
Phase:
1
Frequency:
60 Hz
Dimensions
Gas Connection Size:
5/8 Inch
Suction Connection Size:
3/8 Inch
Line Set A Liquid Connection:
1/4 Inch
Line Set A Gas Connection:
3/8 Inch
Line Set B Liquid Connection:
1/4 Inch
Line Set B Gas Connection:
3/8 Inch
Line Set C Liquid Connection:
1/4 Inch
Line Set C Gas Connection:
3/8 Inch
Line Set D Liquid Connection:
1/4 Inch
Line Set D Gas Connection:
3/8 Inch
Line Set E Liquid Connection:
1/4 Inch
Line Set E Gas Connection:
1/2 Inch
Product Height:
6 11/16 Inches
Product Width:
21 5/16 Inches
Product Depth:
16 17/48 Inches
Product Weight:
21 Pounds
Warranty Information
Parts Warranty Day:
90

Features

Compact Design
  • Saves space, making it easier to install in tight locations such as ceilings or wall spaces.
Efficient Refrigerant Distribution
  • Manages the flow of refrigerant efficiently between the outdoor and multiple indoor units.
Versatility
  • Compatible with Mitsubishi Electric's VRF systems, allowing connection to various types and capacities of indoor units.
Silent Operation
  • Designed to minimize operational noise, ensuring a quieter environment.
Ease of Installation
  • Comes with simplified piping and wiring configurations to reduce installation time and complexity.
Durability
  • Built with high-quality materials to withstand different environmental conditions and ensure long-term performance.
Integrated Control
  • Often includes built-in sensors or valves for better control and system performance monitoring.
Energy Efficiency
  • Optimizes the system's energy usage by controlling refrigerant flow precisely to meet indoor unit demands.
