Description

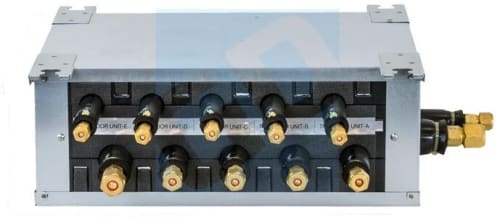

5-Port Branch Box For Ductless Mini Split AC Multizone Outdoor Units
The Mitsubishi Electric PAC-LMA50BC Branch Box is a key component in multi-zone HVAC systems, designed to efficiently distribute refrigerant and optimize the performance of connected indoor units. Supporting up to five indoor units, this branch box is ideal for both residential and commercial applications where reliable and balanced operation is required.
Specifications
Overview
Product Type:
3-Port Branch Box
External Finish:
Galvanized steel
Electrical
Power Supply:
Single phase, 208/230 VAC, 60 Hz
Piping Connection (Flare)
Branch (indoor side)* Liquid Inch (mm):
ø1/4 (6.35) x 5 {A,B,C,D,E}
Branch (indoor side)* Gas Inch (mm):
ø3/8 (9.52) x 4 {A,B,C,D}, ø1/2 (12.7) x 1{E}
Main (outdoor side) Liquid Inch (mm):
ø3/8 (9.52)
Main (outdoor side) Gas Inch (mm):
ø5/8 (15.88)
Dimension and Weight
Width Inch (mm):
17-3/4 (450)
Depth Inch (mm):
11-1/16 (280)
Height Inch (mm):
6-3/4 (170)
Weight lbs (kg):
16.0 (7.4)
Package Dimensions
Width Inch (mm):
24-7/16 (620)
Depth Inch (mm):
20-1/8 (510)
Height Inch (mm):
8-5/16 (210)
Features
- Supports Multiple Indoor Units: Connects up to three indoor units for flexible installation.
- Efficient Refrigerant Distribution: Ensures balanced refrigerant flow to each connected unit.
- Durable Construction: Galvanized steel casing provides long-lasting protection.
- Compact Design: Optimized dimensions for easy installation in tight spaces.
- Low Power Consumption: Operates efficiently with a power input of only 0.003 kW.
