Description

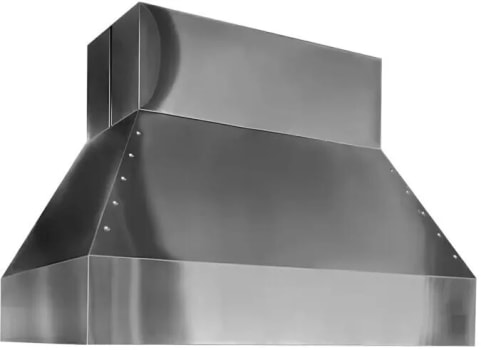

60 Inch Pyramid Island-Style Barbeque Grill Hood
Designed to make a bold statement in any outdoor kitchen, this island hood combines commercial-grade performance with refined craftsmanship. Constructed from heavy-gauge #304 stainless steel, it features a generous 32" capture depth, double-bank baffle filters, and powerful internal blowers delivering up to 2300 CFM for exceptional smoke and grease removal. Recessed controls, dimmable lighting, and quiet, rubber-mounted motor operation ensure a seamless blend of high performance, durability, and sophisticated style.
Specifications
General
Series:
P7200 Pyramid-Style Island Hood
Approved for Outdoor Use:
Yes
Warranty:
3-Year Limited Parts & Labor
Air & Ventilation
Blower:
Internal blower not included (sold separately option)
Duct Collar Size:
2 × 10"
Controls
Dimmable Light Control:
Yes
Lighting
Filters
Filter Type:
Stainless Steel Baffle Filters
Installation
Convertible Ducting:
Yes (vertical and horizontal)
Included:
Telescopic Duct Cover (up to ~10′ ceilings)
Material
Exterior Material:
Stainless Steel
Stainless Steel Grade:
#304 commercial-grade
Electrical
Dimensions
Depth (Front-to-Back):
32"
Features
Lighting
- Recessed controls conceal buttons and reduce glare for a clean front appearance. Integrated LED lights illuminate the cooking surface — two on 36" models, three on 48" and 60" models, and four on 72" models.
Enduring Quality
- Constructed from commercial-grade #304 stainless steel with galvanized steel components for lasting durability. CFM and sound levels independently tested by the Energy Systems Laboratory at Texas A&M University.
Quiet Operation
- Rubber-mounted motor and large squirrel-cage blowers minimize vibration and noise, while a 3-speed motor control allows quieter air movement.
Built for Performance
- Double-bank stainless steel baffle filters create an expanded active capture area. The generously proportioned 32" hood depth (16" at top on pyramid models) and 24" height provide exceptional smoke and grease capture.
Ease of Use
- Cool-touch knurled control knobs provide smooth, precise operation.
Flexible Installation
- All 24" body hoods convert from vertical to horizontal discharge at the job site for installation versatility.
Hood Style
- Pyramid design with 16" depth at the top and 32" depth at the bottom for enhanced capture performance.
Powerful Ventilation
- High-performance internal blowers deliver up to 1200 CFM on 48" models and 2300 CFM on 60" models.
Premium Construction
- Heavy-gauge #304 stainless steel with #4 brushed finish for a professional appearance and durability.
Professional Lighting
- Dimmable 50-watt halogen lights provide bright, adjustable task lighting.
Commercial-Style Baffle Filters
- Includes four 12" x 14" stainless steel baffle filters engineered for enhanced grease capture and a professional aesthetic.
Adjustable Duct Cover
- Two-piece telescopic duct cover accommodates ceiling heights up to 10'.
