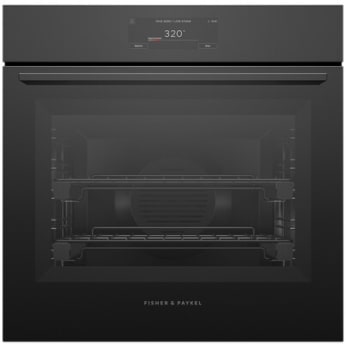

Fisher & Paykel Series 11 OS24SAMHUB5 - 24-inch Series 11 Minimal Combi-Steam Oven

Image Disclaimer

Authorized

Dealer

Fisher & Paykel Series 11

OS24SAMHUB5

24 Inch Single Smart Electric Combi-Steam Oven with 3 cu. ft. Oven Capacity, Sous Vide, Crisp Regenerate, 6.8" Touchscreen, Air Fry, SmartHQ™ App, Steam Clean, AeroTech™ Technology, Sabbath Mode, and ADA Compliant

Name: Fisher & Paykel Series 11 OS24SAMHUB5
Brand: Fisher & Paykel
SKU: OS24SAMHUB5
Price: 6899 USD

Be the first to write a review

Top Quality Store on Google

quick specs

Microwave: No

Speed Oven: No

Steam Oven: Yes

Fingerprint Resistant: No

Drawer: None

Cutout Width: 22 1/16 Inch

Cutout Depth: 21 5/8 Inch

Cutout Height: 22 13/16 Inch

Capacity: 3 Cu. Ft.

Fast Preheat: Yes

Convection Type: True European

Steam Clean: Yes

Glide Rack(s): Yes

Temperature Probe: Yes

Undercounter Installable: Yes

Warranty Terms: 2 years

^$6,899^.00

Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information

Brand: Fisher & Paykel

Series: Series 11

Model: OS24SAMHUB5

Warranty Terms: 2 years

Appearance

Fuel Type: Electric

Style: Single

Design Style: Minimal

Microwave: No

Speed Oven: No

Steam Oven: Yes

Door Style: Drop Down

French Door Oven: No

Color: Black Glass

Fingerprint Resistant: No

Handless: No

Control Type: Touch Sensor

Viewing Window: Yes

Drawer: None

Clock: Yes

Dimensions

Cutout Width: 22 1/16 Inch

Cutout Depth: 21 5/8 Inch

Cutout Height: 22 13/16 Inch

Exterior Width: 23 7/16 Inch

Exterior Depth: 22 1/4 Inch

Exterior Height: 23 9/16 Inch

Shabbos Compliance

Sabbath Mode: Yes

Certification: STAR-K

Smart

WiFi: Yes

Bluetooth: No

Google Home: Yes

Remote Control: Yes

Remote Monitoring: Yes

App Integration: SmartHQ

Smart Accessory Required: No

AI Technology: No

Capacity

Capacity: 3 Cu. Ft.

Oven Racks: 2

Oven Features

Digital Temperature Display: Yes

Timer: Yes

Delay Bake: Yes

Fast Preheat: Yes

Convection: Yes

Convection Type: True European

Self-Cleaning Type: Steam

Steam Clean: Yes

Glide Rack(s): Yes

Temperature Probe: Yes

Broiler: Yes

Broiler Element Location: Top

Interior Oven Light: Yes

Oven Camera: No

Removable Door: Yes

Air Fry: Yes

Sous Vide: Yes

Push to Open: No

Soft Close: Yes

Steam Assist: Yes

Plumbed: No

Technical Details

ADA Compliant: Yes

Undercounter Installable: Yes

Approved for Outdoor Use: No

Wattage: 3,200 Watts

LP Conversion: No

Amps: 20

Voltage: 240/208 Volts

Description
Specifications
Features
Reviews

Description

24 Inch Single Smart Electric Combi-Steam Oven with 3 cu. ft. Oven Capacity
The Fisher & Paykel OS24SAMHUB5 is a 24-inch Series 11 Minimal Combi-Steam Oven that combines steam and convection cooking for precise, versatile results. With multiple cooking functions, guided cooking programs, and a sleek minimal design, it provides convenient cooking flexibility while integrating seamlessly into modern kitchens.

Specifications

Accessories (included)

Descale solution:

2 sachets, Part 580925

Full extension sliding shelves:

Large steam dish:

Multi-functional Air fry tray:

Perforated large steam dish:

Perforated small steam dish:

Roasting dish:

Wired temperature sensor:

Capacity

Shelf positions:

Total capacity:

3 cu. ft.

Usable capacity:

2.5 cu. ft.

Water tank capacity:

Cleaning

Acid resistant graphite enamel:

Yes

Descale cycle:

Yes

Drying cycle:

Yes

Removable oven door:

Yes

Removable side ladders:

Yes

Removable water tank:

Yes

Steam clean (oven):

Yes

Connected Features

Alerts and notifications:

Yes

Education and onboarding:

Yes

Monitoring:

Yes

Remote operation:

Yes

Software updates:

Yes

Controls

Adjustable audio and display settings:

Yes

Audio feedback:

Yes

Automatic cooking/minute timer:

Yes

Automatic pre-set temperatures:

Yes

Celsius/Fahrenheit temperature:

Yes

Delay start:

Yes

Electronic oven control:

Yes

Guided touchscreen cooking:

Yes

Interface type:

6.8" touchscreen

Internal Light:

Yes

Intuitive touchscreen display:

Yes

Multi-language display:

True

Sabbath mode with Star K certification:

Yes

Smart appliance:

Yes

Soft close doors:

Yes

Voice control:

Yes

Wireless temperature sensor compatible:

Yes

Functions

Aero Broil:

Yes

Aero™ Bake:

Yes

Air fry:

Yes

Bake:

Yes

Classic bake:

Yes

Classic fan:

Yes

Crisp regenerate:

Yes

Eco slow cook:

Yes

Maxi Broil:

Yes

Number of functions:

Roast:

Yes

Slow cook:

Yes

Sous vide:

Yes

Steam:

Yes

Steam regenerate:

Yes

True Aero:

Yes

True Aero + High steam:

Yes

True Aero + Low steam:

Yes

True Aero + Medium steam:

Yes

Vent bake:

Yes

Performance

ActiveVent™ system:

Yes

AeroTech™ technology:

Yes

Automatic rapid pre-heat:

Yes

Broil power:

3000 W

Method Cooking:

Yes

Steam Assist:

Yes

SteamTechnology:

Yes

Temperature range:

95°F - 445°F

Safety

ADA compliant:

Yes

Control panel key lock:

Yes

Power Requirements

Connection type:

Hard-wired

Dedicated circuit:

20 A

Rated power:

3200 / 4200 W

Supply frequency:

60 Hz

Supply voltage:

208 / 240 V

Product Dimensions

Width:

23 7/16"

Depth:

22 1/4"

Height:

23 9/16"

Features

3.0 cu. ft. Capacity

Provides generous cooking space with six shelf positions for preparing multiple dishes.

Combi-Steam Cooking

Combines steam and convection cooking, or allows each method to be used independently, providing precise control of heat, humidity, and airflow.

Method-Led Cooking

Precisely calibrated cooking methods help automatically optimize heat, temperature, and humidity for different foods and cooking techniques.

6.8" Touchscreen

Large intuitive touchscreen provides easy access to cooking functions, guided cooking, and settings.

19 Cooking Functions

Offers 19 functions, including True Aero, Steam, Air Fry, Sous Vide, Roast, Bake, Broil, Crisp Regenerate, and Steam Regenerate.

12 Cooking Methods

Provides 12 methods including Air Fry, Bake, Broil, Defrost, Proof, Regenerate, Reverse Sear, Roast, Slow Cook, Sous Vide, Steam, and Warm.

Sous Vide

Provides precise temperature and humidity control for gentle, consistent cooking while helping preserve moisture and flavor.

Air Fry

Uses circulating hot air with the included Air Fry Tray to create crisp, golden results.

Steam Cooking

Creates a precisely controlled steam environment to help preserve moisture, texture, flavor, and nutrients.

True Aero™ Convectio

Circulates heated air evenly throughout the oven cavity for consistent cooking results.

True Aero + Steam

Combines convection airflow with low, medium, or high steam levels for greater cooking control.

ActiveVent™ System

Manages humidity within the oven to help maintain appropriate moisture levels during cooking.

AeroTech™ Technology

Uses optimized airflow and heat distribution to promote even cooking throughout the oven cavity.

Crisp Regenerate

Uses controlled heat and moisture to refresh foods such as bread, pastries, and pizza while helping restore crispness.

Steam Regenerate

Uses steam to gently reheat food while helping retain moisture and texture.

47 fl. oz. Water Tank

Large water reservoir supports steam cooking while reducing the need for frequent refilling.

Steam Clean

Uses steam to loosen food residue and make routine oven cleaning easier.

Dry Cycle

Removes residual moisture from the oven cavity after steam cooking to help keep the interior dry.

Wi-Fi & SmartHQ™

Connects to the SmartHQ app for remote monitoring, control of key functions, notifications, and software updates.

Temperature Sensor

Included wired temperature sensor monitors food temperature in real time for more precise cooking results.

Full-Extension Sliding Shelves

Two included sliding shelves extend outward for easier and safer access to cookware.

Multi-Functional Air Fry Tray

Promotes airflow around food for crisp and evenly cooked Air Fry results.

Sabbath Mode

Includes Sabbath Mode with Star-K certification.

Soft-Close Door

Door closes smoothly and quietly for convenient everyday use.

Minimal Design

Features a refined black glass finish, streamlined handle, hidden water tank, and clean minimal styling.
