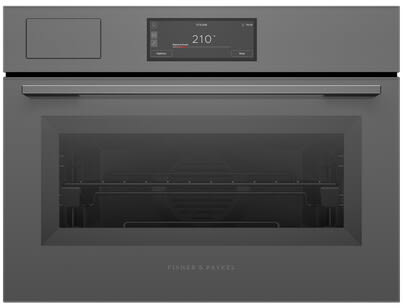

Fisher & Paykel Series 9 OS24NAMVUG5 - 24-Inch Series 9 Minimal Compact Combi-Steam Oven

Image Disclaimer

Authorized

Dealer

Fisher & Paykel Series 9

OS24NAMVUG5

24 Inch Smart Combi-Steam Wall Oven with 1.9 cu. ft. Total Capacity, 19 Cooking Functions, Air Fry, Sous Vide, 6.8" Touchscreen, Steam Clean, Sabbath Mode and ADA Compliant: Minimal Grey

Be the first to write a review

Top Quality Store on Google

quick specs

Microwave: No

Speed Oven: No

Steam Oven: Yes

Fingerprint Resistant: No

Drawer: None

Cutout Width: 22 1/16 Inch

Cutout Depth: 21 5/8 Inch

Cutout Height: 17 5/16 Inch

Capacity: 1.9 Cu. Ft.

Fast Preheat: Yes

Convection Type: True European

Self-Cleaning: No

Steam Clean: Yes

Glide Rack(s): Yes

Temperature Probe: Yes

Undercounter Installable: Yes

Warranty Terms: 2 years

Color: Minimal Grey

Minimal Black

OS24NAMVUB5

$5,699.00

Minimal Grey

OS24NAMVUG5

$5,699.00

^$5,699^.00

Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information

Brand: Fisher & Paykel

Series: Series 9

Model: OS24NAMVUG5

Warranty Terms: 2 years

Appearance

Fuel Type: Electric

Style: Single

Design Style: Minimal

Microwave: No

Speed Oven: No

Steam Oven: Yes

Door Style: Drop Down

French Door Oven: No

Color: Minimal Grey

Trim Color: Minimal Grey

Handle Color: Minimal Grey

Fingerprint Resistant: No

Handless: No

Control Type: Touch Sensor

Viewing Window: Yes

Drawer: None

Clock: Yes

Dimensions

Cutout Width: 22 1/16 Inch

Cutout Depth: 21 5/8 Inch

Cutout Height: 17 5/16 Inch

Exterior Width: 23 7/16 Inch

Exterior Depth: 22 1/4 Inch

Exterior Height: 18 Inch

Shabbos Compliance

Sabbath Mode: Yes

Certification: STAR-K

Smart

WiFi: Yes

Bluetooth: No

Google Home: Yes

Remote Control: Yes

Remote Monitoring: Yes

App Integration: SmartHQ

Smart Accessory Required: No

AI Technology: No

Capacity

Capacity: 1.9 Cu. Ft.

Oven Racks: 2

Oven Features

Digital Temperature Display: Yes

Timer: Yes

Delay Bake: Yes

Fast Preheat: Yes

Convection: Yes

Convection Type: True European

Self-Cleaning: No

Self-Cleaning Type: Steam

Steam Clean: Yes

Glide Rack(s): Yes

Temperature Probe: Yes

Broiler: Yes

Broiler Element Location: Top

Interior Oven Light: Yes

Oven Camera: No

Removable Door: Yes

Air Fry: Yes

Sous Vide: Yes

Push to Open: No

Soft Close: Yes

Steam Assist: Yes

Plumbed: No

Technical Details

ADA Compliant: Yes

Undercounter Installable: Yes

Approved for Outdoor Use: No

Wattage: 4,200 Watts

LP Conversion: No

Amps: 20

Voltage: 240/208 Volts

Description
Specifications
Features
Reviews

Description

24 Inch Smart Combi-Steam Wall Oven with 1.9 cu. ft. Total Capacity
Create everything from delicate steamed dishes to crisp, golden favorites with this Fisher & Paykel Series 9 Minimal oven. Its 19 cooking functions bring steam, convection, Air Fry and Sous Vide into one compact appliance. Guided cooking on the 6.8" touchscreen helps simplify meal preparation, while SmartHQ™ connectivity adds remote convenience. A refined Minimal design, soft-close door and full-extension sliding shelf complete an oven made for versatile everyday cooking.

Specifications

Overview

Brand:

Fisher & Paykel

Series:

Series 9

Style:

Minimal

Finish:

Minimal Grey

Product Type:

Compact Combi-Steam Wall Oven

Fuel Type:

Electric

Nominal Width:

24"

Door Design:

Handle

Capacity

Total Capacity:

1.9 cu. ft.

Usable Capacity:

1.6 cu. ft.

Shelf Positions:

Water Tank Capacity:

23 fl. oz.

Cooking Functions

Number of Functions:

Functions:

Aero Broil, Aero™ Bake, Air Fry, Bake, Classic Bake, Classic Fan, Crisp Regenerate, Eco Slow Cook, Maxi Broil, Roast, Slow Cook, Sous Vide, Steam, Steam Regenerate, True Aero, True Aero + High Steam, True Aero + Low Steam, True Aero + Medium Steam, Vent Bake

Performance

ActiveVent™ System:

Yes

AeroTech™ Technology:

Yes

Automatic Rapid Preheat:

Yes

Steam Assist:

Yes

Method Cooking:

Yes

Broil Power:

3000 W

Temperature Range:

95°F–445°F

Controls

Interface:

6.8" Touchscreen

Guided Cooking:

Yes

Cooking Timer:

Yes

Minute Timer:

Yes

Delay Start:

Yes

Temperature Units:

Celsius/Fahrenheit

Interior Light:

Yes

Multilingual Display:

Yes

Soft-Close Door:

Yes

Wireless Temperature Sensor Compatible:

Yes

Connected Features

SmartHQ™ Connectivity:

Yes

Remote Operation:

Yes

Monitoring:

Yes

Notifications:

Yes

Software Updates:

Yes

Voice Control:

Yes

Cleaning

Interior:

Acid-Resistant Graphite Enamel

Steam Clean:

Yes

Descale Cycle:

Yes

Drying Cycle:

Yes

Removable Door:

Yes

Removable Side Ladders:

Yes

Removable Water Tank:

Yes

Included Accessories

Descale Solution:

2 Sachets

Full-Extension Sliding Shelf:

Large Steam Dish:

Multifunctional Air Fry Tray:

Perforated Large Steam Dish:

Perforated Small Steam Dish:

Roasting Dish:

Wire Shelf:

Wired Temperature Sensor:

Electrical Requirements

Connection:

Hardwired

Dedicated Circuit:

20 A

Rated Power:

3200 / 4200 W

Supply Voltage:

208 / 240 V

Supply Frequency:

60 Hz

Product Dimensions

Width:

23 7/16"

Depth:

22 1/4"

Height:

18"

Safety and Compliance

ADA Compliant:

Yes

Control Panel Key Lock:

Yes

Sabbath Mode:

Yes, with STAR-K Certification

Features

Steam and Convection Cooking

Choose steam, convection or combined cooking to balance moisture and browning.

19 Cooking Functions

Air Fry, Sous Vide, Steam and Crisp Regenerate offer flexibility for fresh meals and reheated favorites.

6.8" Touchscreen

Explore guided cooking and adjust oven settings through an intuitive touchscreen interface.

AeroTech™ and ActiveVent™

Control heat distribution and oven moisture to suit a wide variety of dishes.

SmartHQ™ Connectivity

Use connected features for remote operation, monitoring, notifications and software updates.

Wired Temperature Sensor

The included sensor helps you track food temperature during cooking.

23 fl. oz. Water Tank

The removable tank supports steam cooking and makes refilling convenient.

Steam Clean

Dedicated steam cleaning, drying and descaling cycles help maintain the oven.

Refined Minimal Design

A streamlined handle, soft-close door and full-extension sliding shelf combine style with everyday practicality.

Key Features

ActiveVent™

Automatically manages steam and airflow during and after cooking to optimize performance, enhance cooking results, and promote safer operation.

AeroTech™ Technology

Evenly circulates heat and air throughout the oven, delivering consistent cooking results from top to bottom for perfectly finished dishes every time.

Fisher & Paykel Combi Steam Ovens

Crafted for the home chef, our Combination Steam Oven makes it easy to prepare healthy, flavorful meals with ease.

SmartHQ™ App

Take control of your appliance from anywhere with the SmartHQ® App, allowing you to remotely monitor status, adjust settings, and manage key functions directly from your smartphone for added convenience and peace of mind.
